Fenes

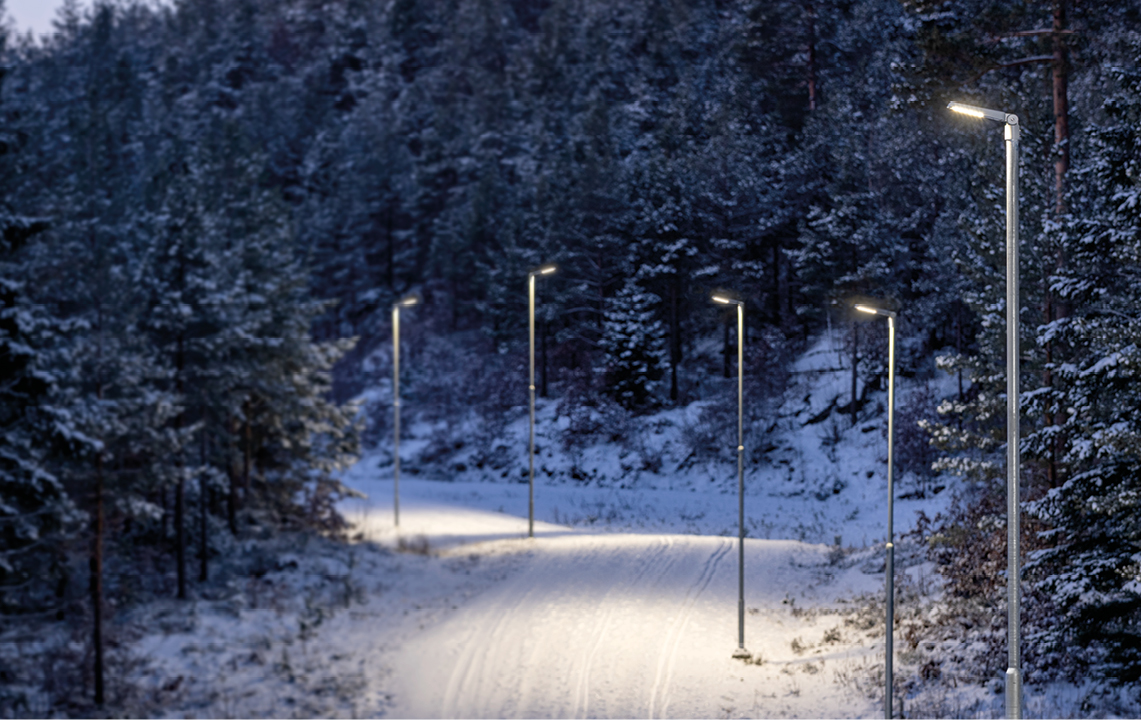

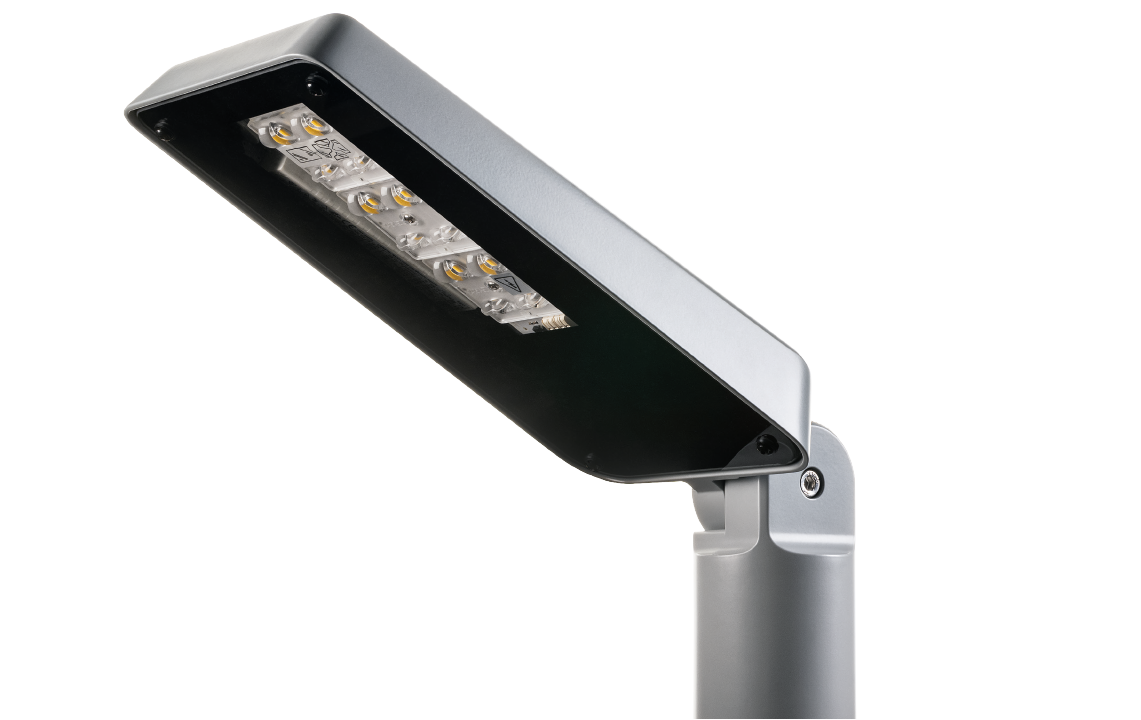

Fenes is an LED luminaire for mounting on pole or arm, suitable for sports tracks, residential areas, parking lots and similar. Features a multi-adapter which fits both poles Ø60 and arms Ø42/48 and is adjustable in steps of 5°.

Fenes is ideal for replacing old 125W HQL and 70W NAV luminaires with energy saving LED technology. It is a compact and tough luminaire in die-cast aluminium and tempered glass front. It is delivered complete with 8 m cable.

Article list

Fenes

Outdoor Direct Pole - Side Top (Ø42-48/Ø60) SDCM: 3 Class II IK08 IP66 Ra>70 L95/B50> 100,000

Filters

Module

Colour temperature

System wattage

Lumen

Control gear

Filters

						Others	Tools
212644	Lens 1	3000K	35W	3790lm	DALI-2	108 lm/W, L379 x W168 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212631	Lens 1	3000K	20W	2250lm	On/Off	113 lm/W, L370 x W170 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212632	Lens 1	3000K	35W	3790lm	On/Off	108 lm/W, L370 x W170 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212638	Lens 2	3000K	35W	4380lm	On/Off	125 lm/W, L370 x W170 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212647	Lens 1	4000K	35W	4080lm	DALI-2	117 lm/W, L379 x W168 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212634	Lens 1	4000K	20W	2420lm	On/Off	121 lm/W, L370 x W170 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212635	Lens 1	4000K	35W	4080lm	On/Off	117 lm/W, L370 x W170 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212641	Lens 2	4000K	35W	4710lm	On/Off	135 lm/W, L370 x W170 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

						Others	Tools
212644	Lens 1	3000K	35W	3790lm	DALI-2	108 lm/W, L379 x W168 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212631	Lens 1	3000K	20W	2250lm	On/Off	113 lm/W, L370 x W170 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212632	Lens 1	3000K	35W	3790lm	On/Off	108 lm/W, L370 x W170 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212638	Lens 2	3000K	35W	4380lm	On/Off	125 lm/W, L370 x W170 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212647	Lens 1	4000K	35W	4080lm	DALI-2	117 lm/W, L379 x W168 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
212634	Lens 1	4000K	20W	2420lm	On/Off	121 lm/W, L370 x W170 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212635	Lens 1	4000K	35W	4080lm	On/Off	117 lm/W, L370 x W170 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)
212641	Lens 2	4000K	35W	4710lm	On/Off	135 lm/W, L370 x W170 x H145, Cable 2x1.0mm² 8m, H05RN-F	Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab) EPD (PDF) (Opens in new tab)

Sorry, we couldn’t find what you are looking for.

Accessories

Article code	Description	Dimensions	Tools
8249043943	Galvanized Reducer part from Ø76 to Ø60 Steel	L230 x W98 x H230	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
623268	Fenes/Fenes Maxi Grey Corner bracket Aluminium	L130 x W127 x H154	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
623269	Fenes/Fenes Maxi Grey Wall bracket Aluminium	L130 x W110 x H92	Info Mounting instruction (PDF) (Opens in new tab) Info Mounting instruction (PDF) (Opens in new tab)
