Fevik 1000/2000 + 1500/2500

Fevik White 1000/2000 3000K Ra>80 Trailing edge

Article code
623257
EAN
7021986232578
Replaces
611233, 611231
Back to articlelist

Overview

Wattage
8W/17W
Efficacy
99/96lm/W
Lumen
790/1630lm
IP Class
IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • dipswitch
  • ik10
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 623257 Eulumdat file (ldt) 7021986232578_Fevik White 1630lm 3000K Ra80 Trailing edge dimming Eulumdat file (ldt) 7021986232578_Fevik White 790lm 3000K Ra80 Trailing edge dimming

See more

Dialux file (uld) 7021986232578_Fevik White 1630lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986232578_Fevik White 790lm 3000K Ra80 Trailing edge dimming Relux file (rolf) 7021986232578_Fevik_White_1630lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986232578_Fevik_White_790lm_3000K_Ra80_Trailing_edge_dimming EPD NEPD-8728-8410_Fevik-1000-2000 Revit file - Generic Fevik 1000_2000 - 1500_2500 - generic Revit file - Face Based Fevik 1000_2000 + 1500_2500 - face based Mounting instruction Fevik 1000 2000_User Manual CE Declaration Fevik

How to specify

Text copied to clipboard

Fevik White 1000/2000 3000K Ra>80 Trailing edge, Article code: 623257, EAN: 7021986232578, IP65, IK10, Electrical: Wattage: 8W/17W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 50, B16: 80, C10: 50, C16: 80, Light technic: Type of light source: LED, Luminous flux: 790/1630lm, Efficacy: 99/96lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Reflector, Beam angle: 100°, ULOR (<1%): Yes, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP65, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 223, Height (mm) H: 110, Depth (D): 276, Weight (kg) gross/net: 3.5 / 3.3, Packaging: Packaging dimensions (mm): 300 x 233 x 120

Electrical

Wattage
8W/17W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 50, B16: 80, C10: 50, C16: 80

Light technic

Type of light source
LED
Luminous flux
790/1630lm
Efficacy
99/96lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000

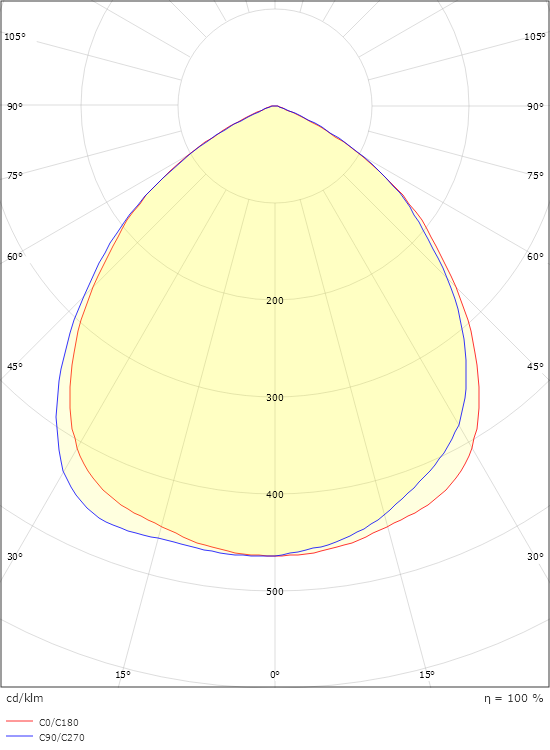

Light distribution
Direct
Optic
Reflector
Beam angle
100°
ULOR (<1%)
Yes

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP65

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Outdoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
223
Height (mm) H
110
Depth (D)
276
Weight (kg) gross/net
3.5 / 3.3

Packaging

Packaging dimensions (mm)
300 x 233 x 120
