Fevik 1000/2000 + 1500/2500

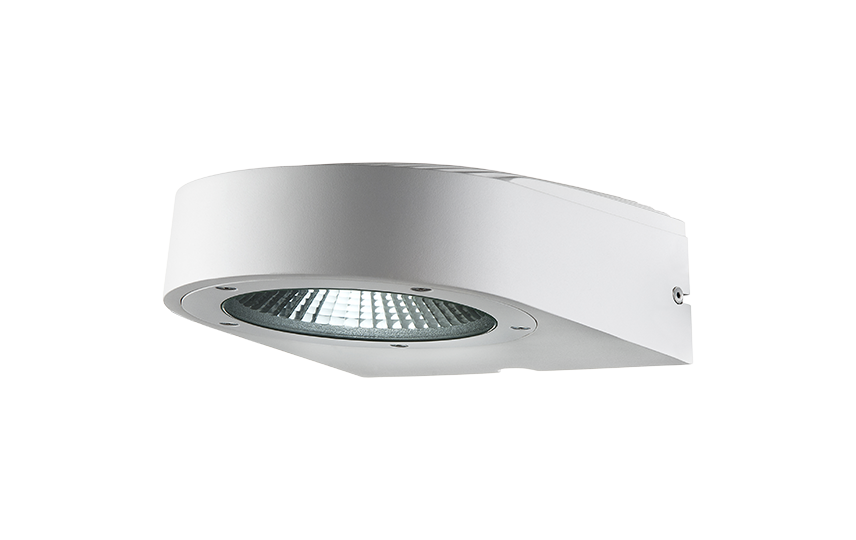

Fevik White 1000/2000 4000K Ra>80 Trailing edge

Article code
623258
EAN
7021986232585
Back to articlelist

Overview

Wattage
8W/17W
Efficacy
106/102lm/W
Lumen
850/1740lm
IP Class
IP65
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • dipswitch
  • ik10
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 623258 EPD NEPD-8728-8410_Fevik-1000-2000 Revit file - Generic Fevik 1000_2000 - 1500_2500 - generic

See more

Revit file - Face Based Fevik 1000_2000 + 1500_2500 - face based Mounting instruction Fevik 1000 2000_User Manual CE Declaration Fevik

How to specify

Text copied to clipboard

Fevik White 1000/2000 4000K Ra>80 Trailing edge, Article code: 623258, EAN: 7021986232585, IP65, IK10, Electrical: Wattage: 8W/17W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 50, B16: 80, C10: 50, C16: 80, Light technic: Type of light source: LED, Luminous flux: 850/1740lm, Efficacy: 106/102lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Reflector, Beam angle: 100°, ULOR (<1%): Yes, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP65, Energy and approvals: Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 223, Height (mm) H: 110, Depth (D): 276, Weight (kg) gross/net: 3.5 / 3.3, Packaging: Packaging dimensions (mm): 300 x 233 x 120

Electrical

Wattage
8W/17W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 50, B16: 80, C10: 50, C16: 80

Light technic

Type of light source
LED
Luminous flux
850/1740lm
Efficacy
106/102lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000
Light distribution
Direct
Optic
Reflector
Beam angle
100°
ULOR (<1%)
Yes

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP65

Energy and approvals

Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Outdoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
223
Height (mm) H
110
Depth (D)
276
Weight (kg) gross/net
3.5 / 3.3

Packaging

Packaging dimensions (mm)
300 x 233 x 120
