Fevik

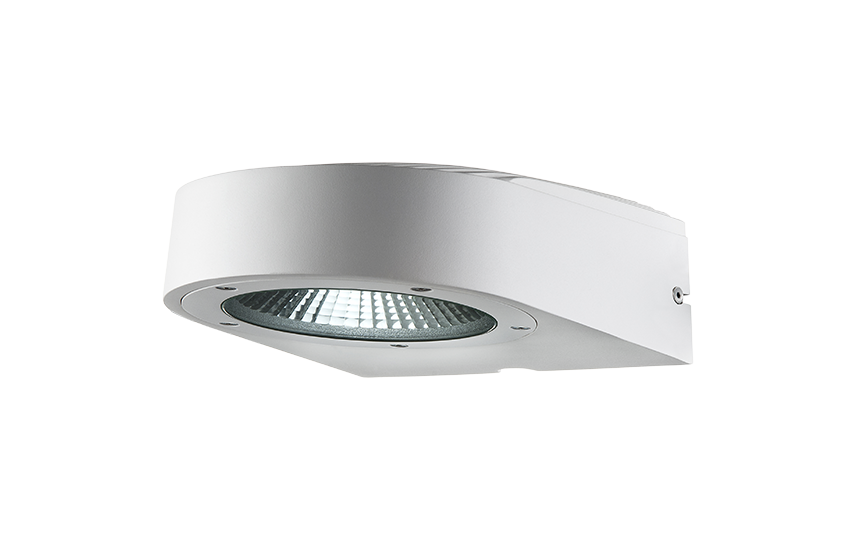

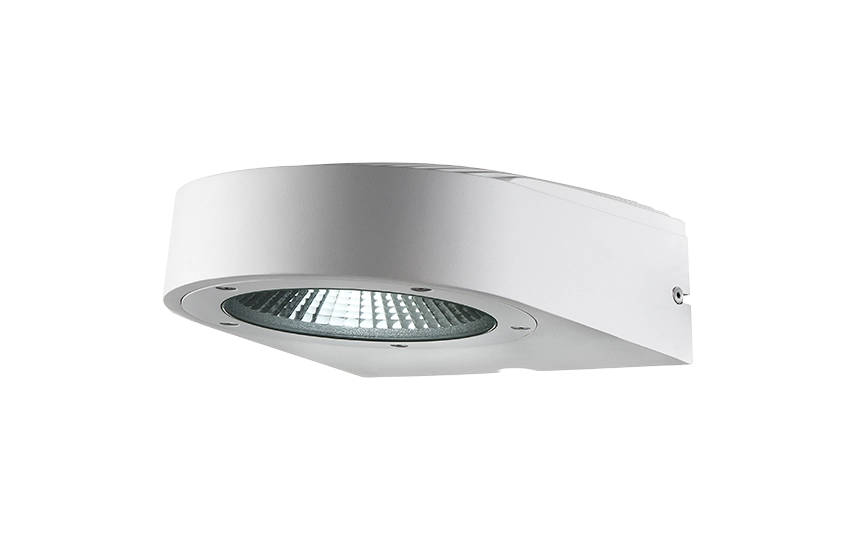

Fevik 3000 White 2535lm 3000K Ra>80 Twilight

Article code
611226
EAN
7021986112269
Back to articlelist

Overview

Efficacy
82 lm/W
Lumen
2535lm
IP Class
IP44
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L70/B50>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • d
  • ik10
  • ip44
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 611226 Eulumdat file (ldt) 7021986112269_Fevik Twilight 3000 White 31W LED 3000K Ra80-39778 Dialux file (uld) 7021986112269_Fevik Twilight 3000 White 31W LED 3000K Ra80

See more

Relux file (rolf) 7021986112269_Fevik_3000_White_Twilight_2535lm_3000K_Ra_80_On_Off Mounting instruction Fevik Mounting Instruction

How to specify

Text copied to clipboard

Fevik 3000 White 2535lm 3000K Ra>80 Twilight, Article code: 611226, EAN: 7021986112269, IP44, IK10, Electrical: System wattage: 31W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 53, B16: 84, C10: 53, C16: 84, Light technic: Type of light source: LED, Luminous flux: 2535lm, Efficacy: 82 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B50>50,000, Light distribution: Direct, Optic: Glass Clear, Beam angle: 100°, ULOR (<1%): Yes, Control/Dimming: Type: Twilight, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP44, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Outdoor, Module: 3000, Connection: Screwless terminal block, Dimensions: Width (mm) W: 223, Height (mm) H: 110, Depth (D): 276, Weight (kg) gross/net: 3.5 / 3.4, Packaging: Packaging dimensions (mm): 300 x 233 x 120

Electrical

System wattage
31W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 53, B16: 84, C10: 53, C16: 84

Light technic

Type of light source
LED
Luminous flux
2535lm
Efficacy
82 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B50>50,000

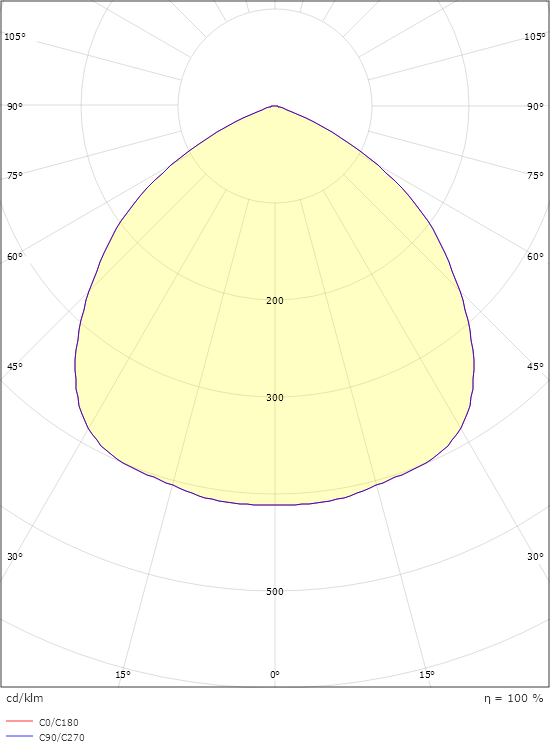

Light distribution
Direct
Optic
Glass Clear
Beam angle
100°
ULOR (<1%)
Yes

Control/Dimming

Type
Twilight

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP44

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Outdoor
Module
3000
Connection
Screwless terminal block

Dimensions

Width (mm) W
223
Height (mm) H
110
Depth (D)
276
Weight (kg) gross/net
3.5 / 3.4

Packaging

Packaging dimensions (mm)
300 x 233 x 120
