Langfoss

Langfoss Graphite 22130lm 4000K Ra>70 On/Off

Article code
641937
EAN
7021986419375
Replaces
641905
Back to articlelist

Overview

Efficacy
140 lm/W
Lumen
22130lm
IP Class
IP66
Colour temperature
4000K
Colour rendering (Ra)
Ra>70
Lifetime
50,000 L90/B10>
Mounting
Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik08
  • ip66
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 641937 Revit file - Generic Langfoss - generic Revit file - Face Based Langfoss - face based

See more

Eulumdat file (ldt) 7021986419375_Langfoss Graphite 22130lm 4000K Ra70 OnOff Dialux file (uld) 7021986419375_Langfoss Graphite 22130lm 4000K Ra70 OnOff Relux file (rolf) 7021986419375_Langfoss_Graphite_22130lm_4000K_Ra_70_On_Off EPD NEPD-5844-5123_Langfoss-22000 Mounting instruction Langfoss_User Manual CE Declaration Langfoss

How to specify

Text copied to clipboard

Langfoss Graphite 22130lm 4000K Ra>70 On/Off, Article code: 641937, EAN: 7021986419375, IP66, IK08, Electrical: System wattage: 158W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 2, B16: 4, C10: 4, C16: 6, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 22130lm, Efficacy: 140 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>70, MacAdams factor: SDCM: 3, Lifetime: L90/B10>50,000, Lifetime: L80/B20>75.000, Light distribution: Asymmetric, Optic: Lens, ULOR (<1%): Yes, up to 21° tilt angle, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP66, Surge protection: Integrated (min. 4 kV), Materials and finish: Housing: Die-cast aluminium, Colour: Graphite, Optics: Tempered glass, Mounting/Connection: Mounting: Indoor / Outdoor, Cable: Cable 3x1mm² 2m, H07RN-F, Wind projected area: 0,1245m² - Max 16,2 kg, Dimensions: Length (mm) L: 478, Width (mm) W: 314, Height (mm) H: 85, Weight (kg) gross/net: 9.9 / 8.7, Packaging: Packaging dimensions (mm): 508 x 325 x 93

Electrical

System wattage
158W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 2, B16: 4, C10: 4, C16: 6

Light technic

Type of light source
LED
Light source included
Yes
Luminous flux
22130lm
Efficacy
140 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>70
MacAdams factor
SDCM: 3
Lifetime
L90/B10>50,000
Lifetime
L80/B20>75.000

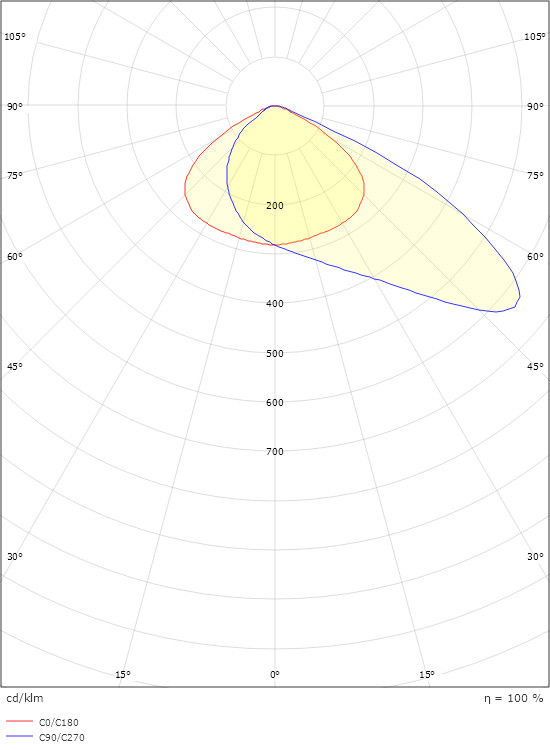

Light distribution
Asymmetric
Optic
Lens
ULOR (<1%)
Yes, up to 21° tilt angle

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP66
Surge protection
Integrated (min. 4 kV)

Materials and finish

Housing
Die-cast aluminium
Colour
Graphite
Optics
Tempered glass

Mounting/Connection

Mounting
Indoor / Outdoor
Cable
Cable 3x1mm² 2m, H07RN-F
Wind projected area
0,1245m² - Max 16,2 kg

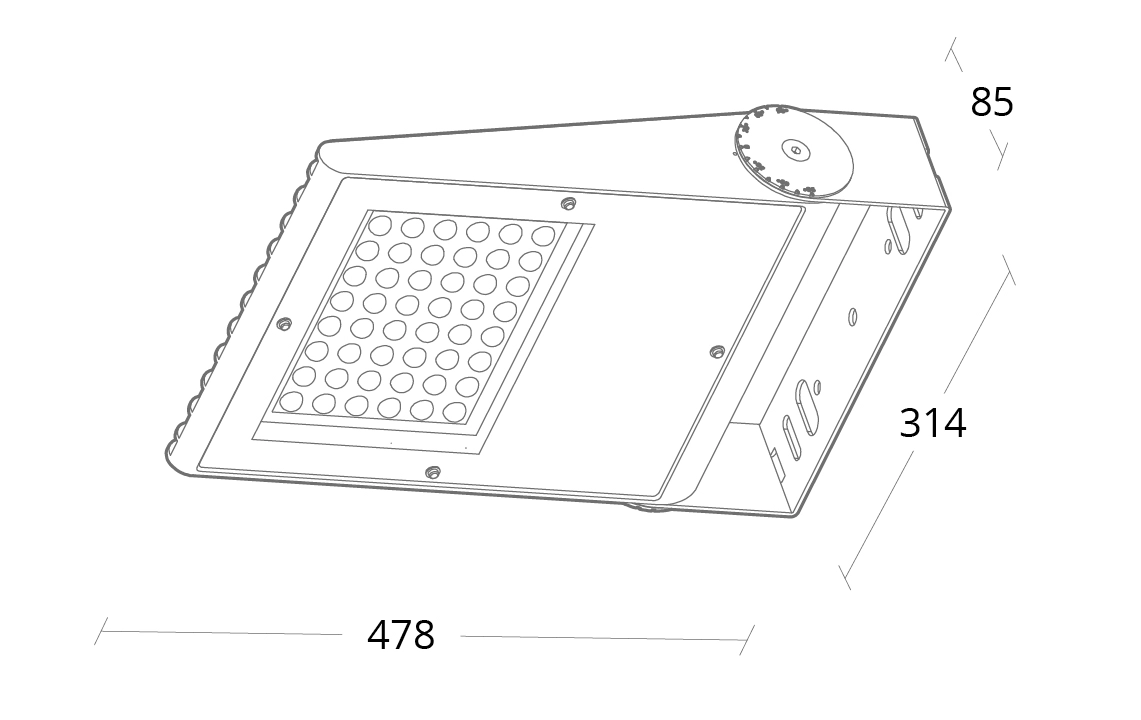

Dimensions

Length (mm) L
478
Width (mm) W
314
Height (mm) H
85
Weight (kg) gross/net
9.9 / 8.7

Packaging

Packaging dimensions (mm)
508 x 325 x 93
