Place

Place Black 2410lm 3000K Ra>80 DYNADIM

Article code
8246090627
EAN
5703821172097
Back to articlelist

Overview

Efficacy
115 lm/W
Lumen
2410lm
IP Class
IP66
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L90/B10>
Mounting
Post - top (Ø60mm), Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik10
  • ip66
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 8246090627 Eulumdat file (ldt) 5703821172097_Place Black 2410lm 3000K Ra80 DYNADIM Pr.2 Sweden Dialux file (uld) 5703821172097_Place Black 2410lm 3000K Ra80 DYNADIM Pr.2 Sweden

See more

Relux file (rolf) 5703821172097_Place_Black_2410lm_3000K_Ra_80_DYNADIM_Pr.2_Sweden EPD NEPD-8247-7917_Place Revit file - Generic Place - Generic Revit file - Face Based Place Mounting instruction Place_User Manual CE Declaration Place

How to specify

Text copied to clipboard

Place Black 2410lm 3000K Ra>80 DYNADIM, Article code: 8246090627, EAN: 5703821172097, IP66, IK10, Electrical: System wattage: 21W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 10, B16: 17, C10: 16, C16: 27, Light technic: Type of light source: LED, Luminous flux: 2410lm, Efficacy: 115 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L90/B10>50,000, Lifetime: L80/B10>100,000, Light distribution: Direct, Control/Dimming: Type: DYNADIM, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP66, Surge protection: Integrated (min. 4 kV), Energy and approvals: Contains light source of energy class: C, BVB: Yes, Sunda Hus: C+, Materials and finish: Housing: Die-cast aluminium, Colour: Black (20% gloss), Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Post - top (Ø60mm), Outdoor, Cable: Cable 2x1mm² 6m, Wind projected area: 0,0775m² - Max 10 kg, Dimensions: Height (mm) H: 291, Diameter (mm) D: 600, Weight (kg) gross/net: 9.46 / 9.26, Packaging: Packaging dimensions (mm): 625 x 625 x 300

Electrical

System wattage
21W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 10, B16: 17, C10: 16, C16: 27

Light technic

Type of light source
LED
Luminous flux
2410lm
Efficacy
115 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L90/B10>50,000
Lifetime
L80/B10>100,000

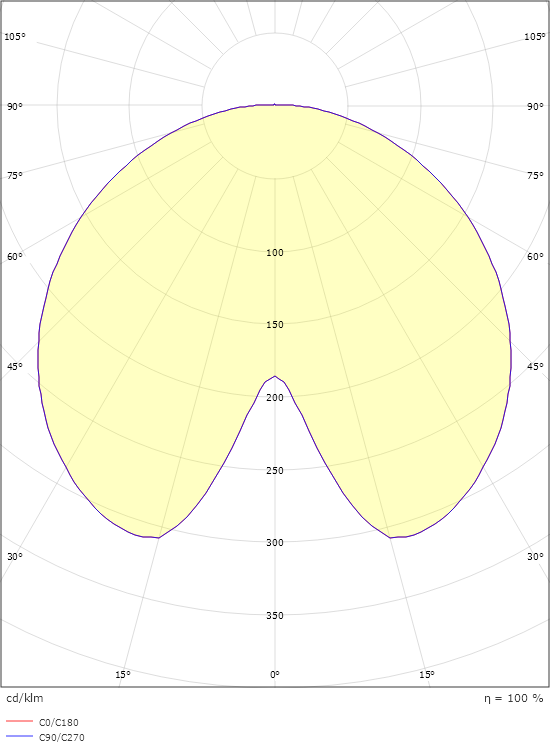

Light distribution
Direct

Control/Dimming

Type
DYNADIM

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP66
Surge protection
Integrated (min. 4 kV)

Energy and approvals

Contains light source of energy class
C
BVB
Yes
Sunda Hus
C+

Materials and finish

Housing
Die-cast aluminium
Colour
Black (20% gloss)
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Post - top (Ø60mm), Outdoor
Cable
Cable 2x1mm² 6m
Wind projected area
0,0775m² - Max 10 kg

Dimensions

Height (mm) H
291
Diameter (mm) D
600
Weight (kg) gross/net
9.46 / 9.26

Packaging

Packaging dimensions (mm)
625 x 625 x 300
