Wax

Wax Black 13° 1370/2460lm 3000K Ra>80 On/Off

Article code
8246091480
EAN
5703821173117
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Wattage
15/30W
Efficacy
91/82lm/W
Lumen
1370/2460lm
IP Class
IP66
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L90/B10>
Mounting
Pole, wall, bollard or earthing rod, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • dipswitch
  • ik07
  • ip66
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 8246091480 Mounting instruction Wax High Low_User Manual Eulumdat file (ldt) 5703821173117_Wax15W3000KRa80CDReflectorSpot13dgBlack-24974

See more

Eulumdat file (ldt) 5703821173117_Wax30W3000KRa80CDReflectorSpot13dgBlack-24986 Dialux file (uld) 5703821173117_Wax15W3000KRa80CDReflectorSpot13dgBlack Dialux file (uld) 5703821173117_Wax30W3000KRa80CDReflectorSpot13dgBlack Relux file (rolf) 5703821173117_Wax Black 13D 1370lm 3000K Ra 80 On Off Relux file (rolf) 5703821173117_Wax Black 13D 2430lm 3000K Ra 80 On Off Revit file - Generic Wax - Generic Revit file - Face Based Wax CE Declaration Wax

How to specify

Text copied to clipboard

Wax Black 13° 1370/2460lm 3000K Ra>80 On/Off, Article code: 8246091480, EAN: 5703821173117, IP66, IK07, Electrical: Wattage: 15/30W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 28, B16: 44, C10: 46, C16: 75, Light technic: Type of light source: LED, Luminous flux: 1370/2460lm, Efficacy: 91/82lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Reflector spot 13dg., Beam angle: 13°, ULOR (<1%): Yes, up to 64° tilt angle, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class II, IK Class: IK07, IP Class: IP66, Surge protection: Integrated (min. 4 kV), Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: A, Materials and finish: Housing: Die-cast aluminium, Colour: Black (20% gloss), Optics: Tempered glass, Mounting/Connection: Mounting: Pole, wall, bollard or earthing rod, Outdoor, Cable: Cable 2x1mm² 10m, Wind projected area: 0,0403m² - Max 5,3 kg, Dimensions: Height (mm) H: 268, Diameter (mm) D: 180, Weight (kg) gross/net: 4.66 / 4.46, Packaging: Packaging dimensions (mm): 275 x 275 x 275

Electrical

Wattage
15/30W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 28, B16: 44, C10: 46, C16: 75

Light technic

Type of light source
LED
Luminous flux
1370/2460lm
Efficacy
91/82lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000

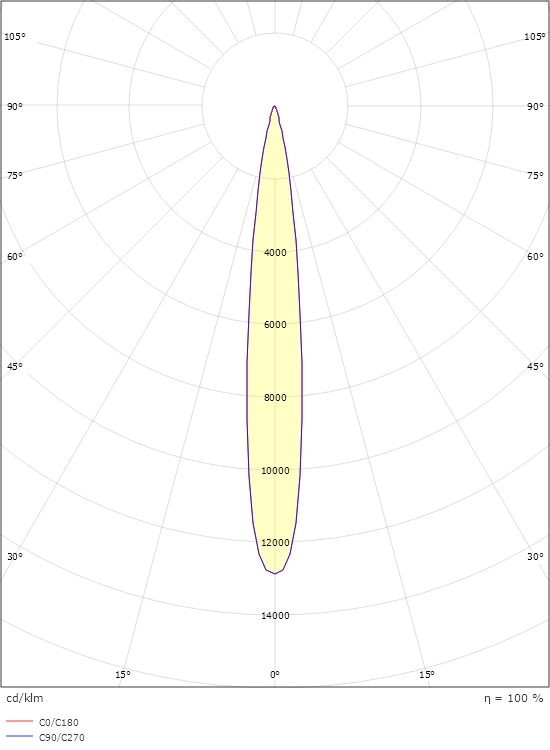

Light distribution
Direct
Optic
Reflector spot 13dg.
Beam angle
13°
ULOR (<1%)
Yes, up to 64° tilt angle

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class II
IK Class
IK07
IP Class
IP66
Surge protection
Integrated (min. 4 kV)

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
A

Materials and finish

Housing
Die-cast aluminium
Colour
Black (20% gloss)
Optics
Tempered glass

Mounting/Connection

Mounting
Pole, wall, bollard or earthing rod, Outdoor
Cable
Cable 2x1mm² 10m
Wind projected area
0,0403m² - Max 5,3 kg

Dimensions

Height (mm) H
268
Diameter (mm) D
180
Weight (kg) gross/net
4.66 / 4.46

Packaging

Packaging dimensions (mm)
275 x 275 x 275
