Herning Bollard & Pole

Herning Polehead Ø60 Grey Midi 1060/1140/1770/1920lm 3000/4000K Ra>80 Trailing edge

Article code
623981
EAN
7021986239812
Back to articlelist

Overview

Wattage
13W/25W
Efficacy
82/88/71/77lm/W
Lumen
1060/1140/1770/1920lm
IP Class
IP65
Colour temperature
3000/4000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Pole, wall, bollard or earthing rod, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • dipswitch
  • flickerfree
  • cctsw
  • ik06
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 623981 Mounting instruction Herning Bollard and Pole_User Manual EPD NEPD-8287-7949_Herning-Midi-Polehead CE Declaration CE-UKCA260218A_Herning Bollard Relux file (rolf) 7021986239812_Herning_Bollard_Midi_Grey_1060lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239812_Herning_Bollard_Midi_Grey_1140lm_4000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239812_Herning_Bollard_Midi_Grey_1770lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239812_Herning_Bollard_Midi_Grey_1920lm_4000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239812_Herning_Midi_D60_Grey_Polehead_1060lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239812_Herning_Midi_D60_Grey_Polehead_1140lm_4000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239812_Herning_Midi_D60_Grey_Polehead_1770lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239812_Herning_Midi_D60_Grey_Polehead_1920lm_4000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239812_Herning_Pole_Midi_Grey_1060lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239812_Herning_Pole_Midi_Grey_1140lm_4000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239812_Herning_Pole_Midi_Grey_1770lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239812_Herning_Pole_Midi_Grey_1920lm_4000K_Ra80_Trailing_edge_dimming Eulumdat file (ldt) 7021986239812_Herning Midi D60 Grey Polehead 1060lm 3000K Ra80 Trailing edge dimming Eulumdat file (ldt) 7021986239812_Herning Midi D60 Grey Polehead 1140lm 4000K Ra80 Trailing edge dimming Eulumdat file (ldt) 7021986239812_Herning Midi D60 Grey Polehead 1770lm 3000K Ra80 Trailing edge dimming Eulumdat file (ldt) 7021986239812_Herning Midi D60 Grey Polehead 1920lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239812_Herning Bollard Midi Grey 1060lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239812_Herning Bollard Midi Grey 1140lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239812_Herning Bollard Midi Grey 1770lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239812_Herning Bollard Midi Grey 1920lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239812_Herning Midi D60 Grey Polehead 1060lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239812_Herning Midi D60 Grey Polehead 1140lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239812_Herning Midi D60 Grey Polehead 1770lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239812_Herning Midi D60 Grey Polehead 1920lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239812_Herning Pole Midi Grey 1060lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239812_Herning Pole Midi Grey 1140lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239812_Herning Pole Midi Grey 1770lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239812_Herning Pole Midi Grey 1920lm 4000K Ra80 Trailing edge dimming Revit file - Generic Herning Bollard Midi 0,9m - generic Revit file - Generic Herning Pole Midi 2,5m - generic Revit file - Face Based Herning Bollard Midi 0,9m - face based Revit file - Face Based Herning Pole Midi 2,5m - face based

How to specify

Text copied to clipboard

Herning Polehead Ø60 Grey Midi 1060/1140/1770/1920lm 3000/4000K Ra>80 Trailing edge, Article code: 623981, EAN: 7021986239812, IP65, IK06, Electrical: Wattage: 13W/25W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 23, B16: 36, C10: 37, C16: 60, Light technic: Type of light source: LED, Luminous flux: 1060/1140/1770/1920lm, Efficacy: 82/88/71/77lm/W, Colour temperature: 3000/4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Glass, UGR: UGR<25, Photobiological safety: RG 1, ULOR (<1%): Yes, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK06, IP Class: IP65, Energy and approvals: Contains light source of energy class: E, Materials and finish: Housing: Aluminium, Mounting/Connection: Mounting: Pole, wall, bollard or earthing rod, Outdoor, Module: Ø60, Cable: Cable 2x1mm² 3m, Dimensions: Length (mm) L: 400, Width (mm) W: 240, Height (mm) H: 189, Weight (kg) gross/net: 3.64 / 2.915, Packaging: Packaging dimensions (mm): 412 x 250 x 240

Electrical

Wattage
13W/25W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 23, B16: 36, C10: 37, C16: 60

Light technic

Type of light source
LED
Luminous flux
1060/1140/1770/1920lm
Efficacy
82/88/71/77lm/W
Colour temperature
3000/4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000
Light distribution
Direct
Optic
Glass
UGR
UGR<25
Photobiological safety
RG 1
ULOR (<1%)
Yes

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK06
IP Class
IP65

Energy and approvals

Contains light source of energy class
E

Materials and finish

Housing
Aluminium

Mounting/Connection

Mounting
Pole, wall, bollard or earthing rod, Outdoor
Module
Ø60
Cable
Cable 2x1mm² 3m

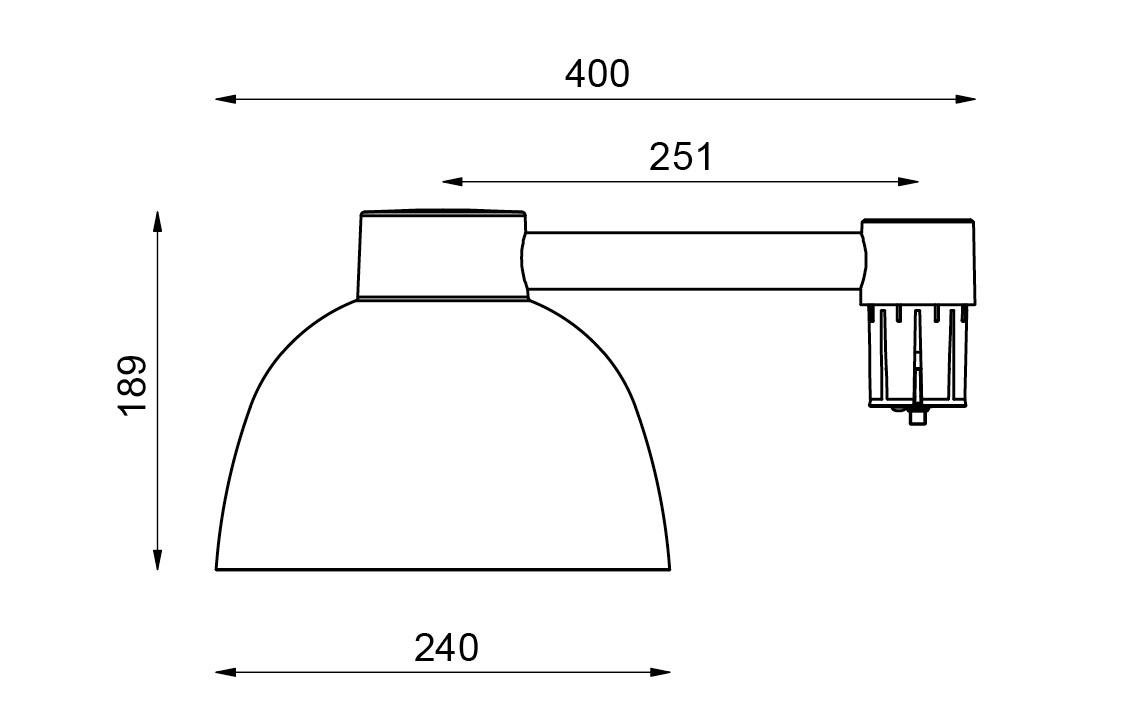

Dimensions

Length (mm) L
400
Width (mm) W
240
Height (mm) H
189
Weight (kg) gross/net
3.64 / 2.915

Packaging

Packaging dimensions (mm)
412 x 250 x 240
