Herning Bollard & Pole

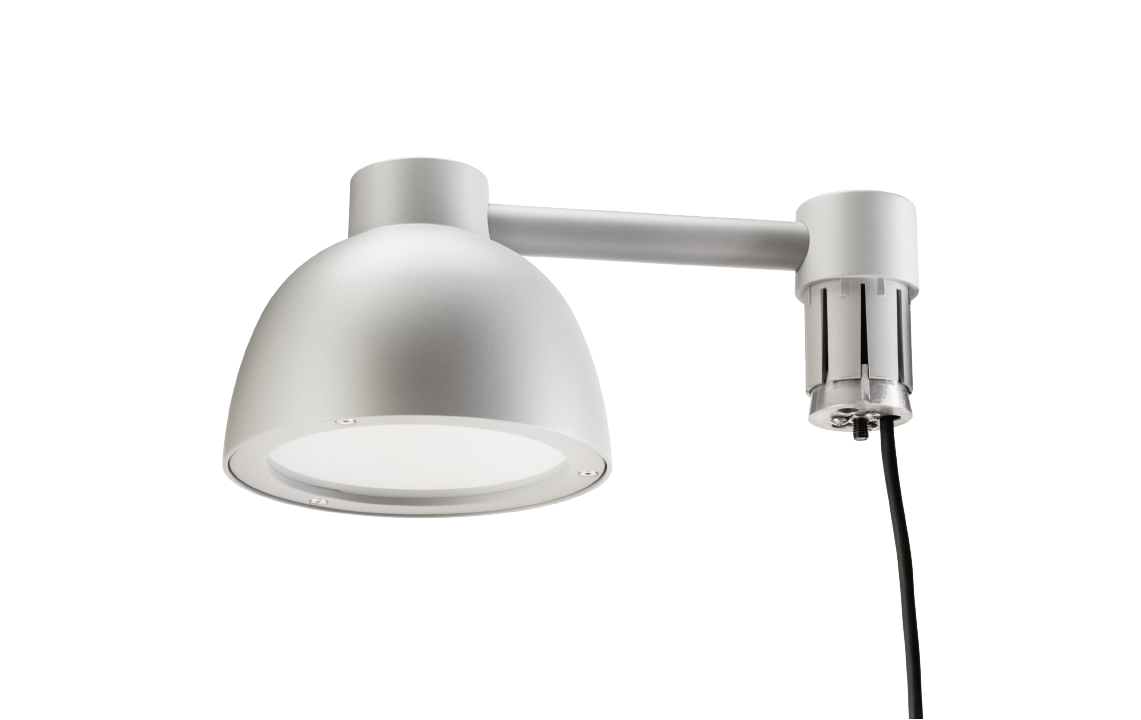

Herning Polehead Ø60 Grey Mini 580/620/1220/1300lm 3000/4000K Ra>80 Trailing edge

Article code
623980
EAN
7021986239805
Back to articlelist

Overview

Wattage
8W/17W
Efficacy
73/36/72/76lm/W
Lumen
580/620/1220/1300lm
IP Class
IP65
Colour temperature
3000/4000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L80/B20>
Mounting
Pole, wall, bollard or earthing rod, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • dipswitch
  • flickerfree
  • cctsw
  • ik06
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 623980 Mounting instruction Herning Bollard and Pole_User Manual EPD NEPD-8533-8203_Herning-Mini-Polehead CE Declaration CE-UKCA260218A_Herning Bollard Relux file (rolf) 7021986239805_Herning_Bollard_Mini_Grey_1220lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239805_Herning_Bollard_Mini_Grey_1300lm_4000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239805_Herning_Bollard_Mini_Grey_580lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239805_Herning_Bollard_Mini_Grey_620lm_4000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239805_Herning_Mini_D60_Grey_Polehead_1220lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239805_Herning_Mini_D60_Grey_Polehead_1300lm_4000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239805_Herning_Mini_D60_Grey_Polehead_580lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239805_Herning_Mini_D60_Grey_Polehead_620lm_4000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239805_Herning_Pole_Mini_Grey_1220lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239805_Herning_Pole_Mini_Grey_1300lm_4000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239805_Herning_Pole_Mini_Grey_580lm_3000K_Ra80_Trailing_edge_dimming Relux file (rolf) 7021986239805_Herning_Pole_Mini_Grey_620lm_4000K_Ra80_Trailing_edge_dimming Eulumdat file (ldt) 7021986239805_Herning Mini D60 Grey Polehead 1220lm 3000K Ra80 Trailing edge dimming Eulumdat file (ldt) 7021986239805_Herning Mini D60 Grey Polehead 1300lm 4000K Ra80 Trailing edge dimming Eulumdat file (ldt) 7021986239805_Herning Mini D60 Grey Polehead 580lm 3000K Ra80 Trailing edge dimming Eulumdat file (ldt) 7021986239805_Herning Mini D60 Grey Polehead 620lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239805_Herning Bollard Mini Grey 1220lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239805_Herning Bollard Mini Grey 1300lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239805_Herning Bollard Mini Grey 580lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239805_Herning Bollard Mini Grey 620lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239805_Herning Mini D60 Grey Polehead 1220lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239805_Herning Mini D60 Grey Polehead 1300lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239805_Herning Mini D60 Grey Polehead 580lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239805_Herning Mini D60 Grey Polehead 620lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239805_Herning Pole Mini Grey 1220lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239805_Herning Pole Mini Grey 1300lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239805_Herning Pole Mini Grey 580lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986239805_Herning Pole Mini Grey 620lm 4000K Ra80 Trailing edge dimming Revit file - Generic Herning Bollard Mini 0,9m - generic Revit file - Generic Herning Pole Mini 2,5m - generic Revit file - Face Based Herning Bollard Mini 0,9m - face based Revit file - Face Based Herning Pole Mini 2,5m - face based

How to specify

Text copied to clipboard

Herning Polehead Ø60 Grey Mini 580/620/1220/1300lm 3000/4000K Ra>80 Trailing edge, Article code: 623980, EAN: 7021986239805, IP65, IK06, Electrical: Wattage: 8W/17W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 30, B16: 47, C10: 50, C16: 80, Light technic: Type of light source: LED, Luminous flux: 580/620/1220/1300lm, Efficacy: 73/36/72/76lm/W, Colour temperature: 3000/4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>50,000, Light distribution: Direct, Optic: Glass, Photobiological safety: RG 1, ULOR (<1%): Yes, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK06, IP Class: IP65, Energy and approvals: Contains light source of energy class: E, Materials and finish: Housing: Aluminium, Mounting/Connection: Mounting: Pole, wall, bollard or earthing rod, Outdoor, Module: Ø60, Cable: Cable 2x1mm² 3m, Dimensions: Length (mm) L: 342, Width (mm) W: 182, Height (mm) H: 144, Weight (kg) gross/net: 2.55 / 2.02, Packaging: Packaging dimensions (mm): 342 x 190 x 200

Electrical

Wattage
8W/17W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 30, B16: 47, C10: 50, C16: 80

Light technic

Type of light source
LED
Luminous flux
580/620/1220/1300lm
Efficacy
73/36/72/76lm/W
Colour temperature
3000/4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>50,000

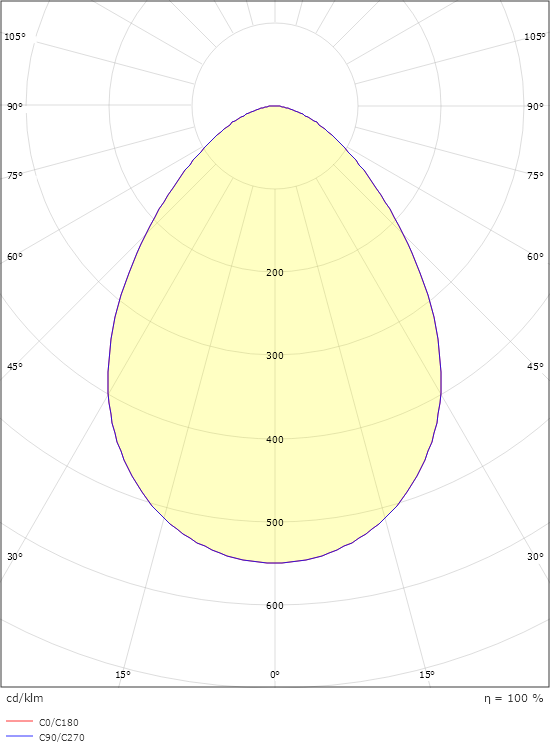

Light distribution
Direct
Optic
Glass
Photobiological safety
RG 1
ULOR (<1%)
Yes

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK06
IP Class
IP65

Energy and approvals

Contains light source of energy class
E

Materials and finish

Housing
Aluminium

Mounting/Connection

Mounting
Pole, wall, bollard or earthing rod, Outdoor
Module
Ø60
Cable
Cable 2x1mm² 3m

Dimensions

Length (mm) L
342
Width (mm) W
182
Height (mm) H
144
Weight (kg) gross/net
2.55 / 2.02

Packaging

Packaging dimensions (mm)
342 x 190 x 200
