Hovden

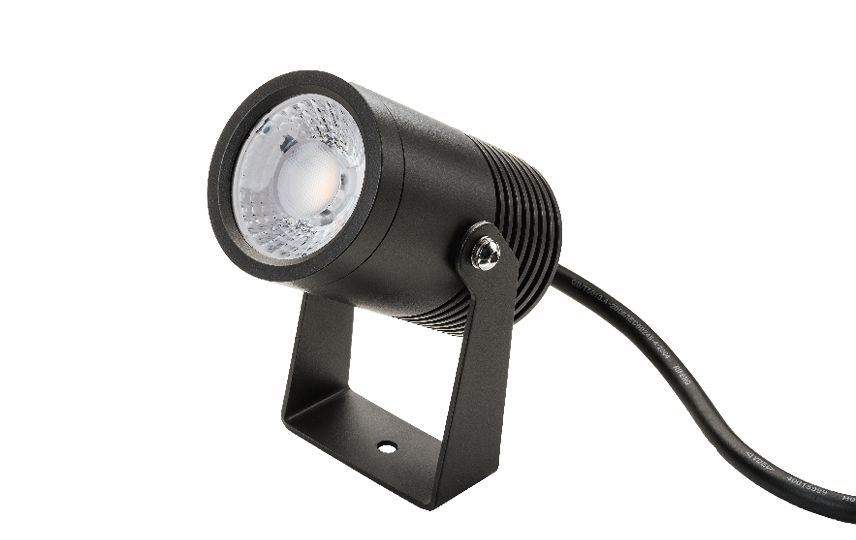

SG Hovden Graphite Midi 1140lm 3000K Ra>80 Trailing edge

Article code
630005
EAN
7021986300055
Back to articlelist

Overview

Efficacy
95 lm/W
Lumen
1140lm
IP Class
IP67
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B10>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik10
  • ip67
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 630005 Revit file - Generic Hovden Midi - Generic Revit file - Face Based Hovden Midi - face based

See more

Eulumdat file (ldt) 7021986300055_SG Hovden Graphite Midi 36D 1140lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986300055_SG Hovden Graphite Midi 36D 1140lm 3000K Ra80 Trailing edge dimming Relux file (rolf) 7021986300055_SG_Hovden_Graphite_Midi_36D_1140lm_3000K_Ra_80_Trailing_edge_dimming Mounting instruction Hovden_User Manual CE Declaration Hovden

How to specify

Text copied to clipboard

SG Hovden Graphite Midi 1140lm 3000K Ra>80 Trailing edge, Article code: 630005, EAN: 7021986300055, IP67, IK10, Electrical: System wattage: 12W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 47, B16: 67, C10: 47, C16: 67, Light technic: Type of light source: LED, Luminous flux: 1140lm, Efficacy: 95 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B10>100,000, Light distribution: Direct, Optic: Lens, Beam angle: 36°, Visible flicker (PstLM): 0, Stroboscopic flicker (SVM): 0.01, ULOR (<1%): Yes, up to 35° tilt angle, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP67, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: Acrylic (PMMA), Mounting/Connection: Mounting: Surface, Outdoor, Cable: Cable 2m, Connection: Includes cable and plug, Dimensions: Length (mm) L: 100, Width (mm) W: 61, Height (mm) H: 116, Weight (kg) gross/net: 0.969 / 0.881, Packaging: Packaging dimensions (mm): 160 x 120 x 80

Electrical

System wattage
12W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 47, B16: 67, C10: 47, C16: 67

Light technic

Type of light source
LED
Luminous flux
1140lm
Efficacy
95 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B10>100,000
Light distribution
Direct
Optic
Lens
Beam angle
36°
Visible flicker (PstLM)
0
Stroboscopic flicker (SVM)
0.01
ULOR (<1%)
Yes, up to 35° tilt angle

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP67

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
Acrylic (PMMA)

Mounting/Connection

Mounting
Surface, Outdoor
Cable
Cable 2m
Connection
Includes cable and plug

Dimensions

Length (mm) L
100
Width (mm) W
61
Height (mm) H
116
Weight (kg) gross/net
0.969 / 0.881

Packaging

Packaging dimensions (mm)
160 x 120 x 80
