Arlon Round

Arlon Round White 1050lm 2700K Ra>80 Trailing edge

Article code
653602
EAN
7021986536027
Back to articlelist

Overview

Wattage
10W
Efficacy
105 lm/W
Lumen
1050lm
IP Class
IP65
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L80/B20>
Mounting
Wall, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik10
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 653602 Revit file - Generic Arlon round - generic Revit file - Face Based Arlon Round - face based

See more

Eulumdat file (ldt) 7021986536027_Arlon Round White 1050lm 2700K Ra80 Trailing edge dimming Dialux file (uld) 7021986536027_Arlon Round White 1050lm 2700K Ra80 Trailing edge dimming Relux file (rolf) 7021986536027_Arlon_Round_White_1050lm_2700K_Ra_80_Trailing_edge_dimming EPD NEPD-8054-7727_Arlon-Round Mounting instruction Arlon Round_User Manual CE Declaration Arlon Round

How to specify

Text copied to clipboard

Arlon Round White 1050lm 2700K Ra>80 Trailing edge, Article code: 653602, EAN: 7021986536027, IP65, IK10, Electrical: Wattage: 10W, System wattage: 10W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 31, B16: 50, C10: 52, C16: 85, Light technic: Type of light source: LED, Light source included: Yes, Luminous flux: 1050lm, Efficacy: 105 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L80/B20>100,000, Light distribution: Direct, Optic: Difuser, Visible flicker (PstLM): 0.08, Stroboscopic flicker (SVM): 0.75, Control/Dimming: Type: Trailing edge, Driver: 350mA, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP65, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Wall, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 269, Width (mm) W: 266, Height (mm) H: 47, Weight (kg) gross/net: 1.5 / 1.295, Packaging: Packaging dimensions (mm): 275 x 275 x 60

Electrical

Wattage
10W
System wattage
10W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 31, B16: 50, C10: 52, C16: 85

Light technic

Type of light source
LED
Light source included
Yes
Luminous flux
1050lm
Efficacy
105 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L80/B20>100,000

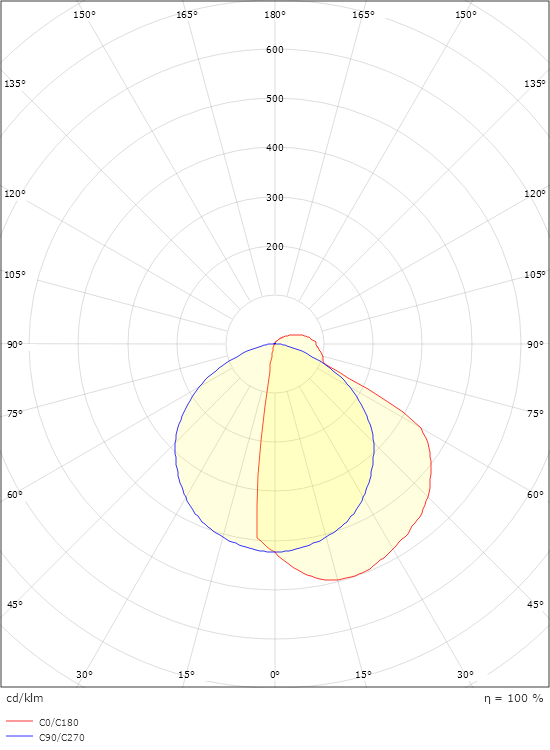

Light distribution
Direct
Optic
Difuser
Visible flicker (PstLM)
0.08
Stroboscopic flicker (SVM)
0.75

Control/Dimming

Type
Trailing edge
Driver
350mA

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP65

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Wall, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
269
Width (mm) W
266
Height (mm) H
47
Weight (kg) gross/net
1.5 / 1.295

Packaging

Packaging dimensions (mm)
275 x 275 x 60
