Artes Mini

Artes Mini Graphite 380lm 3000K Ra>80 Trailing edge

Article code
641744
EAN
7021986417449
Back to articlelist

Overview

Efficacy
48 lm/W
Lumen
380lm
IP Class
IP44
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
90.000 L70/B50>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ip44
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 641744 Eulumdat file (ldt) 7021986417449_Artes Mini Graphite 360lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986417449_Artes Mini Graphite 360lm 3000K Ra80 Trailing edge dimming

See more

Relux file (rolf) 7021986417449_Artes_Mini_Graphite_360lm_3000K_Ra_80_Trailing_edge_dimming EPD NEPD-8259-7923_Artes-Mini Mounting instruction Artes Mini_User Manual CE Declaration Artes Mini

How to specify

Text copied to clipboard

Artes Mini Graphite 380lm 3000K Ra>80 Trailing edge, Article code: 641744, EAN: 7021986417449, IP44, Electrical: System wattage: 8W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 90, B16: 150, C10: 90, C16: 150, Light technic: Type of light source: LED, Luminous flux: 380lm, Efficacy: 48 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B50>90.000, Lifetime: L80/B10>60,000, Optic: Lens, Beam angle: 60°, Visible flicker (PstLM): 0,06, Stroboscopic flicker (SVM): 0,3, ULOR (<1%): Yes, for direct only, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP44, Energy and approvals: Contains light source of energy class: E, Materials and finish: Housing: Aluminium, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 86, Width (mm) W: 100, Height (mm) H: 86, Weight (kg) gross/net: 0.555 / 0.508, Packaging: Packaging dimensions (mm): 90 x 115 x 95

Electrical

System wattage
8W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 90, B16: 150, C10: 90, C16: 150

Light technic

Type of light source
LED
Luminous flux
380lm
Efficacy
48 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B50>90.000
Lifetime
L80/B10>60,000
Optic
Lens

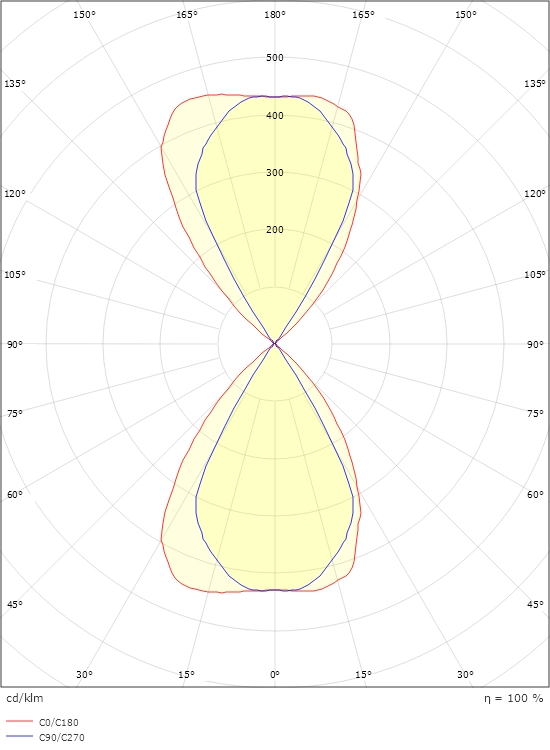

Beam angle
60°
Visible flicker (PstLM)
0,06
Stroboscopic flicker (SVM)
0,3
ULOR (<1%)
Yes, for direct only

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP44

Energy and approvals

Contains light source of energy class
E

Materials and finish

Housing
Aluminium
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
86
Width (mm) W
100
Height (mm) H
86
Weight (kg) gross/net
0.555 / 0.508

Packaging

Packaging dimensions (mm)
90 x 115 x 95
