Bassi

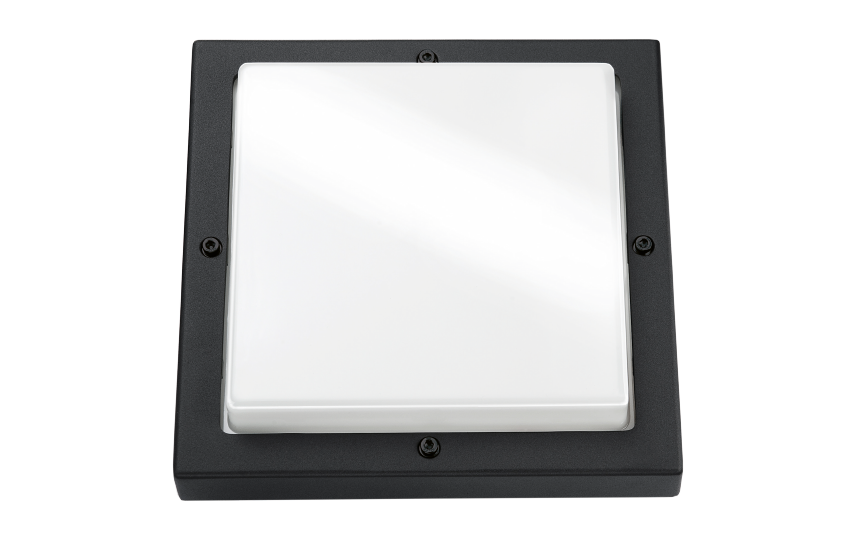

Bassi Black E27

Article code
614180
EAN
7021986141801
Back to articlelist

Overview

Wattage
Max 46W
IP Class
IP65
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik10
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 614180 Mounting instruction Bassi E27_User Manual EPD NEPD-8954-8603_Bassi-E27

See more

Revit file - Generic Bassi - Generic Revit file - Face Based Bassi - face based CE Declaration Bassi

How to specify

Text copied to clipboard

Bassi Black E27, Article code: 614180, EAN: 7021986141801, IP65, IK10, Electrical: Wattage: Max 46W, Voltage: 220-240V, Light technic: Socket: E27, Light source included: No, Light distribution: Direct, Optic: Opal, Beam angle: 120°, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP65, Fire protection class: 850°C - 30s, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 240, Width (mm) W: 240, Height (mm) H: 90, Weight (kg) gross/net: 2.09 / 1.8, Packaging: Packaging dimensions (mm): 240 x 240 x 80

Electrical

Wattage
Max 46W
Voltage
220-240V

Light technic

Socket
E27
Light source included
No
Light distribution
Direct
Optic
Opal
Beam angle
120°

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP65
Fire protection class
850°C - 30s

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
240
Width (mm) W
240
Height (mm) H
90
Weight (kg) gross/net
2.09 / 1.8

Packaging

Packaging dimensions (mm)
240 x 240 x 80
