Canto

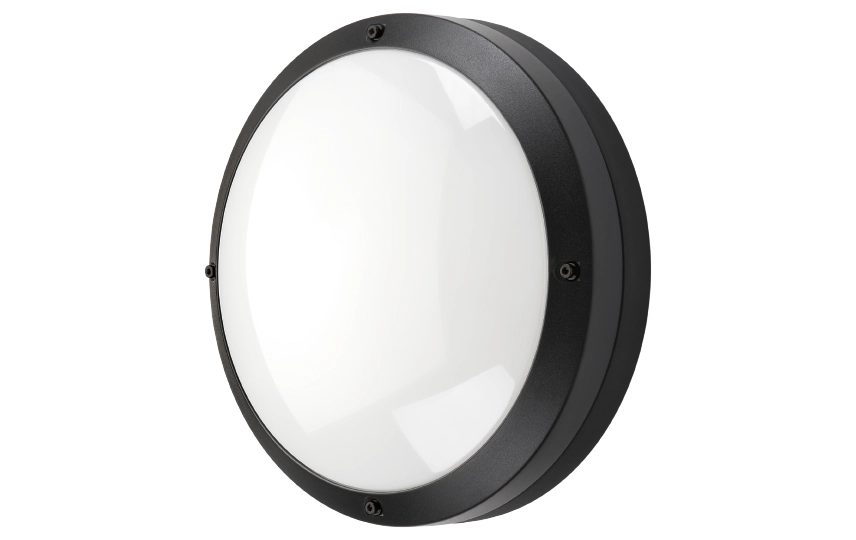

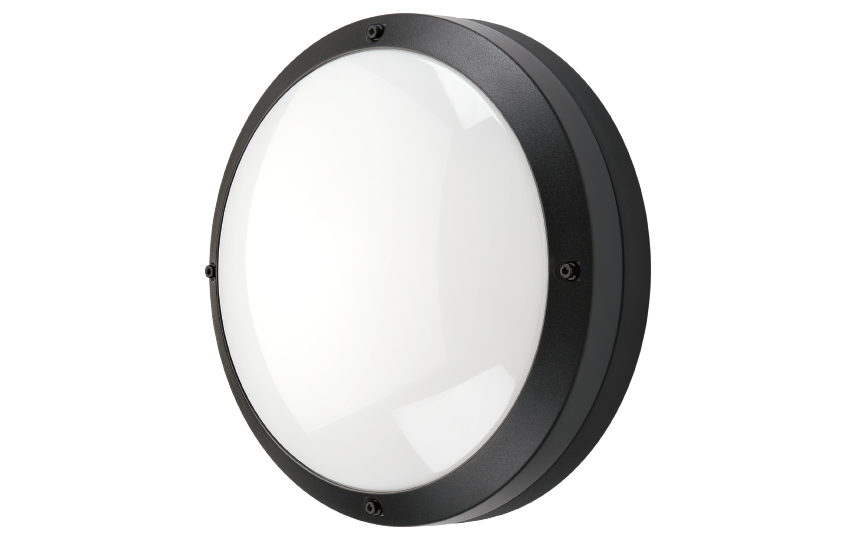

Canto 2000 Black 1520lm 3000K Ra>80 Sensor

Article code
644867
EAN
7021986448672
Back to articlelist

Overview

Efficacy
109 lm/W
Lumen
1520lm
IP Class
IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B50>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • dipswitch
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 644867 Mounting instruction Canto_Sensor_User Manual Eulumdat file (ldt) 7021986448672_Canto 2000 Black 1400lm 3000K Ra80 Sensor

See more

Dialux file (uld) 7021986448672_Canto 2000 Black 1400lm 3000K Ra80 Sensor Relux file (rolf) 7021986448672_Canto_2000_Black_1400lm_3000K_Ra_80_Sensor Revit file - Generic Canto - Generic Revit file - Face Based Canto - face based CE Declaration Canto LED

How to specify

Text copied to clipboard

Canto 2000 Black 1520lm 3000K Ra>80 Sensor, Article code: 644867, EAN: 7021986448672, IP65, IK10, Electrical: System wattage: 14W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 44, B16: 71, C10: 44, C16: 71, Light technic: Type of light source: LED, Luminous flux: 1520lm, Efficacy: 109 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B50>100,000, Light distribution: Direct, Optic: Opal, Beam angle: 110°, Photobiological safety: RG 0, Control/Dimming: Type: Sensor, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Module: 2000, Connection: Screwless terminal block, Dimensions: Height (mm) H: 120, Diameter (mm) D: 325, Weight (kg) gross/net: 3.2 / 2.338, Packaging: Packaging dimensions (mm): 340 x 340 x 120

Electrical

System wattage
14W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 44, B16: 71, C10: 44, C16: 71

Light technic

Type of light source
LED
Luminous flux
1520lm
Efficacy
109 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B50>100,000

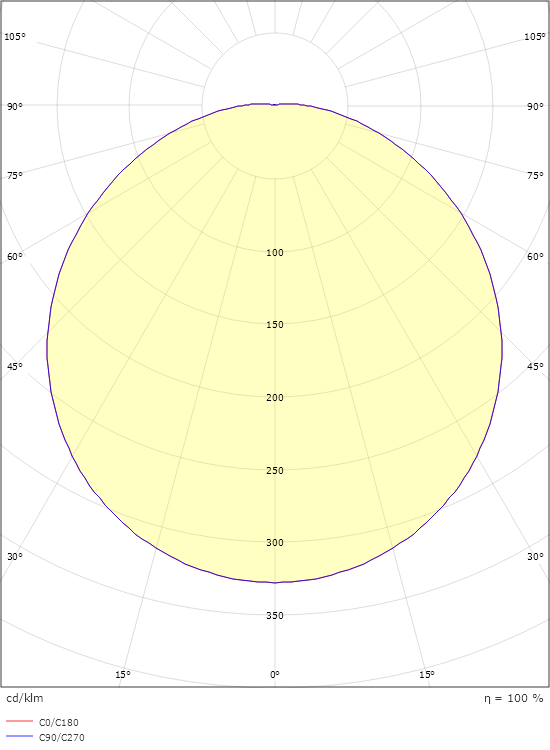

Light distribution
Direct
Optic
Opal
Beam angle
110°
Photobiological safety
RG 0

Control/Dimming

Type
Sensor

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Module
2000
Connection
Screwless terminal block

Dimensions

Height (mm) H
120
Diameter (mm) D
325
Weight (kg) gross/net
3.2 / 2.338

Packaging

Packaging dimensions (mm)
340 x 340 x 120
