Canto

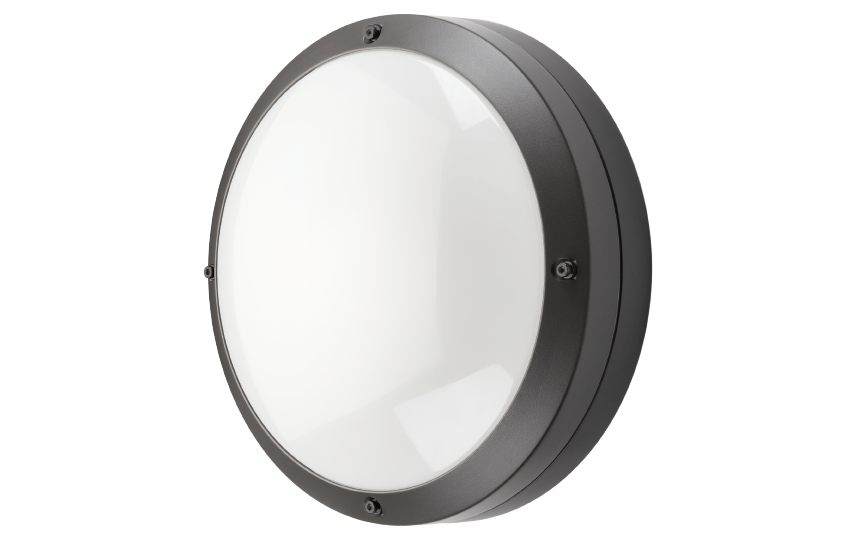

Canto Black 2xE27 On/Off

Article code
624860
EAN
7021986248609
Back to articlelist

Overview

Wattage
Max 2x33W
IP Class
IP65
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • dipswitch
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 624860 Mounting instruction Canto_E27_User Manual Revit file - Generic Canto - Generic

See more

Revit file - Face Based Canto - face based CE Declaration Canto LED

How to specify

Text copied to clipboard

Canto Black 2xE27 On/Off, Article code: 624860, EAN: 7021986248609, IP65, IK10, Electrical: Wattage: Max 2x33W, Voltage: 220-240V, Light technic: Socket: 2xE27, Light source included: No, Light distribution: Direct, Optic: Opal, Beam angle: 110°, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Fire protection class: 850°C - 30s, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 120, Diameter (mm) D: 325, Weight (kg) gross/net: 3 / 1.82, Packaging: Packaging dimensions (mm): 340 x 340 x 120

Electrical

Wattage
Max 2x33W
Voltage
220-240V

Light technic

Socket
2xE27
Light source included
No
Light distribution
Direct
Optic
Opal
Beam angle
110°

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65
Fire protection class
850°C - 30s

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
120
Diameter (mm) D
325
Weight (kg) gross/net
3 / 1.82

Packaging

Packaging dimensions (mm)
340 x 340 x 120
