Duett

Duett Graphite E27 350lm 2700K Ra>80 Trailing edge

Article code
623393
EAN
7021986233933
Back to articlelist

Overview

Efficacy
35 lm/W
Lumen
350lm
IP Class
IP65
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L70/B50>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 623393 Eulumdat file (ldt) 7021986233933_Duett E27 Graphite 10W LED 2700K Ra80-43982 Dialux file (uld) 7021986233933_Duett E27 Graphite 10W LED 2700K Ra80

See more

Relux file (rolf) 7021986233933_Duett_Graphite_E27_350lm_2700K_Ra_80_Trailing_edge_dimming Revit file - Generic Duett - Generic Revit file - Face Based Duett - face based Mounting instruction Duett Mounting instruction CE Declaration Duett

How to specify

Text copied to clipboard

Duett Graphite E27 350lm 2700K Ra>80 Trailing edge, Article code: 623393, EAN: 7021986233933, IP65, IK10, Electrical: System wattage: 10W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 33, B16: 52, C10: 40, C16: 64, Light technic: Type of light source: LED, Socket: E27, Light source included: Yes, Luminous flux: 350lm, Efficacy: 35 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 6, Lifetime: L70/B50>50,000, Light distribution: Direct, Optic: Opal, Beam angle: 100°, Photobiological safety: RG 0, ULOR (<1%): Yes, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 271, Height (mm) H: 142, Depth (D): 148, Weight (kg) gross/net: 2.04 / 1.586, Packaging: Packaging dimensions (mm): 280 x 155 x 155

Electrical

System wattage
10W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 33, B16: 52, C10: 40, C16: 64

Light technic

Type of light source
LED
Socket
E27
Light source included
Yes
Luminous flux
350lm
Efficacy
35 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 6
Lifetime
L70/B50>50,000

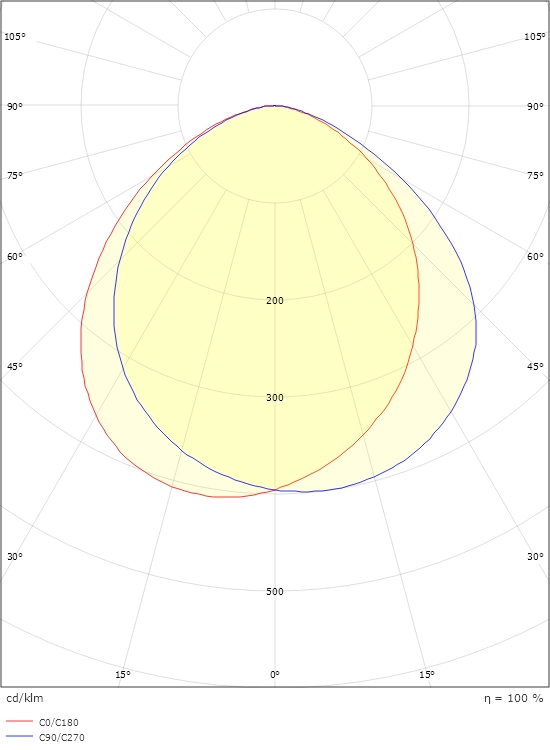

Light distribution
Direct
Optic
Opal
Beam angle
100°
Photobiological safety
RG 0
ULOR (<1%)
Yes

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Outdoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
271
Height (mm) H
142
Depth (D)
148
Weight (kg) gross/net
2.04 / 1.586

Packaging

Packaging dimensions (mm)
280 x 155 x 155
