Duett

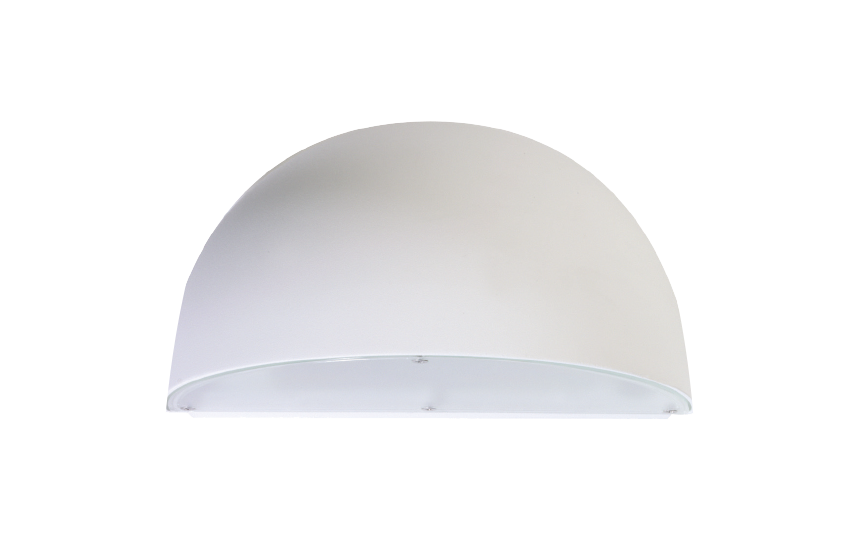

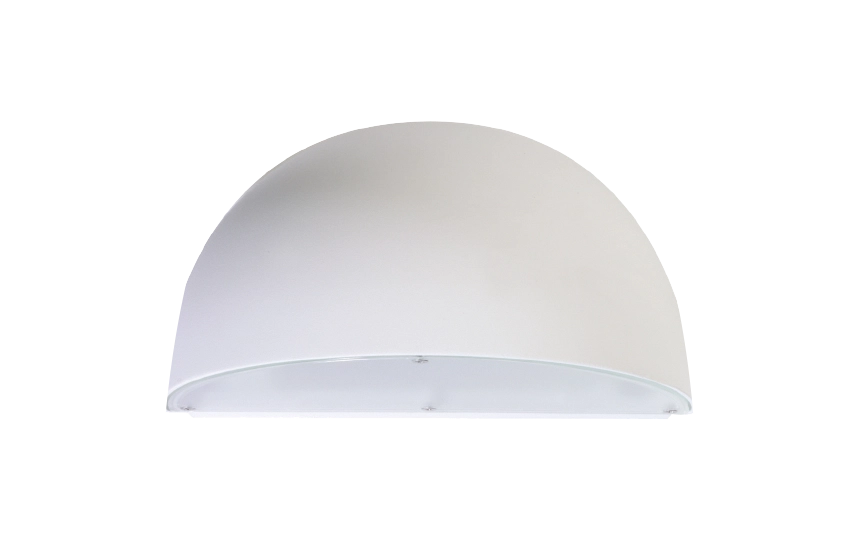

Duett White E27 On/Off

Article code
611390
EAN
7021986113907
Back to articlelist

Overview

Wattage
Max 30W
IP Class
IP65
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 611390 Revit file - Generic Duett - Generic Revit file - Face Based Duett - face based

See more

Mounting instruction Duett Mounting instruction CE Declaration Duett

How to specify

Text copied to clipboard

Duett White E27 On/Off, Article code: 611390, EAN: 7021986113907, IP65, IK10, Electrical: Wattage: Max 30W, Voltage: 220-240V, Light technic: Socket: E27, Light source included: No, Light distribution: Direct, Optic: Opal, Beam angle: 100°, ULOR (<1%): Yes, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 271, Height (mm) H: 142, Depth (D): 148, Weight (kg) gross/net: 1.4 / 1.17, Packaging: Packaging dimensions (mm): 280 x 150 x 155

Electrical

Wattage
Max 30W
Voltage
220-240V

Light technic

Socket
E27
Light source included
No
Light distribution
Direct
Optic
Opal
Beam angle
100°
ULOR (<1%)
Yes

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Outdoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
271
Height (mm) H
142
Depth (D)
148
Weight (kg) gross/net
1.4 / 1.17

Packaging

Packaging dimensions (mm)
280 x 150 x 155
