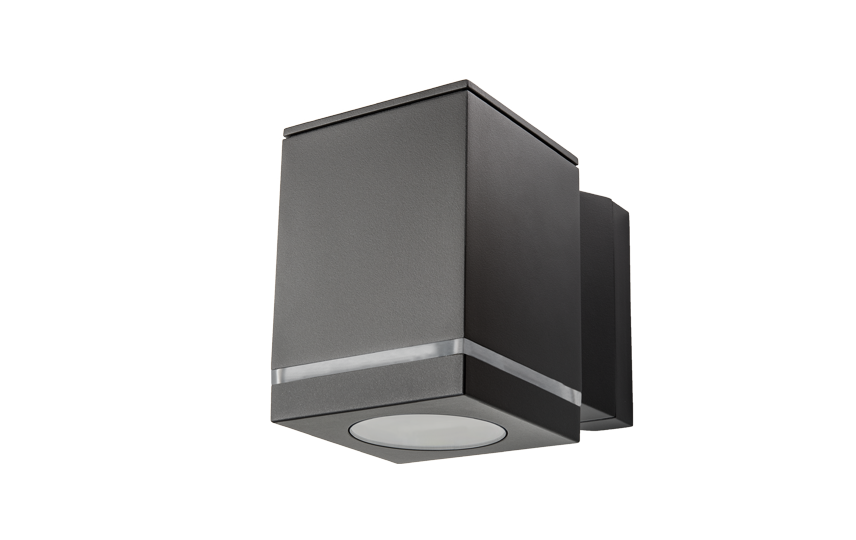

Echo Deco
Echo Deco Graphite 180lm 2700K Ra>80 Trailing edge
- Article code
- 623708
- EAN
- 7021986237085
Overview
- Efficacy
- 40 lm/W
- Lumen
- 180lm
- IP Class
- IP54
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 40,000 L70/B50>
- Mounting
- Surface, Indoor / Outdoor
Tools
Downloads
Specification sheet
623708
pdf
(Opens in new tab)
Mounting instruction
Echo Deco User Manual
pdf
(Opens in new tab)
CE Declaration
Echo Deco
pdf
(Opens in new tab)
Relux file (rolf)
7021986237085_Echo_Deco_Graphite_180lm_2700K_Ra_80_Trailing_edge_dimming
rolf
Eulumdat file (ldt)
7021986237085_Echo Deco Graphite 180lm 2700K Ra80 Trailing edge dimming
ldt
Dialux file (uld)
7021986237085_Echo Deco Graphite 180lm 2700K Ra80 Trailing edge dimming
uld
Revit file - Generic
Echo Deco - generic
rfa
Revit file - Face Based
Echo Deco - face based
rfa
Electrical
- System wattage
- 4.5W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 200, B16: 200, C10: 320, C16: 320
Light technic
- Type of light source
- LED
- Socket
- GU10
- Light source included
- Yes
- Luminous flux
- 180lm
- Efficacy
- 40 lm/W
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 4
- Lifetime
- L70/B50>40,000
- Light distribution
- Direct
- Optic
- Plastic clear
- Beam angle
- 35°
- ULOR (<1%)
- Yes
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class II
- IK Class
- IK08
- IP Class
- IP54
Energy and approvals
- Contains light source of energy class
- G
- Breeam
- Fulfils Hea 01 for flicker free lighting
- BVB
- Yes
Materials and finish
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
Mounting/Connection
- Mounting
- Surface, Indoor / Outdoor
- Connection
- Screwless terminal block
Dimensions
- Width (mm) W
- 90
- Height (mm) H
- 124
- Depth (D)
- 147
- Weight (kg) gross/net
- 1.118 / 1.11
Packaging
- Packaging dimensions (mm)
- 124 x 900 x 124
