Echo Deco

Echo Deco Graphite 350lm 3000K Ra>80 Trailing edge

Article code
623725
EAN
7021986237252
Back to articlelist

Overview

Efficacy
56 lm/W
Lumen
350lm
IP Class
IP54
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
25,000 L70/B50>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik08
  • ip54
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 623725 Mounting instruction Echo Deco User Manual CE Declaration Echo Deco Relux file (rolf) 7021986237252_Echo_Deco_Graphite_350lm_3000K_Ra_80_Trailing_edge_dimming Eulumdat file (ldt) 7021986237252_Echo Deco Graphite 350lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986237252_Echo Deco Graphite 350lm 3000K Ra80 Trailing edge dimming Revit file - Generic Echo Deco - generic Revit file - Face Based Echo Deco - face based

How to specify

Text copied to clipboard

Echo Deco Graphite 350lm 3000K Ra>80 Trailing edge, Article code: 623725, EAN: 7021986237252, IP54, IK08, Electrical: System wattage: 6.2W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: GU10, Light source included: Yes, Luminous flux: 350lm, Efficacy: 56 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 4, Lifetime: L70/B50>25,000, Light distribution: Direct, Optic: Plastic clear, Beam angle: 35°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK08, IP Class: IP54, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 90, Height (mm) H: 124, Depth (D): 147, Weight (kg) gross/net: 1.62 / 1.62, Packaging: Packaging dimensions (mm): 124 x 900 x 124

Electrical

System wattage
6.2W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
GU10
Light source included
Yes
Luminous flux
350lm
Efficacy
56 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 4
Lifetime
L70/B50>25,000

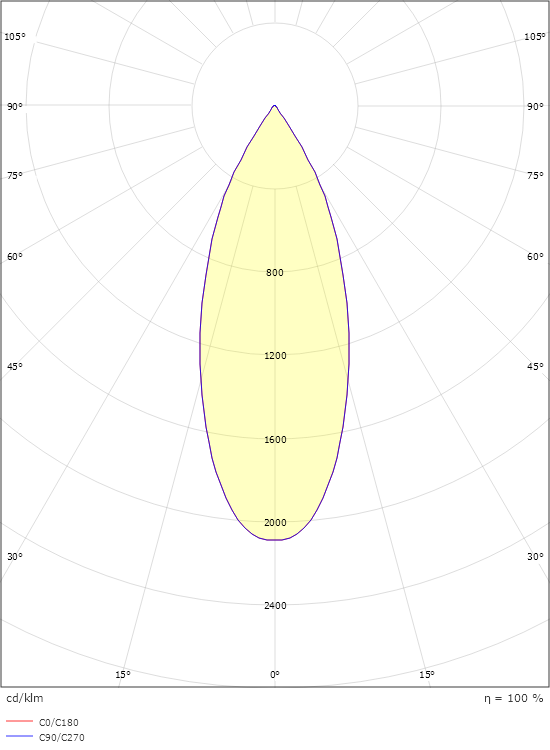

Light distribution
Direct
Optic
Plastic clear
Beam angle
35°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK08
IP Class
IP54

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Outdoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
90
Height (mm) H
124
Depth (D)
147
Weight (kg) gross/net
1.62 / 1.62

Packaging

Packaging dimensions (mm)
124 x 900 x 124
