Echo

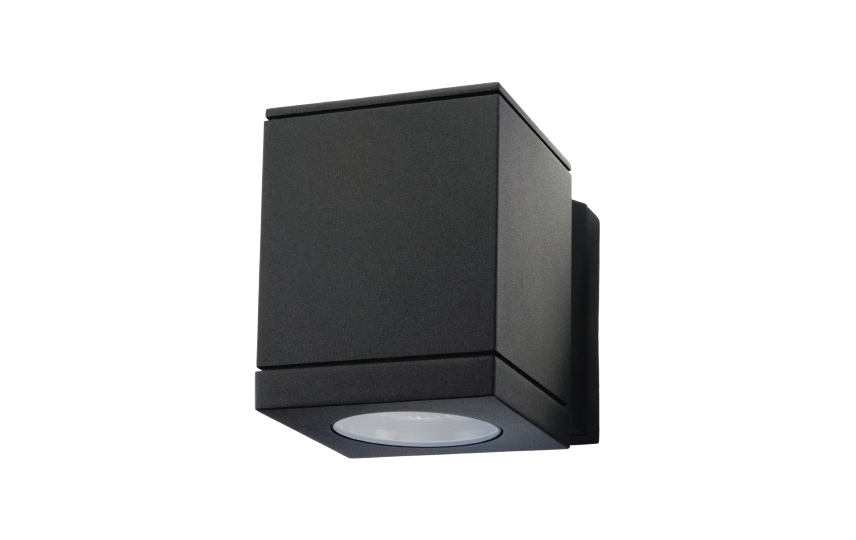

Echo Black 180lm 2700K Ra>80 Trailing edge

Article code
614681
EAN
7021986146813
Back to articlelist

Overview

Efficacy
40 lm/W
Lumen
180lm
IP Class
IP54
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
Lifetime
45,000 L70/B50>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik07
  • ip54
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 614681 Revit file - Generic Echo x1 - generic Revit file - Face Based Echo_x1 - face based

See more

Eulumdat file (ldt) 7021986146813_Echo Black 180lm 2700K Ra80 Trailing edge dimming Dialux file (uld) 7021986146813_Echo Black 180lm 2700K Ra80 Trailing edge dimming Relux file (rolf) 7021986146813_Echo_Black_180lm_2700K_Ra_80_Trailing_edge_dimming Mounting instruction Echo_User manual CE Declaration Echo

How to specify

Text copied to clipboard

Echo Black 180lm 2700K Ra>80 Trailing edge, Article code: 614681, EAN: 7021986146813, IP54, IK07, Electrical: System wattage: 4.5W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: GU10, Light source included: Yes, Luminous flux: 180lm, Efficacy: 40 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 4, Lifetime: L70/B50>45,000, Light distribution: Direct, Optic: Glass Clear, Beam angle: 35°, ULOR (<1%): Yes, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK07, IP Class: IP54, Energy and approvals: Contains light source of energy class: G, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 90, Height (mm) H: 120, Depth (D): 147, Weight (kg) gross/net: 1.332 / 1.11, Packaging: Packaging dimensions (mm): 160 x 100 x 130

Electrical

System wattage
4.5W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
GU10
Light source included
Yes
Luminous flux
180lm
Efficacy
40 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 4
Lifetime
L70/B50>45,000

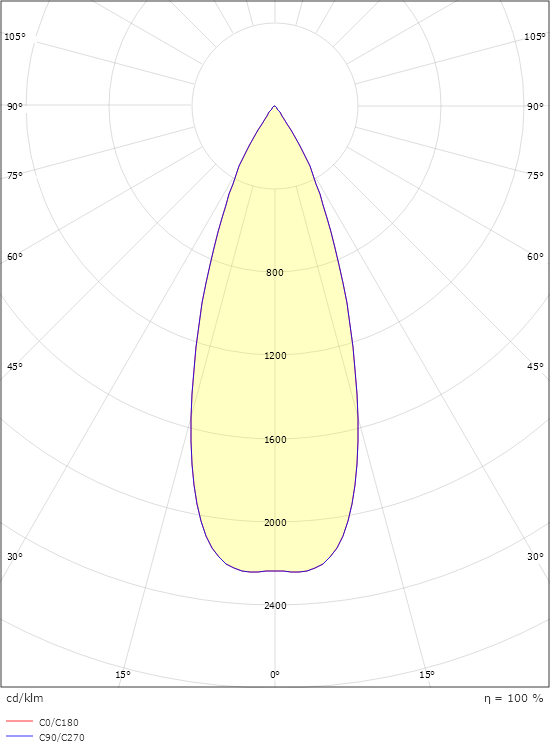

Light distribution
Direct
Optic
Glass Clear
Beam angle
35°
ULOR (<1%)
Yes

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK07
IP Class
IP54

Energy and approvals

Contains light source of energy class
G
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Outdoor
Connection
Screwless terminal block

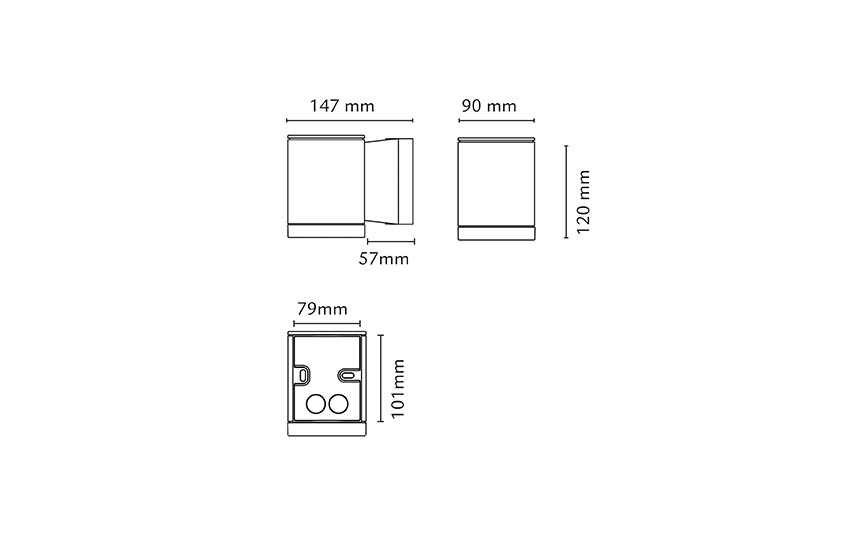

Dimensions

Width (mm) W
90
Height (mm) H
120
Depth (D)
147
Weight (kg) gross/net
1.332 / 1.11

Packaging

Packaging dimensions (mm)
160 x 100 x 130
