Echo

Echo White Ceiling 360lm 3000K Ra>80 Trailing edge

Article code
621689
EAN
7021986216899
Back to articlelist

Overview

Efficacy
58 lm/W
Lumen
360lm
IP Class
IP54
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
25,000 L70/B50>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik07
  • ip54
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 621689 Revit file - Generic Echo Ceiling - generic Revit file - Ceiling Based Echo Ceiling - Ceiling based

See more

Mounting instruction Echo Ceiling_User Manual Eulumdat file (ldt) 7021986216899_Echo White Ceiling 360lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986216899_Echo White Ceiling 360lm 3000K Ra80 Trailing edge dimming Relux file (rolf) 7021986216899_Echo_White_Ceiling_360lm_3000K_Ra_80_Trailing_edge_dimming CE Declaration Echo

How to specify

Text copied to clipboard

Echo White Ceiling 360lm 3000K Ra>80 Trailing edge, Article code: 621689, EAN: 7021986216899, IP54, IK07, Electrical: System wattage: 6.2W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: GU10, Light source included: Yes, Luminous flux: 360lm, Efficacy: 58 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 4, Lifetime: L70/B50>25,000, Light distribution: Direct, Optic: Glass Clear, Beam angle: 35°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK07, IP Class: IP54, Energy and approvals: Contains light source of energy class: F, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: Tempered glass, Mounting/Connection: Mounting: Surface, Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 90, Width (mm) W: 90, Height (mm) H: 120, Weight (kg) gross/net: 1.05 / 0.925, Packaging: Packaging dimensions (mm): 100 x 100 x 155

Electrical

System wattage
6.2W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
GU10
Light source included
Yes
Luminous flux
360lm
Efficacy
58 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 4
Lifetime
L70/B50>25,000
Light distribution
Direct
Optic
Glass Clear
Beam angle
35°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK07
IP Class
IP54

Energy and approvals

Contains light source of energy class
F
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
Tempered glass

Mounting/Connection

Mounting
Surface, Outdoor
Connection
Screwless terminal block

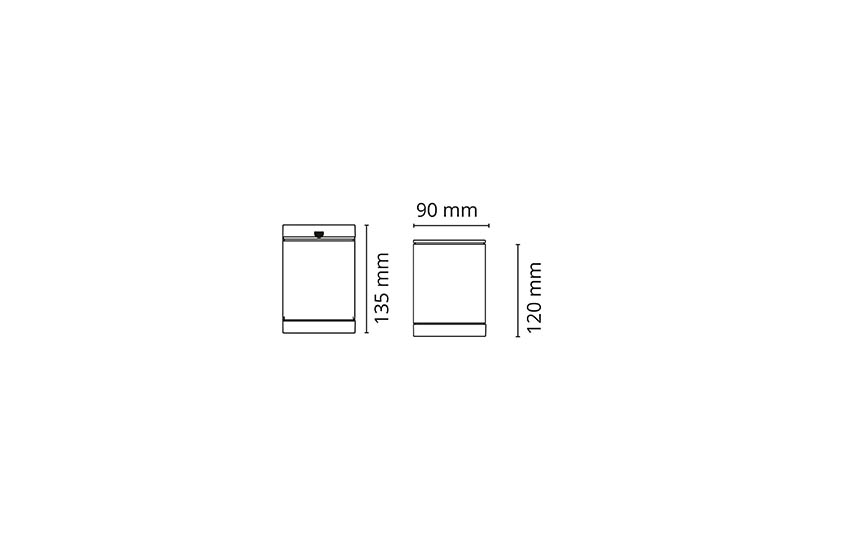

Dimensions

Length (mm) L
90
Width (mm) W
90
Height (mm) H
120
Weight (kg) gross/net
1.05 / 0.925

Packaging

Packaging dimensions (mm)
100 x 100 x 155
