Fagernes

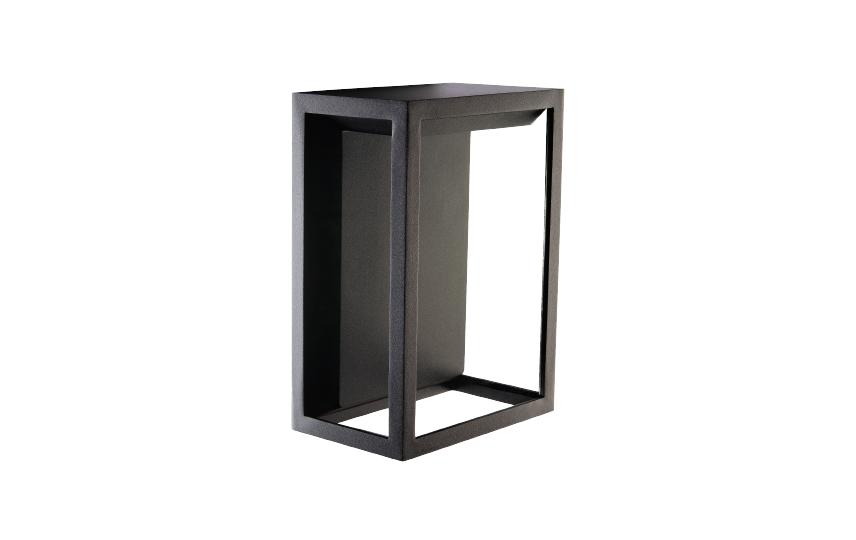

Fagernes Black Mini 270lm 2700K Ra>80 Trailing edge

Article code
630060
EAN
7021986300604
Back to articlelist

Overview

Efficacy
30 lm/W
Lumen
270lm
IP Class
IP44
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B50>
Mounting
Wall, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik07
  • ip44
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 630060 Revit file - Generic Fagernes - generic Revit file - Generic Fagernes Mini - generic

See more

Revit file - Face Based Fagernes mini - face based Eulumdat file (ldt) 7021986300604_Fagernes Black Mini 270lm 2700K Ra80 Trailing edge dimming Dialux file (uld) 7021986300604_Fagernes Black Mini 270lm 2700K Ra80 Trailing edge dimming Relux file (rolf) 7021986300604_Fagernes_Black_Mini_270lm_2700K_Ra_80_Trailing_edge_dimming Mounting instruction Fagernes_User Manual CE Declaration Fagernes

How to specify

Text copied to clipboard

Fagernes Black Mini 270lm 2700K Ra>80 Trailing edge, Article code: 630060, EAN: 7021986300604, IP44, IK07, Electrical: System wattage: 9W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 120, B16: 200, C10: 120, C16: 200, Light technic: Type of light source: LED, Luminous flux: 270lm, Efficacy: 30 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B50>100,000, Lifetime: L90/B10>50,000, Light distribution: Direct, Optic: Glass Clear, Beam angle: 110°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK07, IP Class: IP44, Energy and approvals: Contains light source of energy class: G, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: Tempered glass, Mounting/Connection: Mounting: Wall, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 160, Height (mm) H: 224, Depth (D): 100, Weight (kg) gross/net: 1.788 / 1.592, Packaging: Packaging dimensions (mm): 240 x 170 x 110

Electrical

System wattage
9W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 120, B16: 200, C10: 120, C16: 200

Light technic

Type of light source
LED
Luminous flux
270lm
Efficacy
30 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B50>100,000
Lifetime
L90/B10>50,000

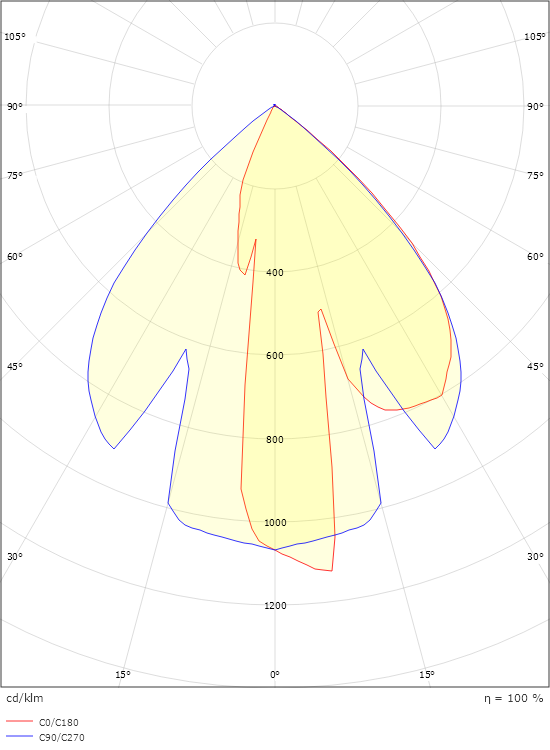

Light distribution
Direct
Optic
Glass Clear
Beam angle
110°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK07
IP Class
IP44

Energy and approvals

Contains light source of energy class
G
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
Tempered glass

Mounting/Connection

Mounting
Wall, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
160
Height (mm) H
224
Depth (D)
100
Weight (kg) gross/net
1.788 / 1.592

Packaging

Packaging dimensions (mm)
240 x 170 x 110
