Fagernes
Fagernes Black 750lm 3000K Ra>80 Trailing edge
- Article code
- 630101
- EAN
- 7021986301014
Overview
- Efficacy
- 63 lm/W
- Lumen
- 750lm
- IP Class
- IP44
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B50>
- Mounting
- Wall, Outdoor
Electrical
- System wattage
- 12W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 88, B16: 142, C10: 88, C16: 142
Light technic
- Type of light source
- LED
- Luminous flux
- 750lm
- Efficacy
- 63 lm/W
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L70/B50>100,000
- Lifetime
- L90/B10>20.000

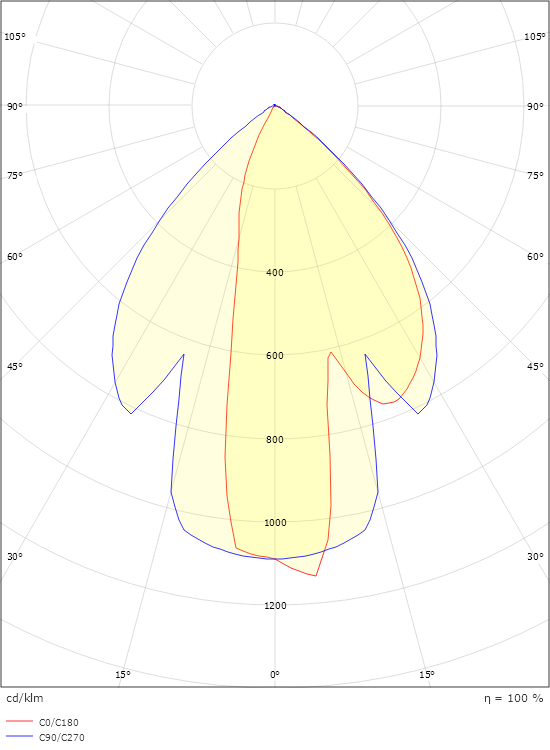

- Light distribution
- Direct
- Optic
- Glass Clear
- Beam angle
- 110°
- Visible flicker (PstLM)
- 0.03
- Stroboscopic flicker (SVM)
- 0.21
- ULOR (<1%)
- Yes
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class II
- IK Class
- IK07
- IP Class
- IP44
Energy and approvals
- Contains light source of energy class
- G
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- Tempered glass
Mounting/Connection
- Mounting
- Wall, Outdoor
- Connection
- Screwless terminal block
Dimensions
- Width (mm) W
- 200
- Height (mm) H
- 280
- Depth (D)
- 125
- Weight (kg) gross/net
- 2.793 / 2.501
Packaging
- Packaging dimensions (mm)
- 300 x 210 x 135
