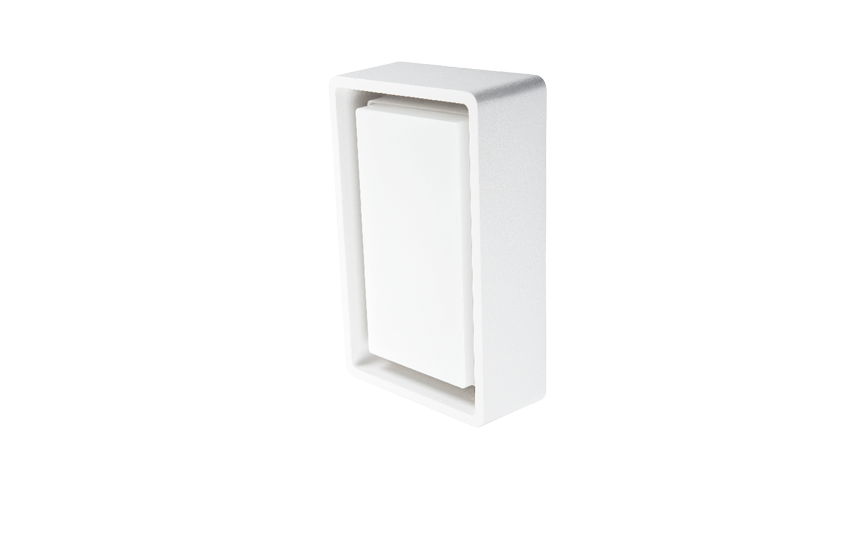

Frame Mini

Frame Mini White 550lm 3000K Ra>80 Trailing edge

Article code
605441
EAN
7021986054415
Back to articlelist

Overview

Efficacy
85 lm/W
Lumen
550lm
IP Class
IP66
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B20>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • dipswitch
  • ik10
  • ip66
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 605441 Eulumdat file (ldt) 7021986054415_FrameMiniWhite6WLED3000KRa80-35710 Dialux file (uld) 7021986054415_FrameMiniWhite6WLED3000KRa80

See more

Relux file (rolf) 7021986054415_Frame_Mini_White_550lm_3000K_Ra_80_Trailing_edge_dimming EPD NEPD-11318-11264_Frame-Mini Revit file - Generic Frame Mini - Generic Revit file - Face Based Frame Mini - face based Mounting instruction Frame User manual CE Declaration Frame Mini

How to specify

Text copied to clipboard

Frame Mini White 550lm 3000K Ra>80 Trailing edge, Article code: 605441, EAN: 7021986054415, IP66, IK10, Electrical: System wattage: 6.5W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 125, B16: 200, Light technic: Type of light source: LED, Luminous flux: 550lm, Efficacy: 85 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B20>100,000, Lifetime: L80/B20>75.000, Light distribution: Direct, Optic: Opal, Beam angle: 110°, Photobiological safety: RG 0, ULOR (<1%): Yes, when ceiling mounted, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP66, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: White, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 240, Width (mm) W: 150, Height (mm) H: 77, Weight (kg) gross/net: 1.9 / 1.75, Packaging: Packaging dimensions (mm): 248 x 158 x 92

Electrical

System wattage
6.5W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 125, B16: 200

Light technic

Type of light source
LED
Luminous flux
550lm
Efficacy
85 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B20>100,000
Lifetime
L80/B20>75.000

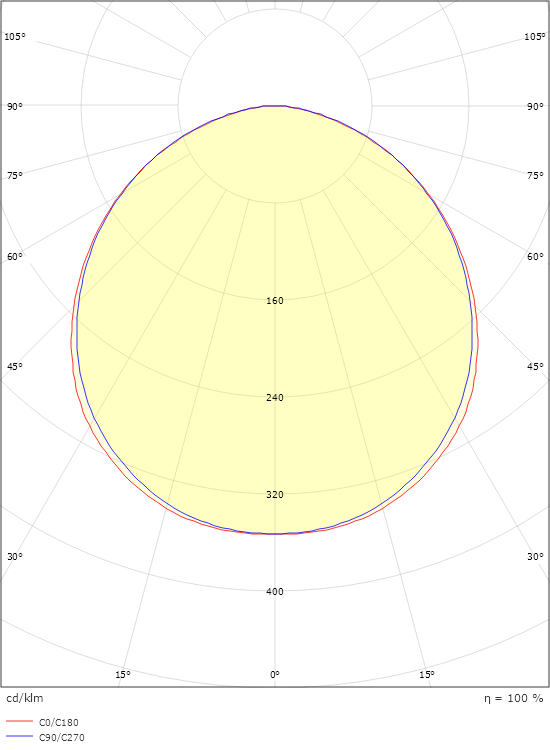

Light distribution
Direct
Optic
Opal
Beam angle
110°
Photobiological safety
RG 0
ULOR (<1%)
Yes, when ceiling mounted

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP66
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
White
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
240
Width (mm) W
150
Height (mm) H
77
Weight (kg) gross/net
1.9 / 1.75

Packaging

Packaging dimensions (mm)
248 x 158 x 92
