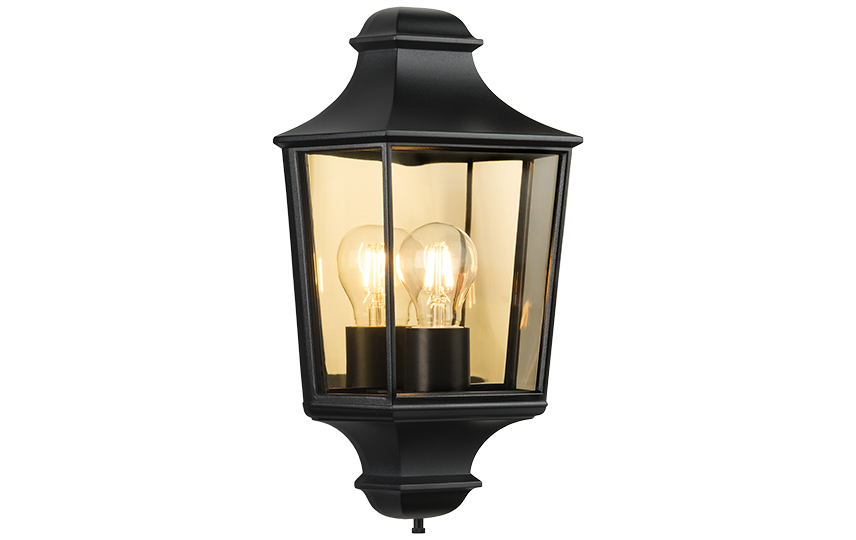

Hamlet

Hamlet Black 220lm 2700K Ra>80 Trailing edge

Article code
614121
EAN
7021986141214
Back to articlelist

Overview

Efficacy
55 lm/W
Lumen
220lm
IP Class
IP44
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
Lifetime
15,000 L70/B50>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ip44
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 614121 Eulumdat file (ldt) 7021986141214_Hamlet Black 4W LED 2700K Ra80-39905 Dialux file (uld) 7021986141214_Hamlet Black 4W LED 2700K Ra80

See more

Relux file (rolf) 7021986141214_Hamlet_Black_220lm_2700K_Ra_80_Trailing_edge_dimming Revit file - Generic Hamlet - Generic Revit file - Face Based Hamlet - face based Mounting instruction Hamlet Mounting Instructions

How to specify

Text copied to clipboard

Hamlet Black 220lm 2700K Ra>80 Trailing edge, Article code: 614121, EAN: 7021986141214, IP44, Electrical: System wattage: 4W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: E27, Light source included: Yes, Luminous flux: 220lm, Efficacy: 55 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 6, Lifetime: L70/B50>15,000, Light distribution: Direct, Optic: Plastic clear, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP44, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 230, Height (mm) H: 390, Depth (D): 125, Weight (kg) gross/net: 2.16 / 1.74, Packaging: Packaging dimensions (mm): 395 x 240 x 135

Electrical

System wattage
4W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
E27
Light source included
Yes
Luminous flux
220lm
Efficacy
55 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 6
Lifetime
L70/B50>15,000

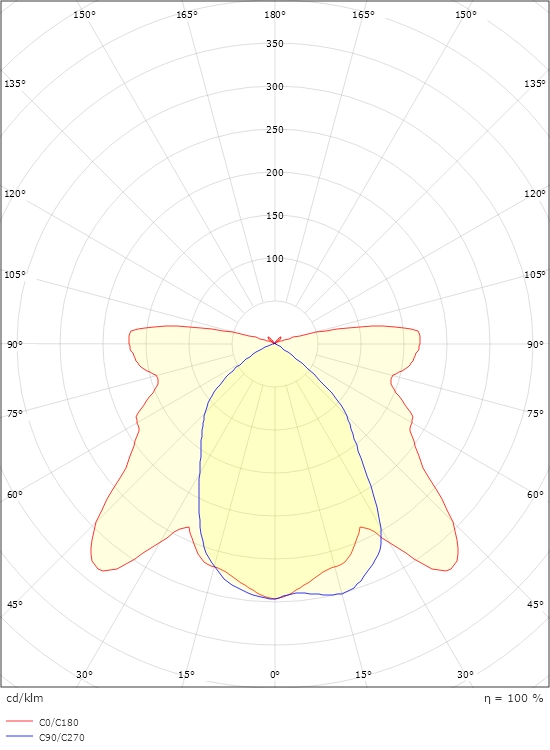

Light distribution
Direct
Optic
Plastic clear

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP44

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Outdoor
Connection
Screwless terminal block

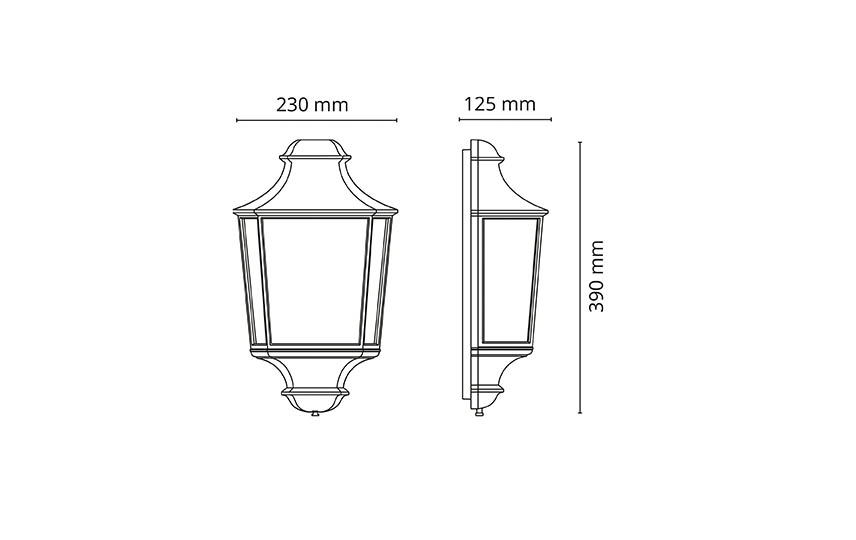

Dimensions

Width (mm) W
230
Height (mm) H
390
Depth (D)
125
Weight (kg) gross/net
2.16 / 1.74

Packaging

Packaging dimensions (mm)
395 x 240 x 135
