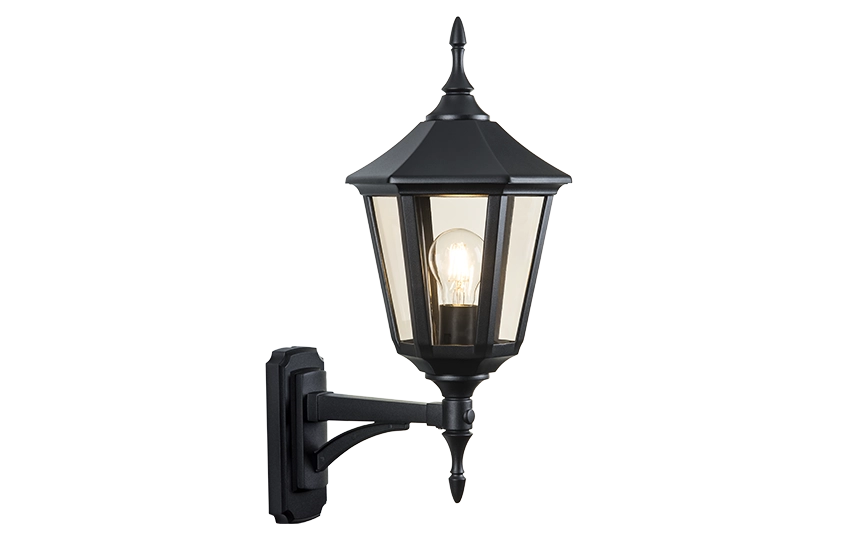

ibiza

Ibiza Black 230lm Ra>80 Trailing edge

Article code
614208
EAN
7021986142082
Back to articlelist

Overview

Efficacy
58 lm/W
Lumen
230lm
IP Class
IP44
Colour rendering (Ra)
Ra>80
Lifetime
15,000 L70/B50>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ip44
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 614208 Eulumdat file (ldt) 7021986142082_Ibiza Black 230lm 2700K Ra80-47871 Dialux file (uld) 7021986142082_Ibiza Black 230lm 2700K Ra80

See more

Relux file (rolf) 7021986142082_Ibiza_Black_230lm_Ra_80_Trailing_edge_dimming Revit file - Generic Ibiza - Generic Revit file - Face Based Ibiza - face based Mounting instruction Ibiza_User Manual

How to specify

Text copied to clipboard

Ibiza Black 230lm Ra>80 Trailing edge, Article code: 614208, EAN: 7021986142082, IP44, Electrical: System wattage: 4W, Voltage: 220-240V, Light technic: Type of light source: LED, Socket: E27, Light source included: Yes, Luminous flux: 230lm, Efficacy: 58 lm/W, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 6, Lifetime: L70/B50>15,000, Light distribution: Direct, Optic: Plastic clear, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP44, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 220, Height (mm) H: 520, Depth (D): 300, Weight (kg) gross/net: 2.58 / 2.15, Packaging: Packaging dimensions (mm): 240 x 290 x 225

Electrical

System wattage
4W
Voltage
220-240V

Light technic

Type of light source
LED
Socket
E27
Light source included
Yes
Luminous flux
230lm
Efficacy
58 lm/W
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 6
Lifetime
L70/B50>15,000

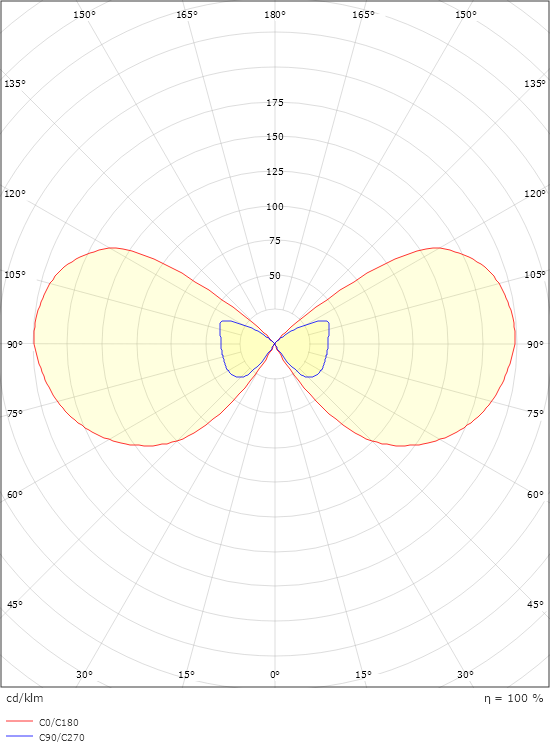

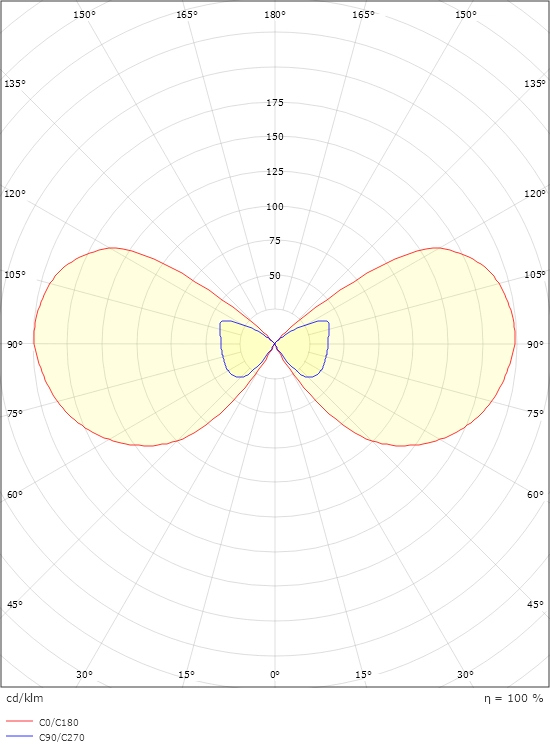

Light distribution
Direct
Optic
Plastic clear

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP44

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Outdoor
Connection
Screwless terminal block

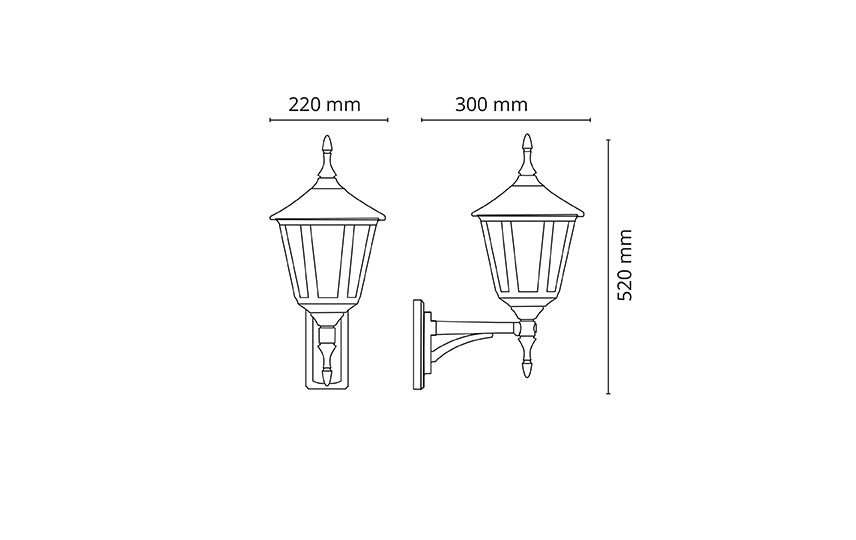

Dimensions

Width (mm) W
220
Height (mm) H
520
Depth (D)
300
Weight (kg) gross/net
2.58 / 2.15

Packaging

Packaging dimensions (mm)
240 x 290 x 225
