Largo

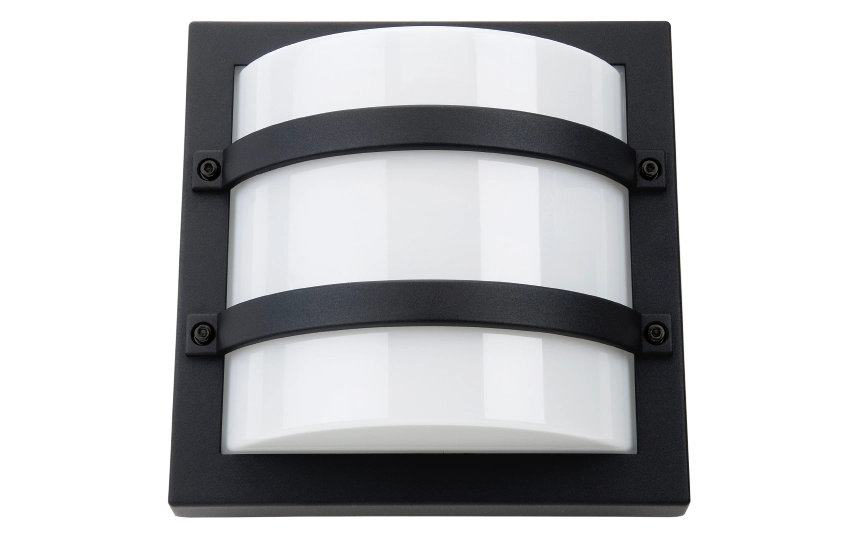

Largo Black 550lm 3000K Ra>80 Twilight

Article code
624569
EAN
7021986245691
Back to articlelist

Overview

Efficacy
55 lm/W
Lumen
550lm
IP Class
IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L70/B10>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik10
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 624569 Mounting instruction Largo LED User Manual CE Declaration Largo Relux file (rolf) 7021986245691_Largo_Black_550lm_3000K_Ra_80_Twilight Eulumdat file (ldt) 7021986245691_Largo Black 550lm 3000K Ra80 Twilight Dialux file (uld) 7021986245691_Largo Black 550lm 3000K Ra80 Twilight Revit file - Generic Largo - Generic Revit file - Face Based Largo - faced based

How to specify

Text copied to clipboard

Largo Black 550lm 3000K Ra>80 Twilight, Article code: 624569, EAN: 7021986245691, IP65, IK10, Electrical: System wattage: 10W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 33, B16: 52, C10: 40, C16: 64, Light technic: Type of light source: LED, Luminous flux: 550lm, Efficacy: 55 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B10>50,000, Light distribution: Direct, Optic: Opal, Beam angle: 130°, Photobiological safety: RG 0, Control/Dimming: Type: Twilight, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP65, Fire protection class: 850°C - 30s, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 240, Height (mm) H: 240, Depth (D): 112, Weight (kg) gross/net: 2.28 / 1.9, Packaging: Packaging dimensions (mm): 260 x 260 x 130

Electrical

System wattage
10W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 33, B16: 52, C10: 40, C16: 64

Light technic

Type of light source
LED
Luminous flux
550lm
Efficacy
55 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B10>50,000

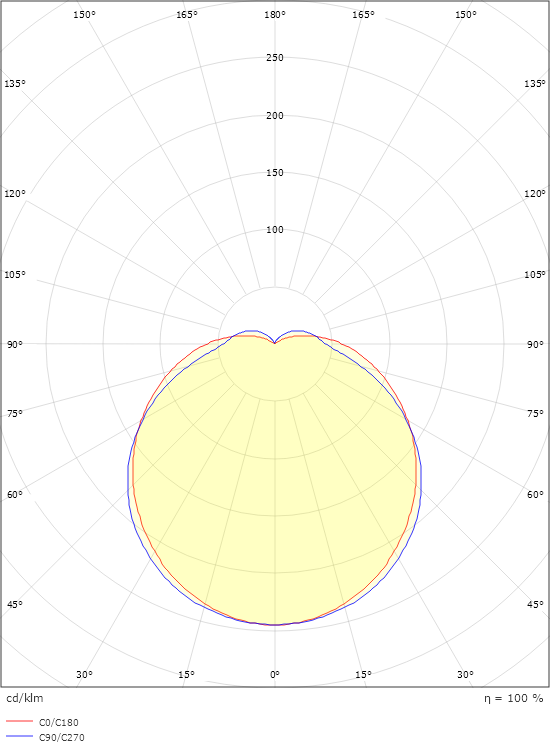

Light distribution
Direct
Optic
Opal
Beam angle
130°
Photobiological safety
RG 0

Control/Dimming

Type
Twilight

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP65
Fire protection class
850°C - 30s

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

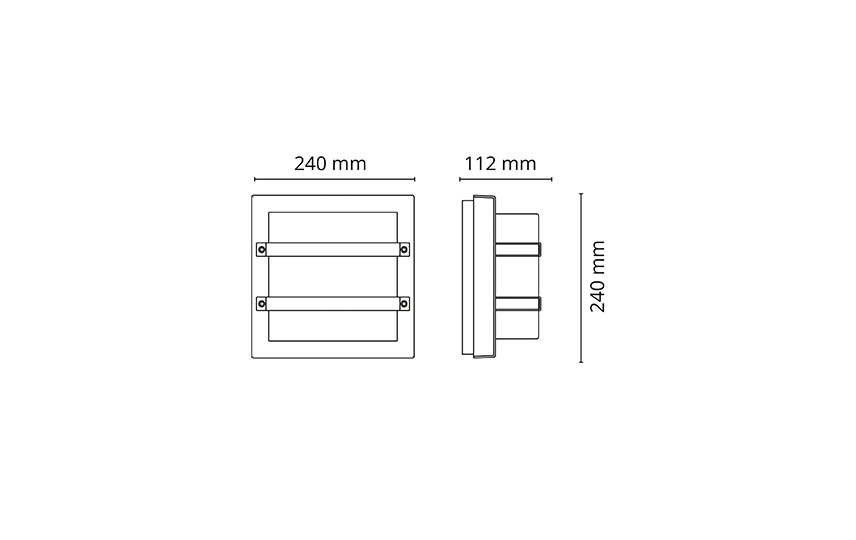

Dimensions

Width (mm) W
240
Height (mm) H
240
Depth (D)
112
Weight (kg) gross/net
2.28 / 1.9

Packaging

Packaging dimensions (mm)
260 x 260 x 130
