Largo

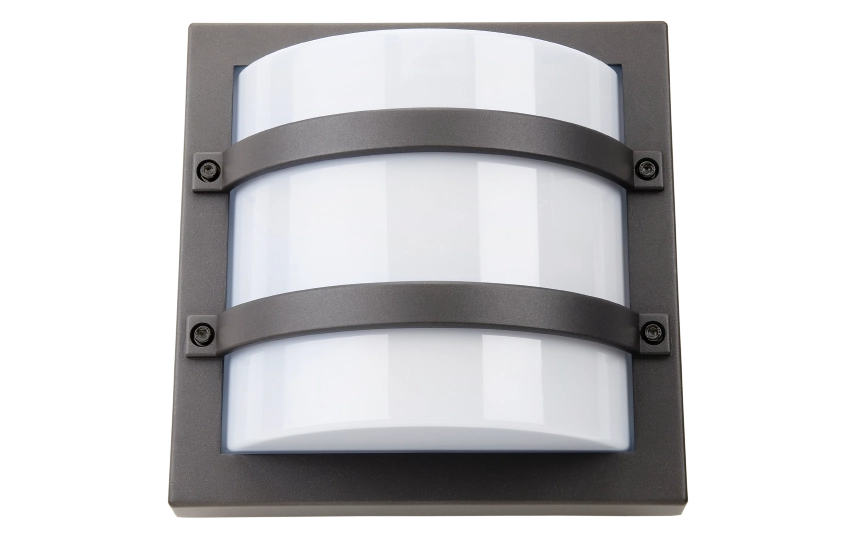

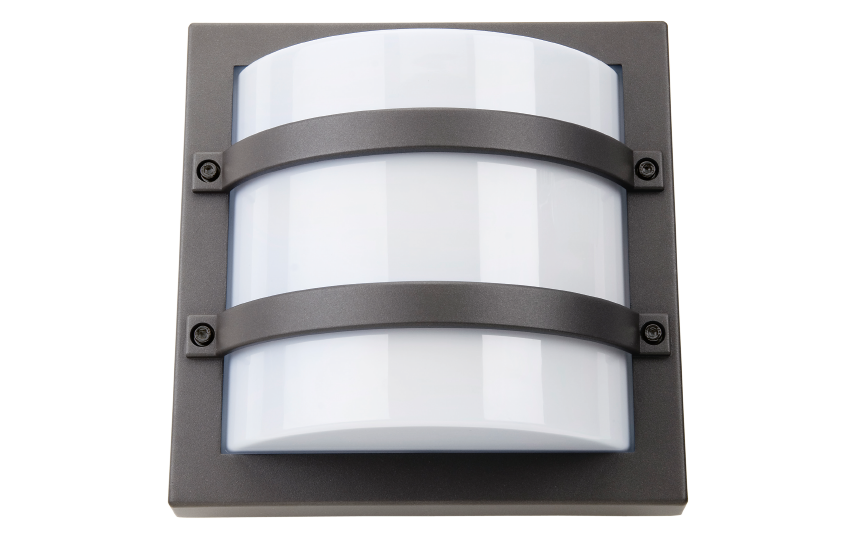

Largo Graphite 550lm 3000K Ra>80 Trailing edge
- Article code
- 623569
- EAN
- 7021986235692
Overview
- Efficacy
- 55 lm/W
- Lumen
- 550lm
- IP Class
- IP65
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B10>
- Mounting
- Surface, Indoor / Outdoor
Tools
Downloads
Specification sheet
623569
pdf
(Opens in new tab)
Mounting instruction
Largo LED User Manual
pdf
(Opens in new tab)
CE Declaration
Largo
pdf
(Opens in new tab)
Relux file (rolf)
7021986235692_Largo_Graphite_550lm_3000K_Ra_80_Trailing_edge_dimming
rolf
Eulumdat file (ldt)
7021986235692_Largo Graphite 550lm 3000K Ra80 Trailing edge dimming
ldt
Dialux file (uld)
7021986235692_Largo Graphite 550lm 3000K Ra80 Trailing edge dimming
uld
Revit file - Generic
Largo - Generic
rfa
Revit file - Face Based
Largo - faced based
rfa
Electrical
- System wattage
- 10W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
Light technic
- Type of light source
- LED
- Luminous flux
- 550lm
- Efficacy
- 55 lm/W
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- MacAdams factor
- SDCM: 3
- Lifetime
- L70/B10>50,000

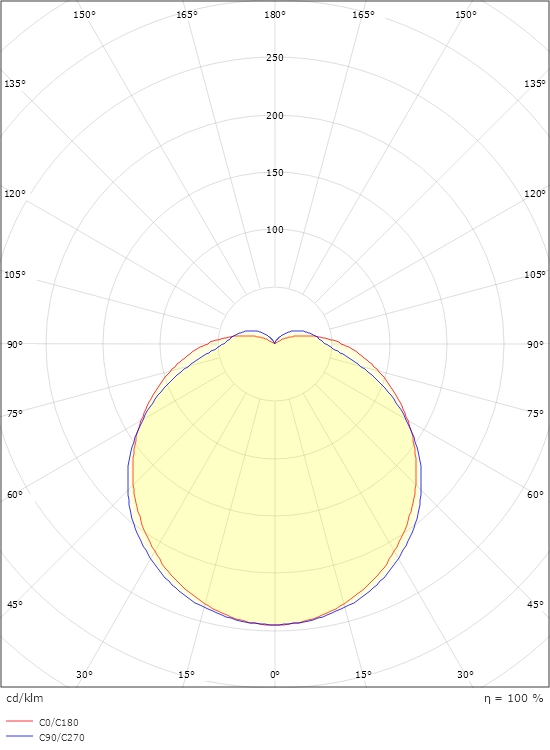

- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 130°
- Photobiological safety
- RG 0
Control/Dimming
- Type
- Trailing edge
Protection
- Luminaire class
- Class II
- IK Class
- IK10
- IP Class
- IP65
- Fire protection class
- 850°C - 30s
Energy and approvals
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
Materials and finish
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
Mounting/Connection
- Mounting
- Surface, Indoor / Outdoor
- Connection
- Screwless terminal block
Dimensions
- Width (mm) W
- 240
- Height (mm) H
- 240
- Depth (D)
- 112
- Weight (kg) gross/net
- 2.28 / 1.9
Packaging
- Packaging dimensions (mm)
- 260 x 260 x 130
