Metro Deco

Metro Deco Graphite 190lm 2700K Ra>80 Trailing edge

Article code
623700
EAN
7021986237009
Back to articlelist

Overview

Efficacy
42 lm/W
Lumen
190lm
IP Class
IP65
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
Lifetime
40,000 L70/B50>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik08
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 623700 Revit file - Generic Metro Deco W90 x H125 x D147 - generic Revit file - Face Based Metro Deco W90 x H125 x D147 - face based

See more

Eulumdat file (ldt) 7021986237009_Metro Deco Graphite 190lm 2700K Ra80 Trailing edge dimming Dialux file (uld) 7021986237009_Metro Deco Graphite 190lm 2700K Ra80 Trailing edge dimming Relux file (rolf) 7021986237009_Metro_Deco_Graphite_190lm_2700K_Ra_80_Trailing_edge_dimming Mounting instruction Metro Deco Mounting instructions CE Declaration Metro Deco

How to specify

Text copied to clipboard

Metro Deco Graphite 190lm 2700K Ra>80 Trailing edge, Article code: 623700, EAN: 7021986237009, IP65, IK08, Electrical: System wattage: 4.5W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 200, B16: 200, C10: 320, C16: 320, Light technic: Type of light source: LED, Socket: GU10, Light source included: Yes, Luminous flux: 190lm, Efficacy: 42 lm/W, Colour temperature: 2700K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 4, Lifetime: L70/B50>40,000, Light distribution: Direct, Optic: Plastic clear, Beam angle: 35°, ULOR (<1%): Yes, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IK Class: IK08, IP Class: IP65, Energy and approvals: Contains light source of energy class: G, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: C+, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 90, Height (mm) H: 125, Depth (D): 147, Weight (kg) gross/net: 1.08 / 0.9, Packaging: Packaging dimensions (mm): 125 x 900 x 125

Electrical

System wattage
4.5W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 200, B16: 200, C10: 320, C16: 320

Light technic

Type of light source
LED
Socket
GU10
Light source included
Yes
Luminous flux
190lm
Efficacy
42 lm/W
Colour temperature
2700K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 4
Lifetime
L70/B50>40,000

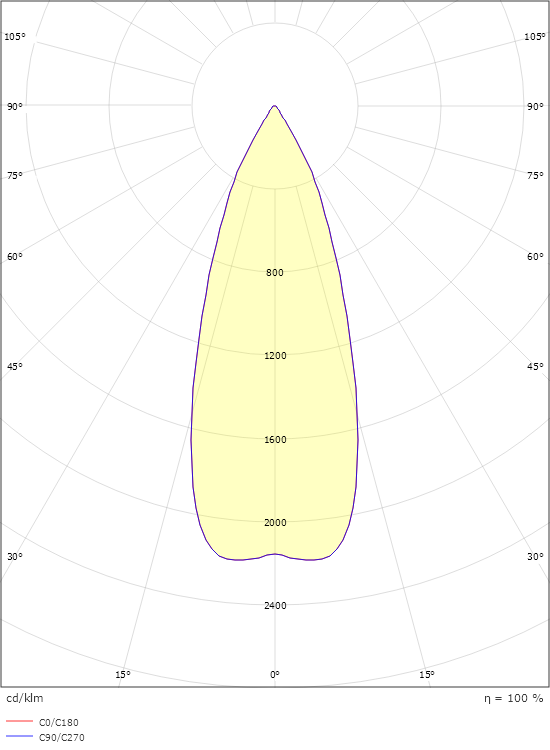

Light distribution
Direct
Optic
Plastic clear
Beam angle
35°
ULOR (<1%)
Yes

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IK Class
IK08
IP Class
IP65

Energy and approvals

Contains light source of energy class
G
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
C+

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
90
Height (mm) H
125
Depth (D)
147
Weight (kg) gross/net
1.08 / 0.9

Packaging

Packaging dimensions (mm)
125 x 900 x 125
