Metro Deco

Metro Deco Graphite 1 x GU10 (No lamp)

Article code
623706
EAN
7021986237061
Back to articlelist

Overview

IP Class
IP65
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik08
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 623706 Mounting instruction Metro Deco Mounting instructions CE Declaration Metro Deco Revit file - Generic Metro Deco W90 x H125 x D147 - generic Revit file - Face Based Metro Deco W90 x H125 x D147 - face based

How to specify

Text copied to clipboard

Metro Deco Graphite 1 x GU10 (No lamp), Article code: 623706, EAN: 7021986237061, IP65, IK08, Electrical: Voltage: 220-240V, Light technic: Socket: GU10, Light source included: No, Light distribution: Direct, Optic: Plastic clear, Beam angle: 35°, ULOR (<1%): Yes, Protection: Luminaire class: Class II, IK Class: IK08, IP Class: IP65, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 90, Height (mm) H: 125, Depth (D): 147, Weight (kg) gross/net: 1.2 / 0.9, Packaging: Packaging dimensions (mm): 160 x 100 x 135

Electrical

Voltage
220-240V

Light technic

Socket
GU10
Light source included
No
Light distribution
Direct
Optic
Plastic clear
Beam angle
35°
ULOR (<1%)
Yes

Protection

Luminaire class
Class II
IK Class
IK08
IP Class
IP65

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Outdoor
Connection
Screwless terminal block

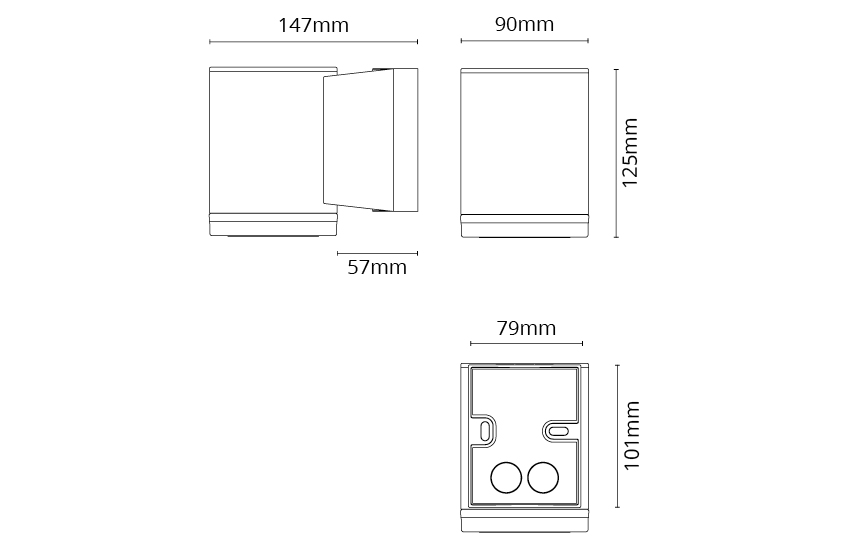

Dimensions

Width (mm) W
90
Height (mm) H
125
Depth (D)
147
Weight (kg) gross/net
1.2 / 0.9

Packaging

Packaging dimensions (mm)
160 x 100 x 135
