Metro Pro

Metro Pro Black 1X 1710lm 3000K Ra>70 On/Off

Article code
611795
EAN
7021986117950
Back to articlelist

Overview

Efficacy
81 lm/W
Lumen
1710lm
IP Class
IP66
Colour temperature
3000K
Colour rendering (Ra)
Ra>70
Lifetime
100,000 L90/B50>
Mounting
Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • el
  • ik07
  • ip66
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 611795 Revit file - Generic Metro pro - generic Revit file - Face Based Metro pro - face based

See more

Eulumdat file (ldt) 7021986117950_Metro Pro Black 1X 1710lm 3000K Ra70 OnOff Dialux file (uld) 7021986117950_Metro Pro Black 1X 1710lm 3000K Ra70 OnOff Relux file (rolf) 7021986117950_Metro_Pro_Black_1X_1710lm_3000K_Ra_70_On_Off Mounting instruction Metro Pro_User Manual CE Declaration Metro Pro

How to specify

Text copied to clipboard

Metro Pro Black 1X 1710lm 3000K Ra>70 On/Off, Article code: 611795, EAN: 7021986117950, IP66, IK07, Electrical: System wattage: 21W, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 1710lm, Efficacy: 81 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>70, MacAdams factor: SDCM: 5, Lifetime: L90/B50>100,000, Light distribution: Direct, Optic: Glass Clear, Beam angle: 42°, ULOR (<1%): Yes, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK07, IP Class: IP66, Surge protection: 3,5/4 kV, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Optics: Tempered glass, Mounting/Connection: Mounting: Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Width (mm) W: 120, Height (mm) H: 296, Depth (D): 210, Weight (kg) gross/net: 3.3 / 2.9, Packaging: Packaging dimensions (mm): 327 x 225 x 135

Electrical

System wattage
21W
Voltage
220-240V
Frequency (Hz)
50/60Hz
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
1710lm
Efficacy
81 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>70
MacAdams factor
SDCM: 5
Lifetime
L90/B50>100,000

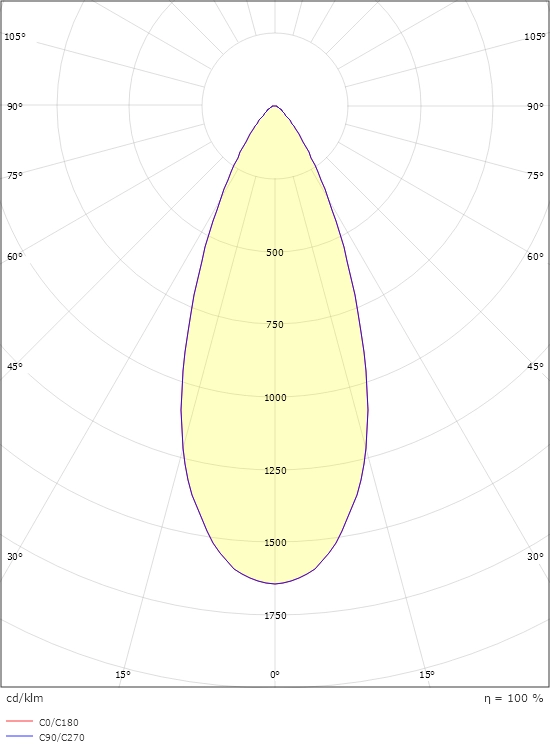

Light distribution
Direct
Optic
Glass Clear
Beam angle
42°
ULOR (<1%)
Yes

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK07
IP Class
IP66
Surge protection
3,5/4 kV

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Optics
Tempered glass

Mounting/Connection

Mounting
Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Width (mm) W
120
Height (mm) H
296
Depth (D)
210
Weight (kg) gross/net
3.3 / 2.9

Packaging

Packaging dimensions (mm)
327 x 225 x 135
