Ray Wall

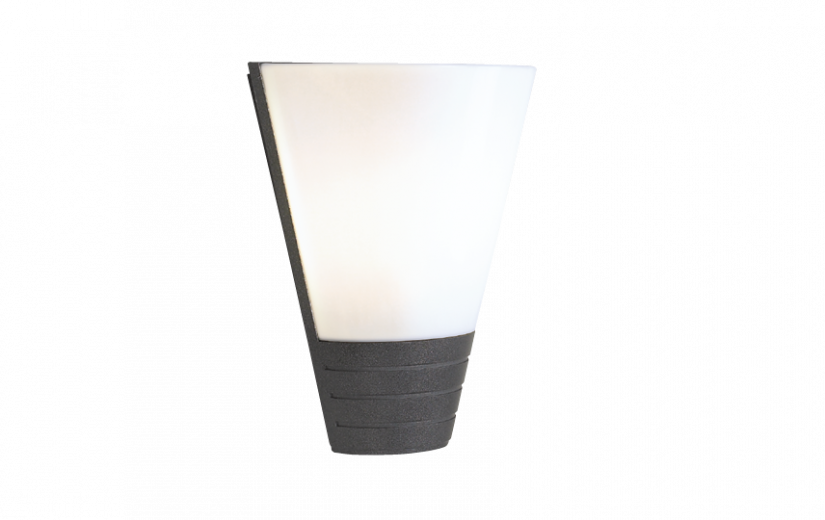

Ray Wall LED Grey 1130lm 3000K Ra>70 On/Off

Article code
8246071235
EAN
5703821007153
Back to articlelist

Overview

Efficacy
63 lm/W
Lumen
1130lm
IP Class
IP54
Colour temperature
3000K
Colour rendering (Ra)
Ra>70
Lifetime
100,000 L90/B10>
Mounting
Wall, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik10
  • ip54
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 8246071235 Mounting instruction Ray Wall_User Manual CE Declaration Ray Wall Relux file (rolf) 5703821007153_Ray_Wall_LED_Grey_1130lm_3000K_Ra_70_On_Off Eulumdat file (ldt) 5703821007153_RayWall18WLED3000KRa70CDOpal-9519 Dialux file (uld) 5703821007153_RayWall18WLED3000KRa70CDOpal Revit file - Generic Ray Wall LED - Generic Revit file - Wall Based Ray Wall LED - Wall based

How to specify

Text copied to clipboard

Ray Wall LED Grey 1130lm 3000K Ra>70 On/Off, Article code: 8246071235, EAN: 5703821007153, IP54, IK10, Electrical: System wattage: 18W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 32, B16: 50, C10: 52, C16: 85, Leakage current (mA): 0.31, Light technic: Type of light source: LED, Luminous flux: 1130lm, Efficacy: 63 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>70, MacAdams factor: SDCM: 4, Lifetime: L90/B10>100,000, Light distribution: Direct, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP54, Surge protection: Integrated (min. 4 kV), Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Die-cast aluminium, Optics: Polycarbonat (PC), Mounting/Connection: Mounting: Wall, Outdoor, Dimensions: Length (mm) L: 189, Width (mm) W: 322, Height (mm) H: 381, Weight (kg) gross/net: 4.2 / 4, Packaging: Packaging dimensions (mm): 400 x 350 x 200

Electrical

System wattage
18W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 32, B16: 50, C10: 52, C16: 85
Leakage current (mA)
0.31

Light technic

Type of light source
LED
Luminous flux
1130lm
Efficacy
63 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>70
MacAdams factor
SDCM: 4
Lifetime
L90/B10>100,000

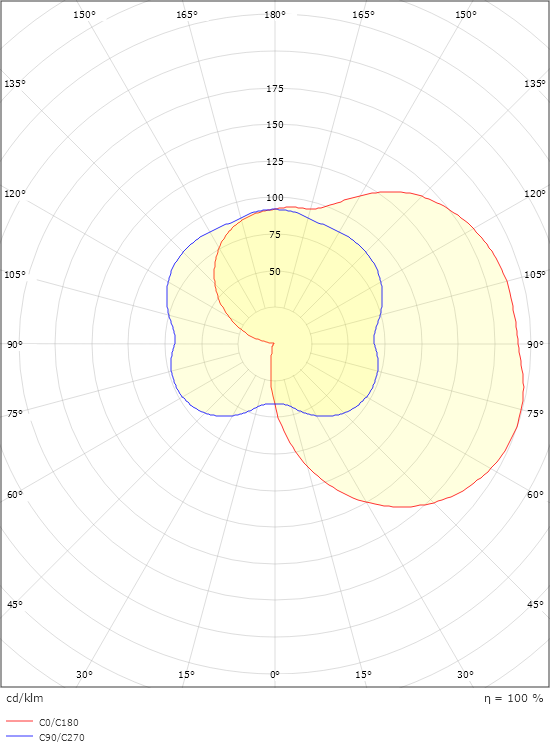

Light distribution
Direct

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP54
Surge protection
Integrated (min. 4 kV)

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Die-cast aluminium
Optics
Polycarbonat (PC)

Mounting/Connection

Mounting
Wall, Outdoor

Dimensions

Length (mm) L
189
Width (mm) W
322
Height (mm) H
381
Weight (kg) gross/net
4.2 / 4

Packaging

Packaging dimensions (mm)
400 x 350 x 200
