Sidewalk

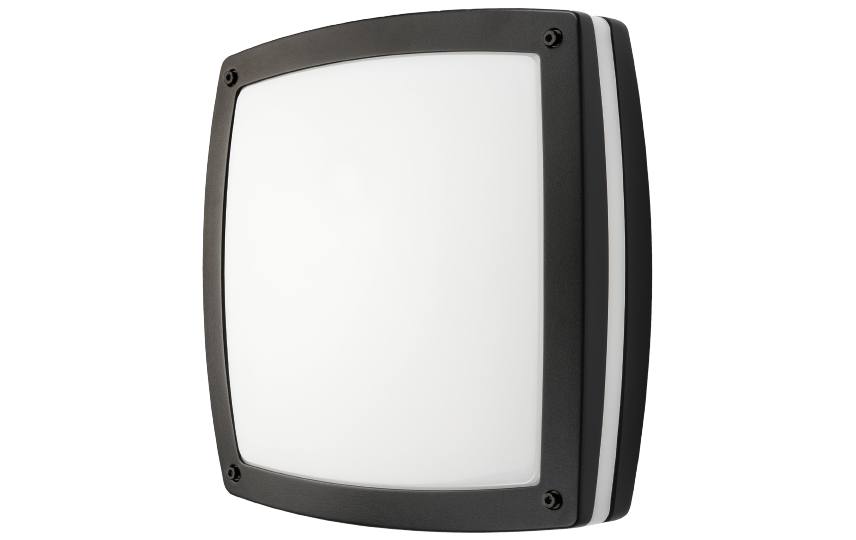

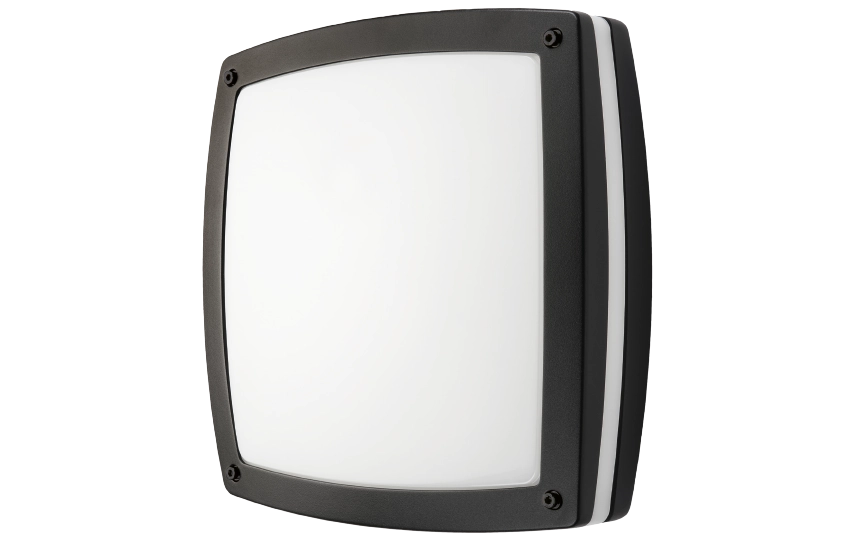

Sidewalk 2000 Black 1380lm 4000K Ra>80 Trailing edge

Article code
644832
EAN
7021986448320
Back to articlelist

Overview

Efficacy
99 lm/W
Lumen
1380lm
IP Class
IP65
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B50>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • dipswitch
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 644832 Eulumdat file (ldt) 7021986448320_Sidewalk 2000 Black 1380lm 4000K Ra80 Trailing edge dimming Dialux file (uld) 7021986448320_Sidewalk 2000 Black 1380lm 4000K Ra80 Trailing edge dimming

See more

Relux file (rolf) 7021986448320_Sidewalk_2000_Black_1380lm_4000K_Ra_80_Trailing_edge_dimming Revit file - Generic Sidewalk- generic Revit file - Face Based Sidewalk - face based Mounting instruction Sidewalk_User Manual CE Declaration Sidewalk

How to specify

Text copied to clipboard

Sidewalk 2000 Black 1380lm 4000K Ra>80 Trailing edge, Article code: 644832, EAN: 7021986448320, IP65, IK10, Electrical: System wattage: 14W, Voltage: 220-240V, Light technic: Type of light source: LED, Luminous flux: 1380lm, Efficacy: 99 lm/W, Colour temperature: 4000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B50>100,000, Light distribution: Direct, Optic: Opal, Beam angle: 110°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: D, Breeam: Fulfils Hea 01 for flicker free lighting, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Module: 2000, Connection: Screwless terminal block, Dimensions: Length (mm) L: 300, Width (mm) W: 300, Height (mm) H: 87, Weight (kg) gross/net: 3 / 2.28, Packaging: Packaging dimensions (mm): 310 x 310 x 100

Electrical

System wattage
14W
Voltage
220-240V

Light technic

Type of light source
LED
Luminous flux
1380lm
Efficacy
99 lm/W
Colour temperature
4000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B50>100,000

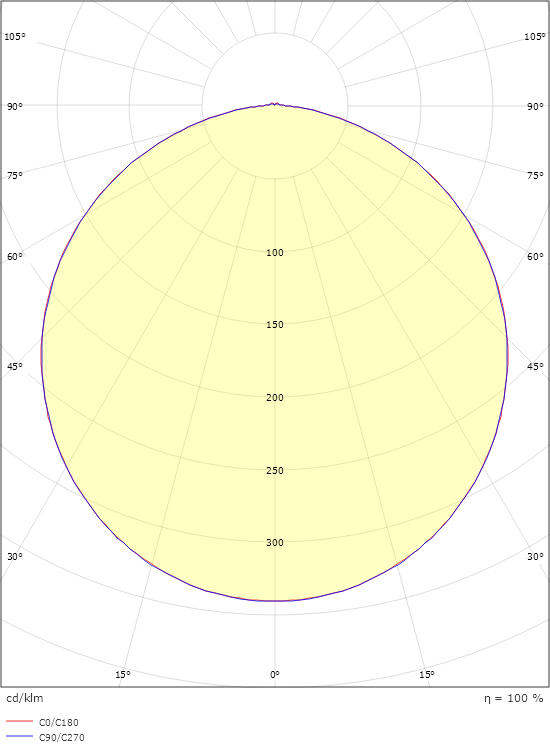

Light distribution
Direct
Optic
Opal
Beam angle
110°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
D
Breeam
Fulfils Hea 01 for flicker free lighting

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Module
2000
Connection
Screwless terminal block

Dimensions

Length (mm) L
300
Width (mm) W
300
Height (mm) H
87
Weight (kg) gross/net
3 / 2.28

Packaging

Packaging dimensions (mm)
310 x 310 x 100
