Sidewalk

Sidewalk 2000 Graphite 1250lm 3000K Ra>80 On/Off

Article code
623839
EAN
7021986238396
Back to articlelist

Overview

Efficacy
66 lm/W
Lumen
1250lm
IP Class
IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
100,000 L70/B50>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 623839 Eulumdat file (ldt) 7021986238396_Sidewalk 2000 Graphite 1300lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986238396_Sidewalk 2000 Graphite 1300lm 3000K Ra80 Trailing edge dimming

See more

Relux file (rolf) 7021986238396_Sidewalk_2000_Graphite_1300lm_3000K_Ra_80_Trailing_edge_dimming Revit file - Generic Sidewalk- generic Revit file - Face Based Sidewalk - face based Mounting instruction Sidewalk_User Manual CE Declaration Sidewalk

How to specify

Text copied to clipboard

Sidewalk 2000 Graphite 1250lm 3000K Ra>80 On/Off, Article code: 623839, EAN: 7021986238396, IP65, IK10, Electrical: System wattage: 19W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 19, B16: 30, C10: 31, C16: 51, Light technic: Type of light source: LED, Luminous flux: 1250lm, Efficacy: 66 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B50>100,000, Light distribution: Direct, Optic: Opal, Beam angle: 110°, Control/Dimming: Type: On/Off, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: C, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Module: 2000, Connection: Screwless terminal block, Dimensions: Length (mm) L: 300, Width (mm) W: 300, Height (mm) H: 87, Weight (kg) gross/net: 3.588 / 3, Packaging: Packaging dimensions (mm): 310 x 310 x 100

Electrical

System wattage
19W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 19, B16: 30, C10: 31, C16: 51

Light technic

Type of light source
LED
Luminous flux
1250lm
Efficacy
66 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B50>100,000

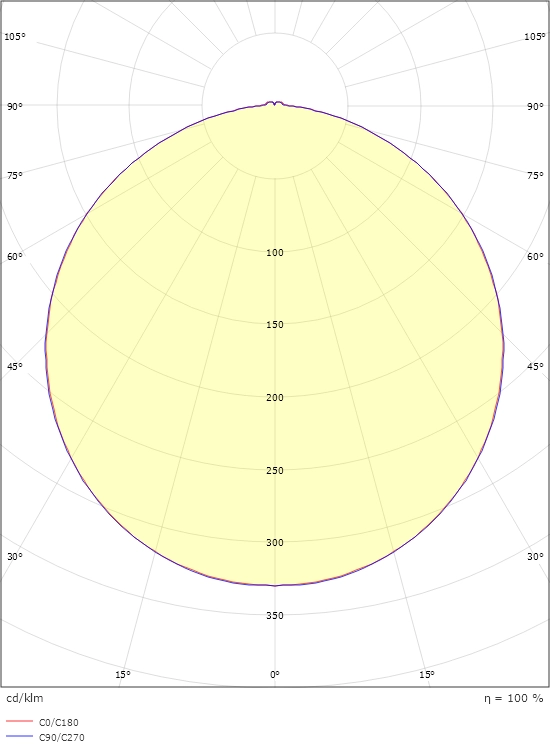

Light distribution
Direct
Optic
Opal
Beam angle
110°

Control/Dimming

Type
On/Off

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
C

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Module
2000
Connection
Screwless terminal block

Dimensions

Length (mm) L
300
Width (mm) W
300
Height (mm) H
87
Weight (kg) gross/net
3.588 / 3

Packaging

Packaging dimensions (mm)
310 x 310 x 100
