Spike

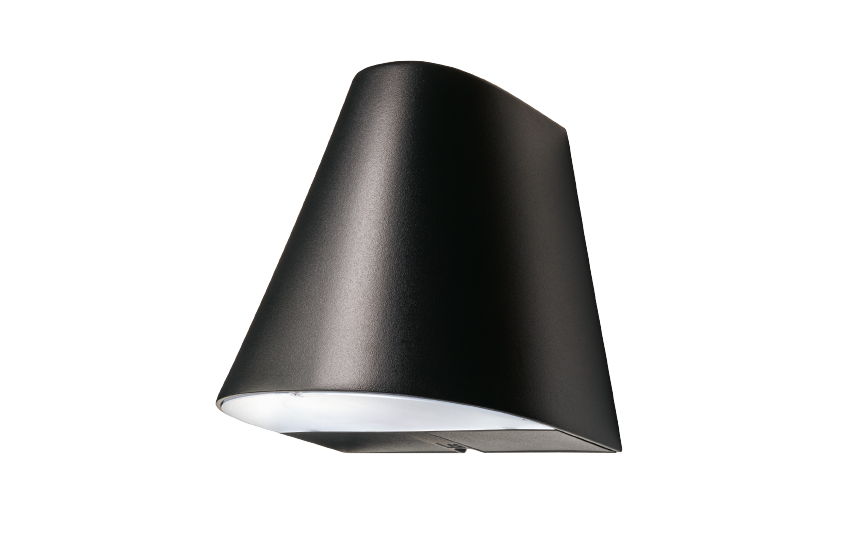

Spike Black 840lm 3000K Ra>80 Twilight

Article code
614920
EAN
7021986149203
Back to articlelist

Overview

Efficacy
76 lm/W
Lumen
840lm
IP Class
IP44
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L70/B50>
Mounting
Surface, Outdoor
    5 years corrosion warranty 5 years Warranty
  • outdoor
  • ik08
  • ip44
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 614920 Eulumdat file (ldt) 7021986149203_Spike Black Twilight 840lm 3000K Ra80 Dialux file (uld) 7021986149203_Spike Black Twilight 840lm 3000K Ra80

See more

Relux file (rolf) 7021986149203_Spike_Black_Twilight_840lm_3000K_Ra_80_On_Off Revit file - Generic Spike_2021 - generic Revit file - Face Based Spike - face based Mounting instruction Spike_User Manual CE Declaration Spike

How to specify

Text copied to clipboard

Spike Black 840lm 3000K Ra>80 Twilight, Article code: 614920, EAN: 7021986149203, IP44, IK08, Electrical: System wattage: 11W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 33, B16: 52, C10: 40, C16: 64, Light technic: Type of light source: LED, Luminous flux: 840lm, Efficacy: 76 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B50>50,000, Light distribution: Direct, Optic: Opal, Beam angle: 95°, ULOR (<1%): Yes, Control/Dimming: Type: Twilight, Protection: Luminaire class: Class I, IK Class: IK08, IP Class: IP44, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: C+, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 180, Width (mm) W: 171, Height (mm) H: 173, Depth (D): 155, Weight (kg) gross/net: 1.86 / 1.75, Packaging: Packaging dimensions (mm): 180 x 165 x 185

Electrical

System wattage
11W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 33, B16: 52, C10: 40, C16: 64

Light technic

Type of light source
LED
Luminous flux
840lm
Efficacy
76 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B50>50,000

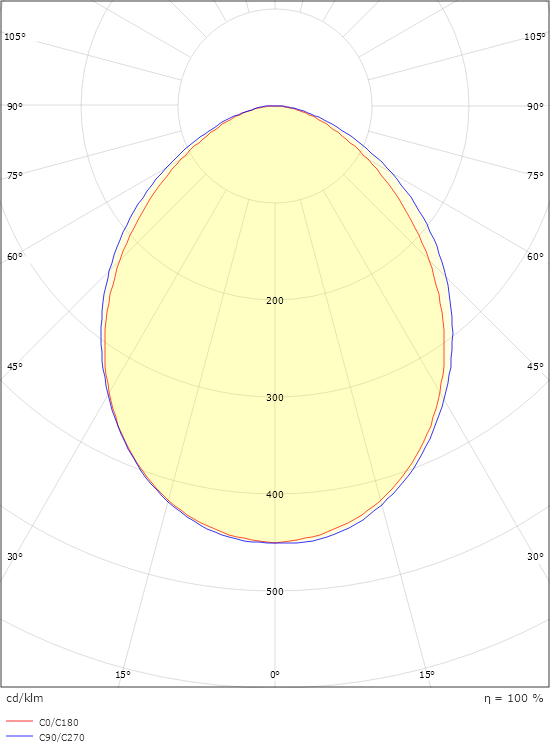

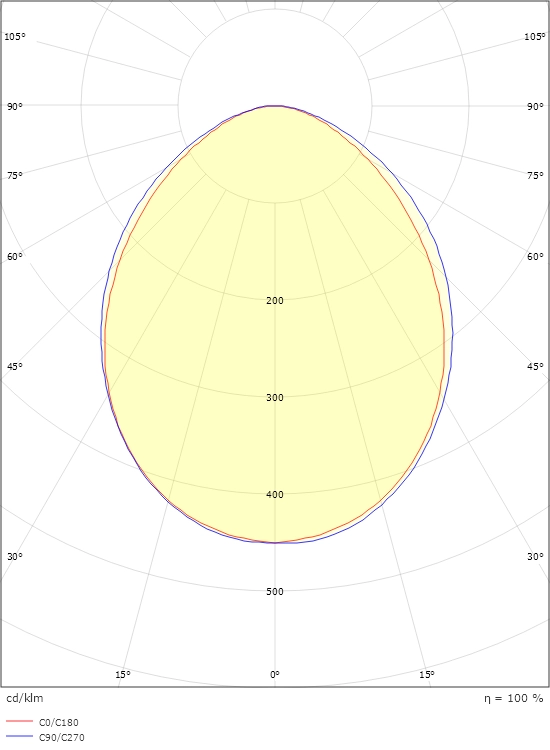

Light distribution
Direct
Optic
Opal
Beam angle
95°
ULOR (<1%)
Yes

Control/Dimming

Type
Twilight

Protection

Luminaire class
Class I
IK Class
IK08
IP Class
IP44

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
C+

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Outdoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
180
Width (mm) W
171
Height (mm) H
173
Depth (D)
155
Weight (kg) gross/net
1.86 / 1.75

Packaging

Packaging dimensions (mm)
180 x 165 x 185
