Trio Mini

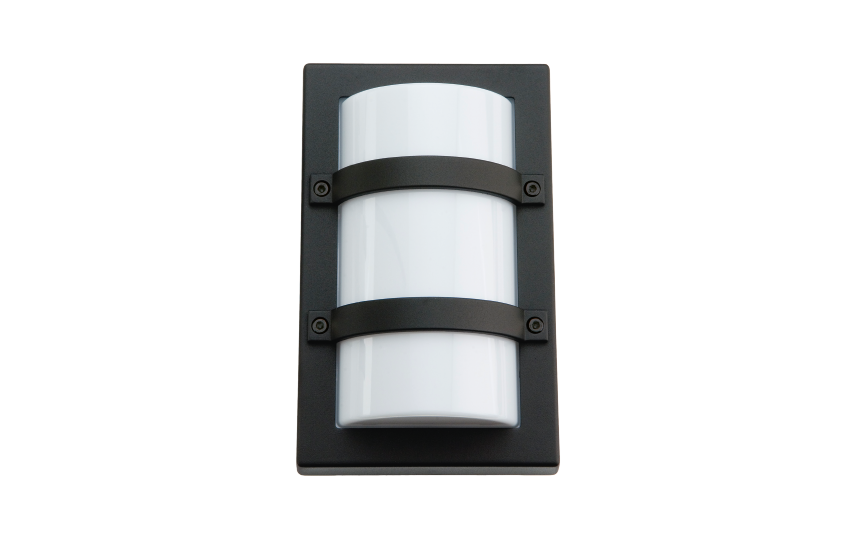

Trio Mini Black E27

Article code
624520
EAN
7021986245202
Back to articlelist

Overview

Wattage
Max 30W
IP Class
IP65
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 624520 Revit file - Generic Trio Mini - Generic Revit file - Face Based Trio mini - face based

See more

Mounting instruction Trio, Trio Mini_User manual CE Declaration Trio Mini

How to specify

Text copied to clipboard

Trio Mini Black E27, Article code: 624520, EAN: 7021986245202, IP65, IK10, Electrical: Wattage: Max 30W, Voltage: 220-240V, Light technic: Socket: E27, Light source included: No, Light distribution: Direct, Optic: Opal, Beam angle: 130°, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Fire protection class: 850°C - 30s, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 240, Width (mm) W: 150, Height (mm) H: 98, Depth (D): 98, Weight (kg) gross/net: 1.404 / 1.17, Packaging: Packaging dimensions (mm): 248 x 157 x 115

Electrical

Wattage
Max 30W
Voltage
220-240V

Light technic

Socket
E27
Light source included
No
Light distribution
Direct
Optic
Opal
Beam angle
130°

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65
Fire protection class
850°C - 30s

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
240
Width (mm) W
150
Height (mm) H
98
Depth (D)
98
Weight (kg) gross/net
1.404 / 1.17

Packaging

Packaging dimensions (mm)
248 x 157 x 115
