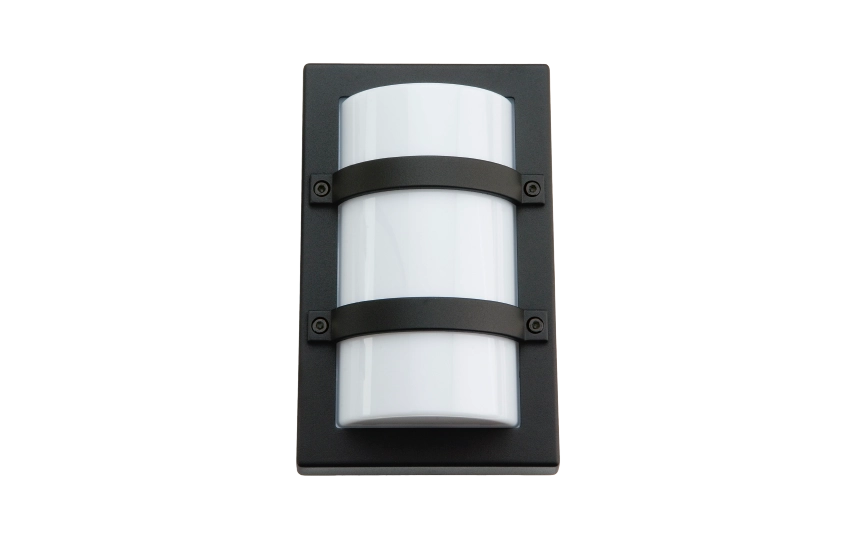

Trio Mini

Trio Mini Black 460lm 3000K Ra>80 Trailing edge

Article code
624522
EAN
7021986245226
Back to articlelist

Overview

Efficacy
46 lm/W
Lumen
460lm
IP Class
IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L70/B50>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 624522 Eulumdat file (ldt) 7021986245226_Trio Mini Black 460lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986245226_Trio Mini Black 460lm 3000K Ra80 Trailing edge dimming

See more

Relux file (rolf) 7021986245226_Trio_Mini_Black_460lm_3000K_Ra_80_Trailing_edge_dimming Revit file - Generic Trio Mini - Generic Revit file - Face Based Trio mini - face based Mounting instruction Trio, Trio Mini_User manual CE Declaration Trio Mini

How to specify

Text copied to clipboard

Trio Mini Black 460lm 3000K Ra>80 Trailing edge, Article code: 624522, EAN: 7021986245226, IP65, IK10, Electrical: System wattage: 10W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 33, B16: 52, C10: 40, C16: 64, Light technic: Type of light source: LED, Luminous flux: 460lm, Efficacy: 46 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B50>50,000, Light distribution: Direct, Optic: Opal, Beam angle: 130°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 248, Width (mm) W: 150, Height (mm) H: 248, Depth (D): 98, Weight (kg) gross/net: 1.74 / 1.44, Packaging: Packaging dimensions (mm): 248 x 157 x 115

Electrical

System wattage
10W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 33, B16: 52, C10: 40, C16: 64

Light technic

Type of light source
LED
Luminous flux
460lm
Efficacy
46 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B50>50,000

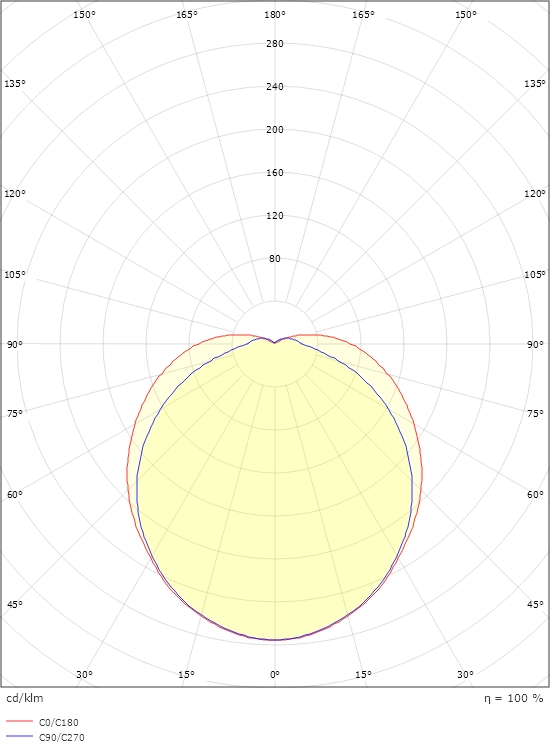

Light distribution
Direct
Optic
Opal
Beam angle
130°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
248
Width (mm) W
150
Height (mm) H
248
Depth (D)
98
Weight (kg) gross/net
1.74 / 1.44

Packaging

Packaging dimensions (mm)
248 x 157 x 115
