Trio Socket

Trio Socket Graphite w/ 2 x outlet 450lm 3000K Ra>80 Trailing edge

Article code
623525
EAN
7021986235258
Back to articlelist

Overview

Efficacy
45 lm/W
Lumen
450lm
IP Class
IP44
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L70/B10>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik10
  • ip44
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 623525 Revit file - Generic Trio Socket - generic Revit file - Face Based Trio Socket - face based

See more

Eulumdat file (ldt) 7021986235258_Trio Socket Graphite w 2 x outlet 450lm 3000K Ra80 Trailing edge dimming Dialux file (uld) 7021986235258_Trio Socket Graphite w 2 x outlet 450lm 3000K Ra80 Trailing edge dimming Relux file (rolf) 7021986235258_Trio_Socket_Graphite_w__2_x_outlet_450lm_3000K_Ra_80_Trailing_edge_dimming Mounting instruction Trio Socket_Mounting Instructions CE Declaration Trio Socket

How to specify

Text copied to clipboard

Trio Socket Graphite w/ 2 x outlet 450lm 3000K Ra>80 Trailing edge, Article code: 623525, EAN: 7021986235258, IP44, IK10, Electrical: System wattage: 10W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 33, B16: 52, C10: 40, C16: 64, Light technic: Type of light source: LED, Luminous flux: 450lm, Efficacy: 45 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B10>50,000, Light distribution: Direct, Optic: Opal, Beam angle: 120°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP44, Energy and approvals: Contains light source of energy class: C, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Sunda Hus: C+, Materials and finish: Housing: Aluminium, Colour: Graphite, Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 320, Width (mm) W: 180, Height (mm) H: 320, Depth (D): 102, Weight (kg) gross/net: 1.9 / 1.625, Packaging: Packaging dimensions (mm): 330 x 190 x 110

Electrical

System wattage
10W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 33, B16: 52, C10: 40, C16: 64

Light technic

Type of light source
LED
Luminous flux
450lm
Efficacy
45 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B10>50,000
Light distribution
Direct
Optic
Opal
Beam angle
120°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP44

Energy and approvals

Contains light source of energy class
C
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes
Sunda Hus
C+

Materials and finish

Housing
Aluminium
Colour
Graphite
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

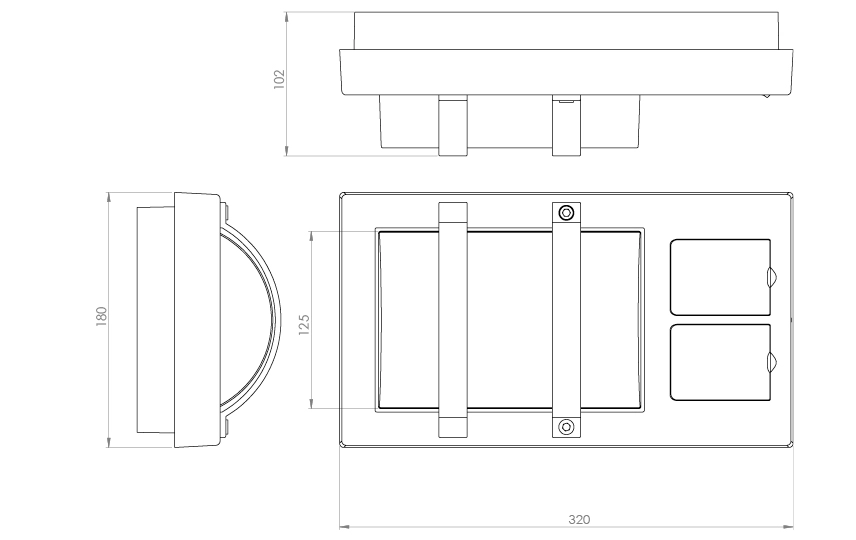

Dimensions

Length (mm) L
320
Width (mm) W
180
Height (mm) H
320
Depth (D)
102
Weight (kg) gross/net
1.9 / 1.625

Packaging

Packaging dimensions (mm)
330 x 190 x 110
