Trio

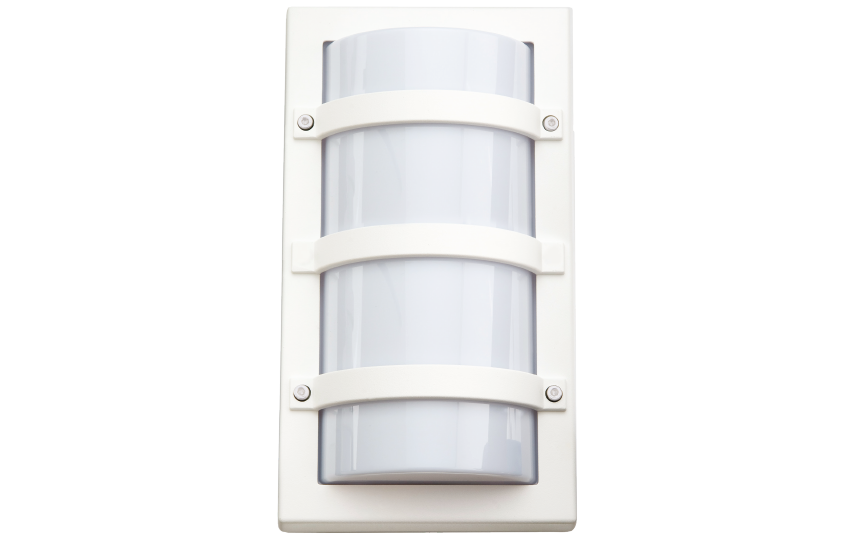

Trio White E27

Article code
611520
EAN
7021986115208
Back to articlelist

Overview

Wattage
Max 46W
IP Class
IP65
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik10
  • ip65
  • klasse_1
  • ce

Tools

Downloads

Specification sheet 611520 Revit file - Generic Trio - Generic Revit file - Face Based Trio - face based

See more

Mounting instruction Trio, Trio Mini_User manual CE Declaration Trio

How to specify

Text copied to clipboard

Trio White E27, Article code: 611520, EAN: 7021986115208, IP65, IK10, Electrical: Wattage: Max 46W, Voltage: 220-240V, Light technic: Socket: E27, Light source included: No, Light distribution: Direct, Optic: Opal, Beam angle: 130°, Protection: Luminaire class: Class I, IK Class: IK10, IP Class: IP65, Fire protection class: 850°C - 30s, Materials and finish: Housing: Aluminium, Colour: White (RAL 9003), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Length (mm) L: 320, Width (mm) W: 180, Height (mm) H: 320, Depth (D): 102, Weight (kg) gross/net: 1.908 / 1.59, Packaging: Packaging dimensions (mm): 330 x 190 x 110

Electrical

Wattage
Max 46W
Voltage
220-240V

Light technic

Socket
E27
Light source included
No
Light distribution
Direct
Optic
Opal
Beam angle
130°

Protection

Luminaire class
Class I
IK Class
IK10
IP Class
IP65
Fire protection class
850°C - 30s

Materials and finish

Housing
Aluminium
Colour
White (RAL 9003)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Length (mm) L
320
Width (mm) W
180
Height (mm) H
320
Depth (D)
102
Weight (kg) gross/net
1.908 / 1.59

Packaging

Packaging dimensions (mm)
330 x 190 x 110
