Uno

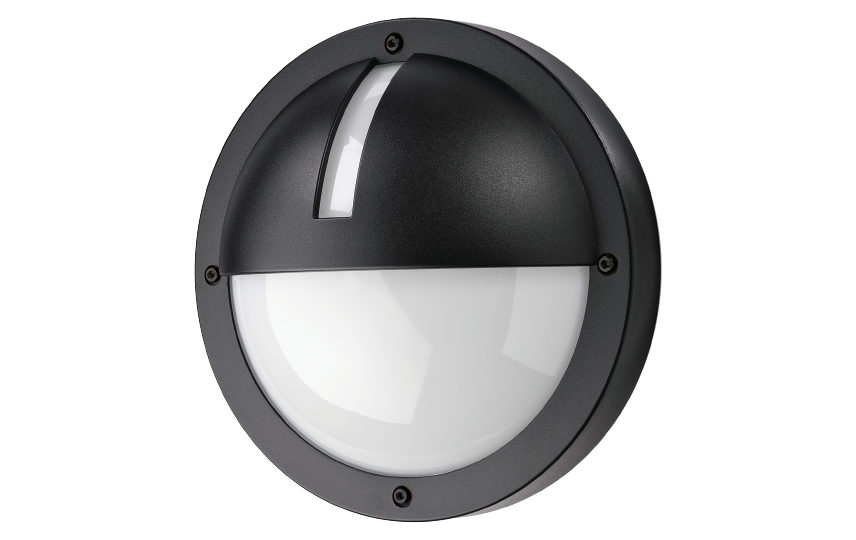

Uno 1100 Black 420lm 3000K Ra>80 Sensor

Article code
644641
EAN
7021986446418
=

This article is produced by order, with an expected delivery time of 3-4 weeks

Back to articlelist

Overview

Efficacy
42 lm/W
Lumen
420lm
IP Class
IP65
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
Lifetime
50,000 L70/B10>
Mounting
Surface, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • ik10
  • ip65
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 644641 Mounting instruction Uno sensor mounting instructions Eulumdat file (ldt) 7021986446418_Uno 1100 Black Sensor 420lm 3000K Ra80 OnOff

See more

Dialux file (uld) 7021986446418_Uno 1100 Black Sensor 420lm 3000K Ra80 OnOff Relux file (rolf) 7021986446418_Uno_1100_Black_Sensor_420lm_3000K_Ra_80_On_Off Revit file - Generic Uno - Generic Revit file - Face Based Uno - faced based CE Declaration Uno

How to specify

Text copied to clipboard

Uno 1100 Black 420lm 3000K Ra>80 Sensor, Article code: 644641, EAN: 7021986446418, IP65, IK10, Electrical: System wattage: 10W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 33, B16: 52, C10: 40, C16: 64, Light technic: Type of light source: LED, Luminous flux: 420lm, Efficacy: 42 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>80, MacAdams factor: SDCM: 3, Lifetime: L70/B10>50,000, Light distribution: Direct, Optic: Opal, Control/Dimming: Type: Sensor, Protection: Luminaire class: Class II, IK Class: IK10, IP Class: IP65, Fire protection class: 850°C - 30s, Energy and approvals: Contains light source of energy class: C, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: UV-stabilized polycarbonate, Mounting/Connection: Mounting: Surface, Indoor / Outdoor, Module: 1100, Connection: Screwless terminal block, Dimensions: Diameter (mm) D: 270, Depth (D): 130, Weight (kg) gross/net: 2.05 / 1.75, Packaging: Packaging dimensions (mm): 270 x 270 x 142

Electrical

System wattage
10W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 33, B16: 52, C10: 40, C16: 64

Light technic

Type of light source
LED
Luminous flux
420lm
Efficacy
42 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>80
MacAdams factor
SDCM: 3
Lifetime
L70/B10>50,000

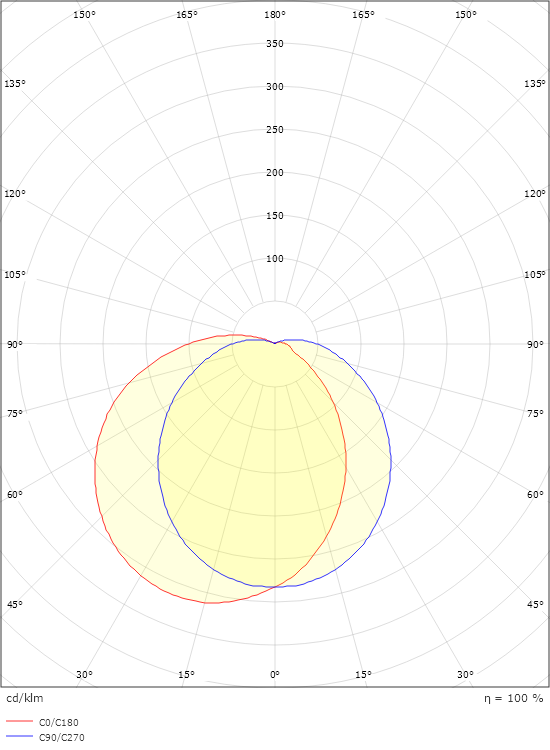

Light distribution
Direct
Optic
Opal

Control/Dimming

Type
Sensor

Protection

Luminaire class
Class II
IK Class
IK10
IP Class
IP65
Fire protection class
850°C - 30s

Energy and approvals

Contains light source of energy class
C

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
UV-stabilized polycarbonate

Mounting/Connection

Mounting
Surface, Indoor / Outdoor
Module
1100
Connection
Screwless terminal block

Dimensions

Diameter (mm) D
270
Depth (D)
130
Weight (kg) gross/net
2.05 / 1.75

Packaging

Packaging dimensions (mm)
270 x 270 x 142
