Outlet, recessed outdoor IP44

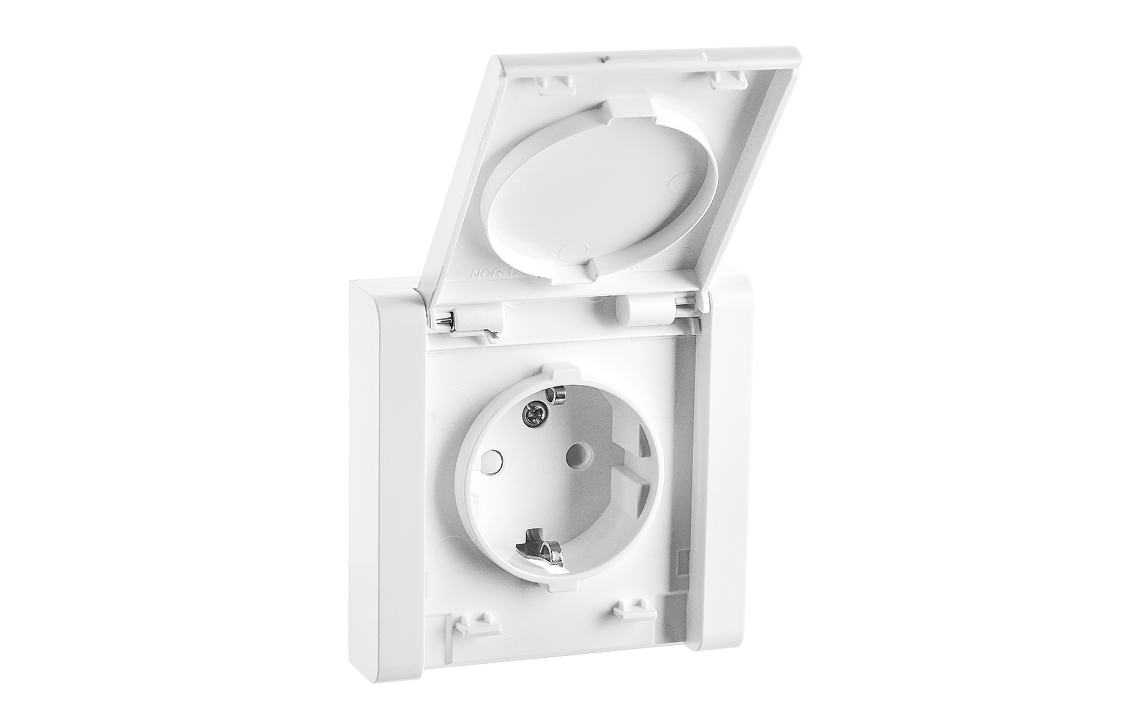

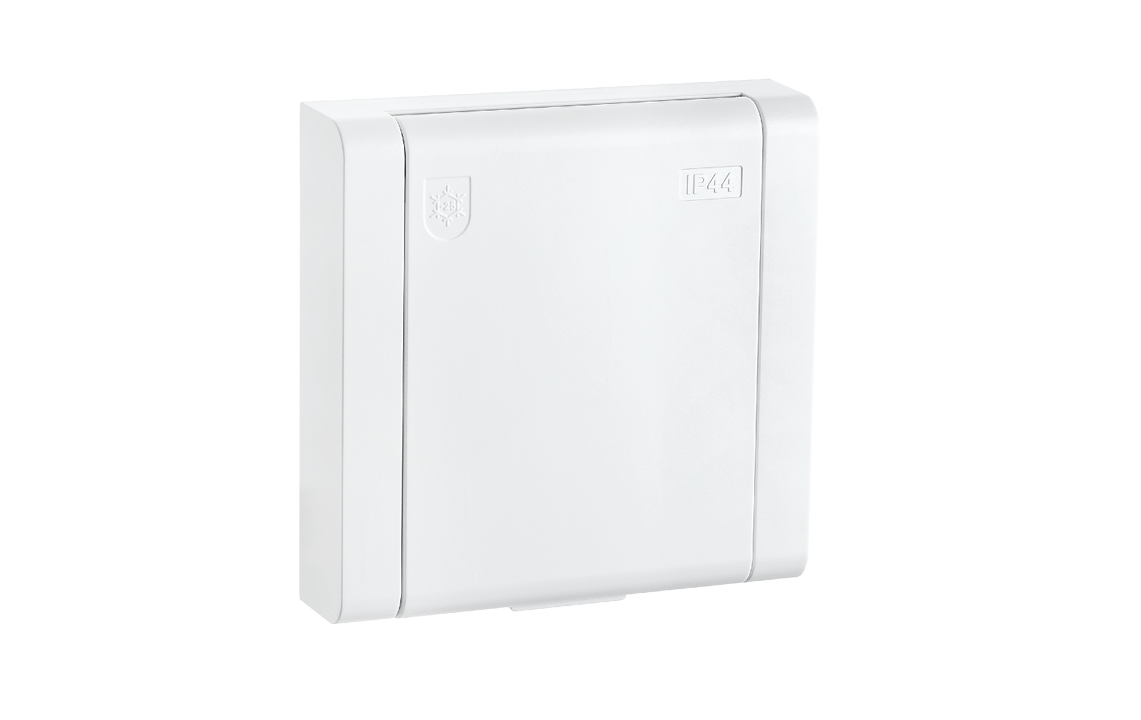

Outlet recessed White IP44 Single Grounded

Article code
77080
EAN
7021987708010
Back to articlelist

Overview

IP Class
IP44
Mounting
Indoor / Outdoor
    5 years Warranty
  • indoor
  • outdoor
  • ip44
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77080 Mounting instruction IP44_Outlet_User Manual EPD NEPD-8235-7895_Outlet-Flush-Mounted-Double CE Declaration CE251014D_Outlet IP44

How to specify

Text copied to clipboard

Outlet recessed White IP44 Single Grounded, Article code: 77080, EAN: 7021987708010, IP44, Electrical: Voltage: 250V, Nominal current: 16A, Protection: IP Class: IP44, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Mounting: Indoor / Outdoor, Dimensions: Length (mm) L: 80, Width (mm) W: 80, Height (mm) H: 41, Weight (kg) gross/net: 0.127 / 0.104, Packaging: Packaging dimensions (mm): 80 x 80 x 41, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A

Protection

IP Class
IP44

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Mounting
Indoor / Outdoor

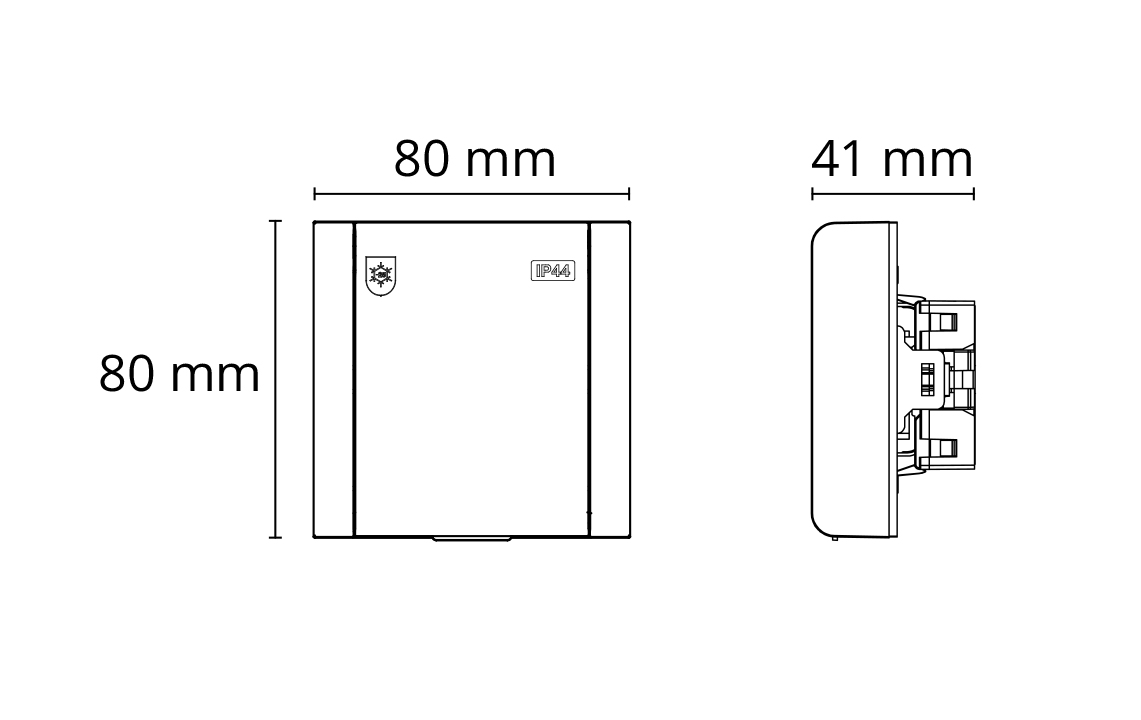

Dimensions

Length (mm) L
80
Width (mm) W
80
Height (mm) H
41
Weight (kg) gross/net
0.127 / 0.104

Packaging

Packaging dimensions (mm)
80 x 80 x 41
Number per pack
6
