Outlet, recessed

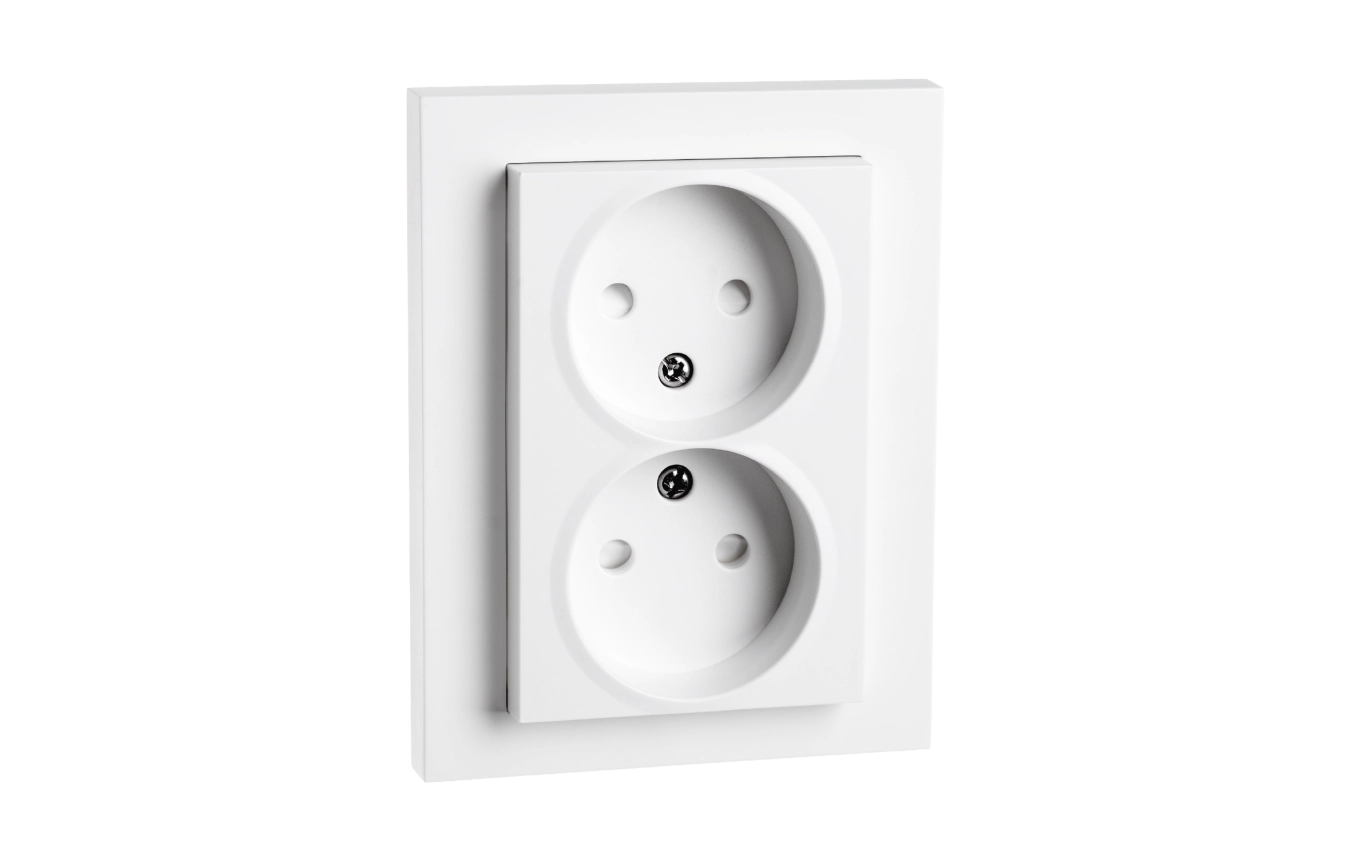

Outlet flush mounted double White Rehab without Earth

Article code
77062
EAN
7021987706214
Back to articlelist

Overview

IP Class
IP21
Mounting
Recessed, Indoor
  • indoor
  • ip21
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77062 Mounting instruction Outlet_User Manual EPD NEPD-11887-11847_Outlet-Flush-Mounted-Double-Rehab CE Declaration CE251014C_Recessed schuko outlet

How to specify

Text copied to clipboard

Outlet flush mounted double White Rehab without Earth, Article code: 77062, EAN: 7021987706214, IP21, Electrical: Voltage: 250V, Nominal current: 16A, Max fuse size: 16A, Protection: IP Class: IP21, Energy and approvals: BVB: Yes, Sunda Hus: C+, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Extra blind connectors: No, Frame: complete, Mounting: Recessed, Indoor, Max number of conductors: 6, Dimensions: Length (mm) L: 108, Width (mm) W: 84, Height (mm) H: 36, Weight (kg) gross/net: 0.12 / 0.101, Packaging: Packaging dimensions (mm): 108 x 84 x 36, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A
Max fuse size
16A

Protection

IP Class
IP21

Energy and approvals

BVB
Yes
Sunda Hus
C+

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Extra blind connectors
No
Frame
complete
Mounting
Recessed, Indoor
Max number of conductors
6

Dimensions

Length (mm) L
108
Width (mm) W
84
Height (mm) H
36
Weight (kg) gross/net
0.12 / 0.101

Packaging

Packaging dimensions (mm)
108 x 84 x 36
Number per pack
6
