Outlet, recessed

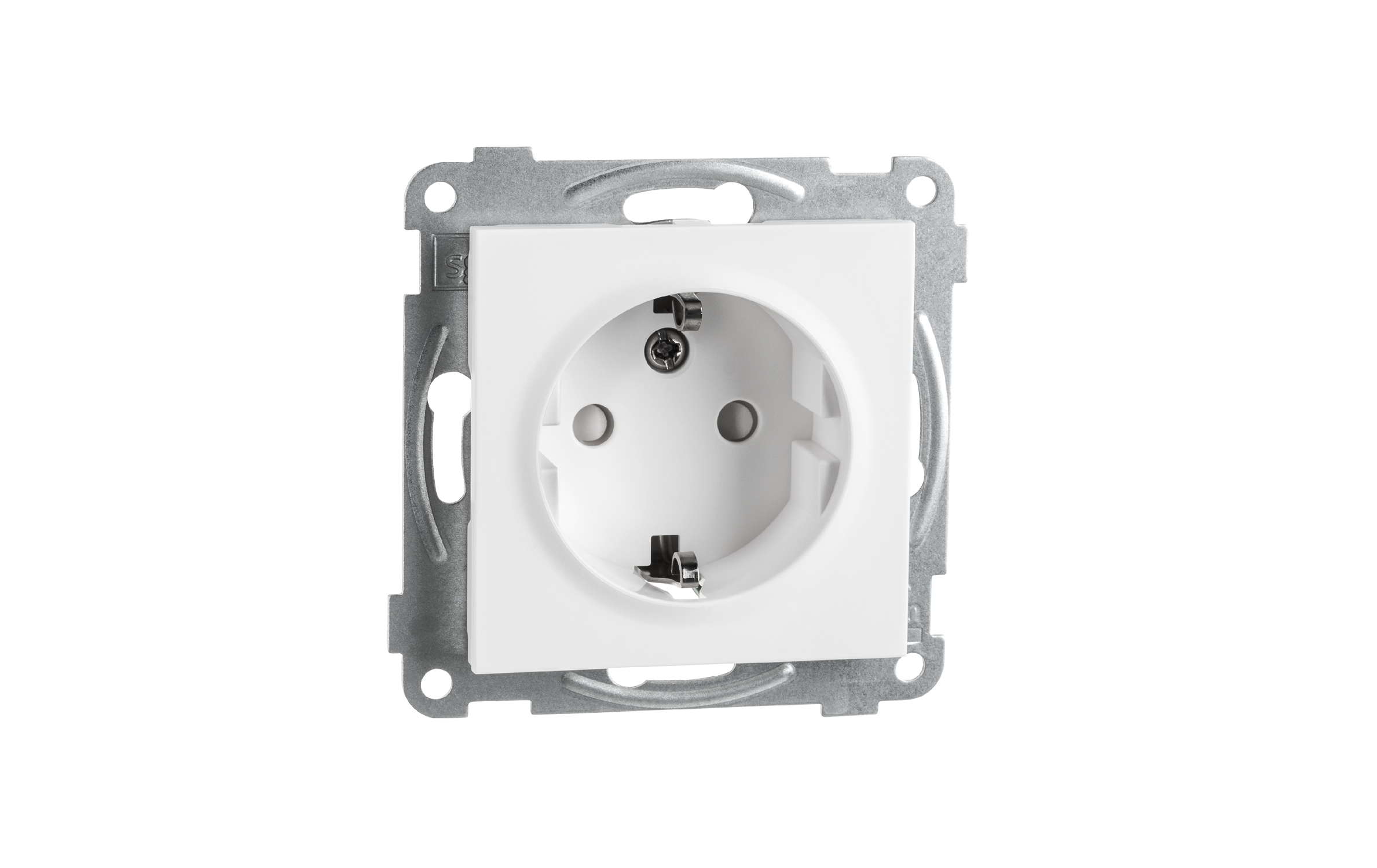

Outlet recessed White Single Grounded

SG code
77002
EAN
7021987700212
Back to articlelist

Overview

IP Class
IP21
    5 years Warranty
  • ip21
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77002 Mounting instruction Outlet_User Manual Mounting instruction Outlet_User Manual CE Declaration CE251014C_Recessed schuko outlet

How to specify

Text copied to clipboard

Outlet recessed White Single Grounded, Article code: 77002, EAN: 7021987700212, IP21, Electrical: Voltage: 250V, Nominal current: 16A, Protection: IP Class: IP21, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Extra blind connectors: No, Frame: not included, Max number of conductors: 2, Dimensions: Length (mm) L: 75, Width (mm) W: 75, Height (mm) H: 39, Weight (kg) gross/net: 0.0872 / 0.065, Packaging: Packaging dimensions (mm): 75 x 75 x 39, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A

Protection

IP Class
IP21

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Extra blind connectors
No
Frame
not included
Max number of conductors
2

Dimensions

Length (mm) L
75
Width (mm) W
75
Height (mm) H
39
Weight (kg) gross/net
0.0872 / 0.065

Packaging

Packaging dimensions (mm)
75 x 75 x 39
Number per pack
6
