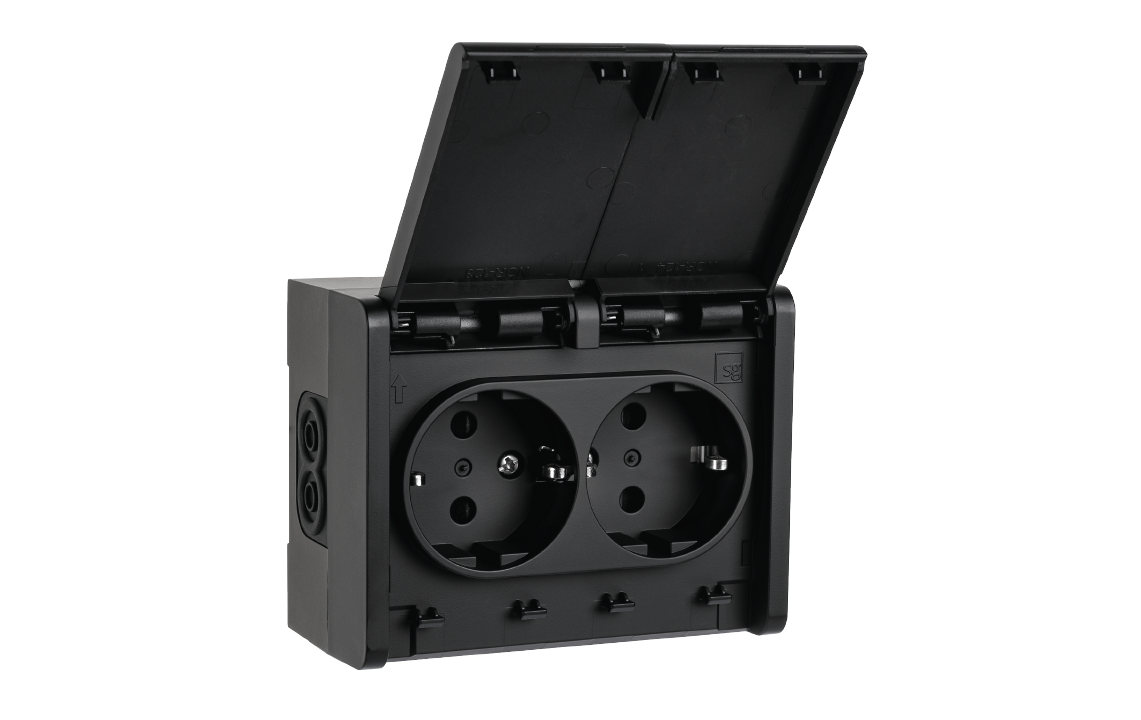

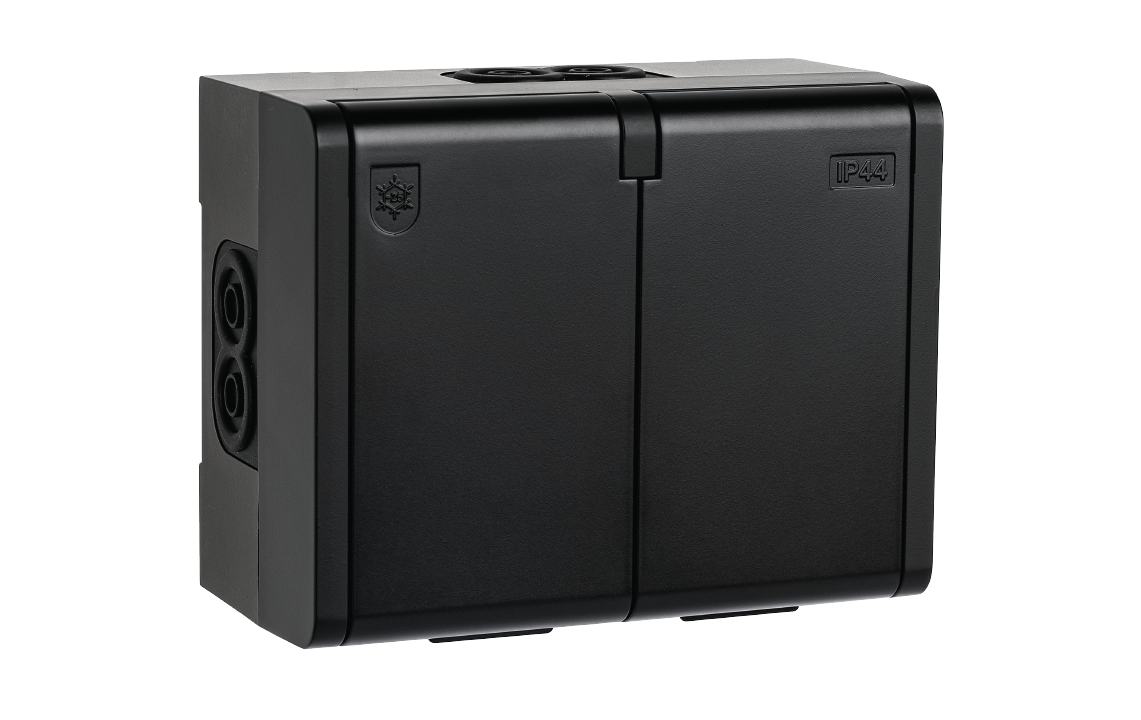

Outlet, surface outdoor IP44

Outlet surface Black IP44 Double Grounded

Article code
77551
EAN
7021987755113
Back to articlelist

Overview

IP Class
IP44
Mounting
Indoor / Outdoor
    5 years Warranty
  • indoor
  • outdoor
  • ip44
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77551 Mounting instruction IP44_Outlet_User Manual

How to specify

Text copied to clipboard

Outlet surface Black IP44 Double Grounded, Article code: 77551, EAN: 7021987755113, IP44, Electrical: Voltage: 250V, Nominal current: 16A, Protection: IP Class: IP44, Materials and finish: Housing: Polycarbonat (PC), Colour: Black (RAL 9004), Halogen free: Yes, Mounting/Connection: Frame: complete, Mounting: Indoor / Outdoor, Dimensions: Length (mm) L: 102, Width (mm) W: 80, Height (mm) H: 51, Weight (kg) gross/net: 0.203 / 0.174, Packaging: Packaging dimensions (mm): 102 x 80 x 51, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A

Protection

IP Class
IP44

Materials and finish

Housing
Polycarbonat (PC)
Colour
Black (RAL 9004)
Halogen free
Yes

Mounting/Connection

Frame
complete
Mounting
Indoor / Outdoor

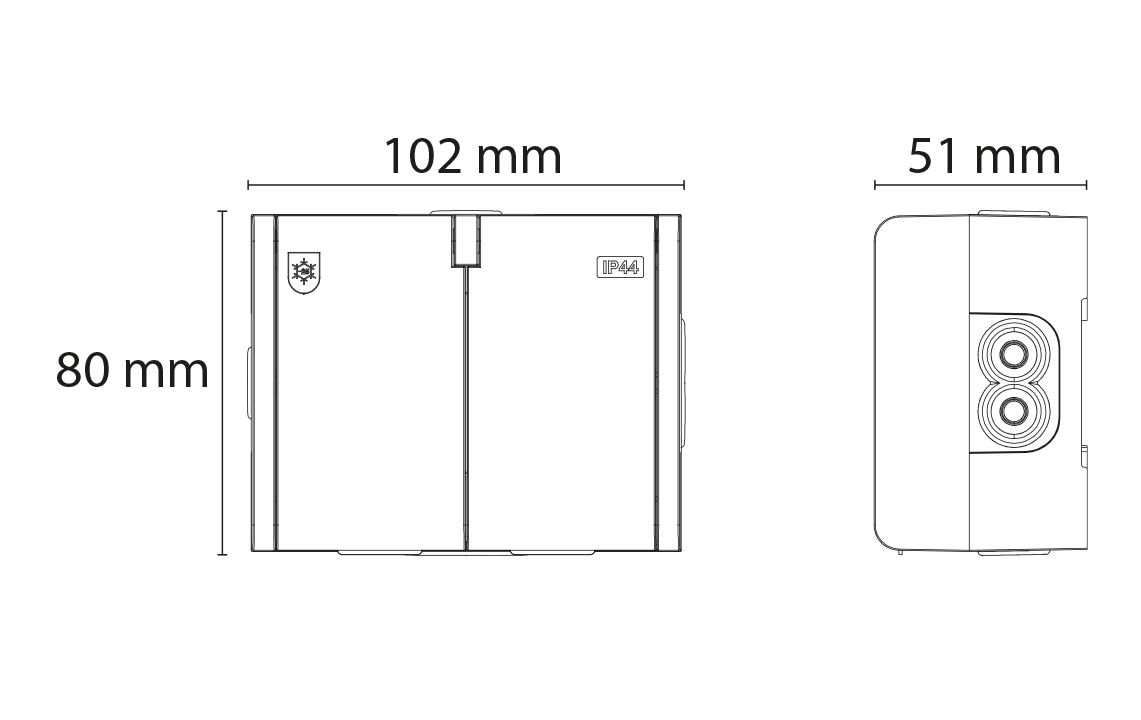

Dimensions

Length (mm) L
102
Width (mm) W
80
Height (mm) H
51
Weight (kg) gross/net
0.203 / 0.174

Packaging

Packaging dimensions (mm)
102 x 80 x 51
Number per pack
6
