Outlet, surface

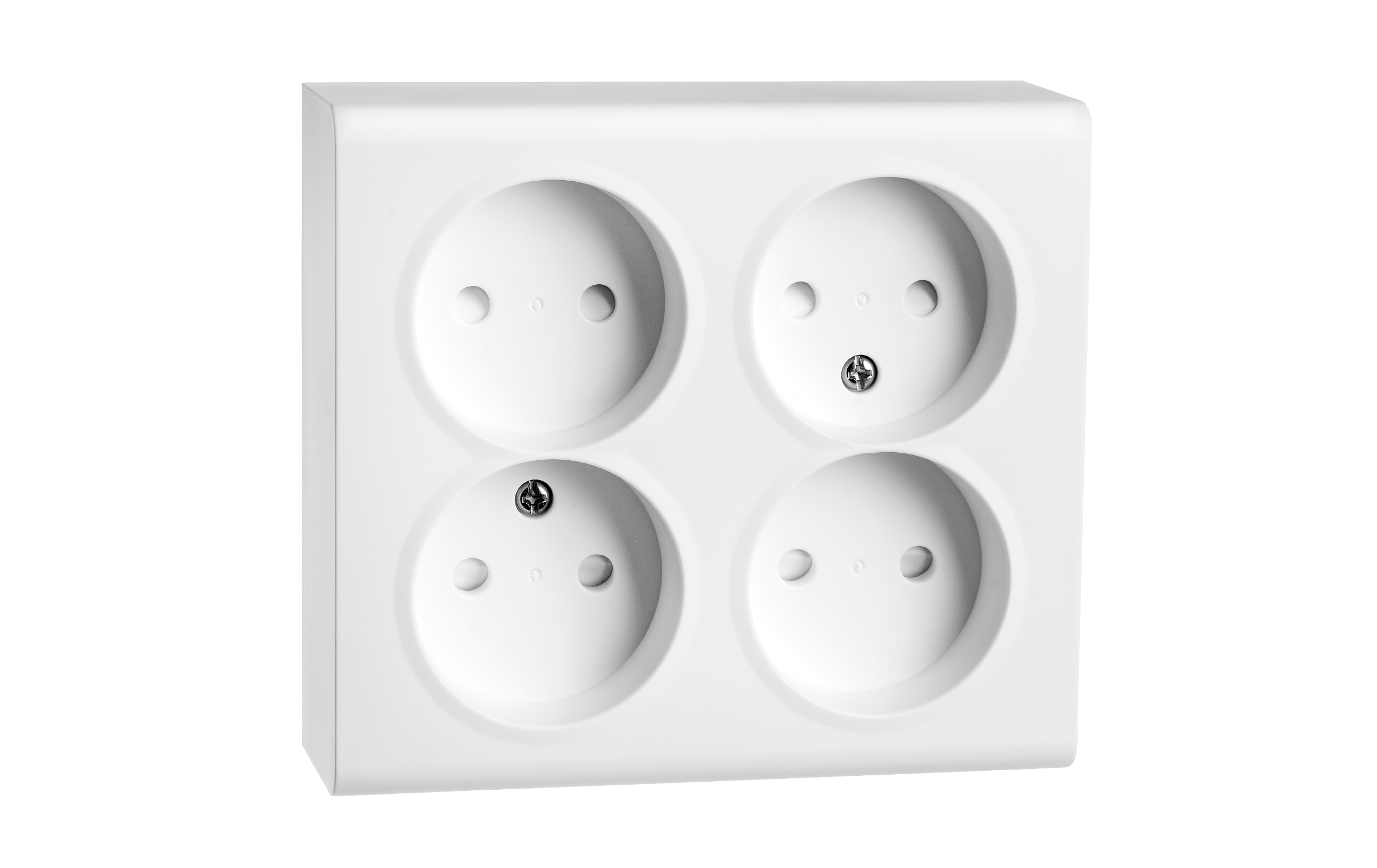

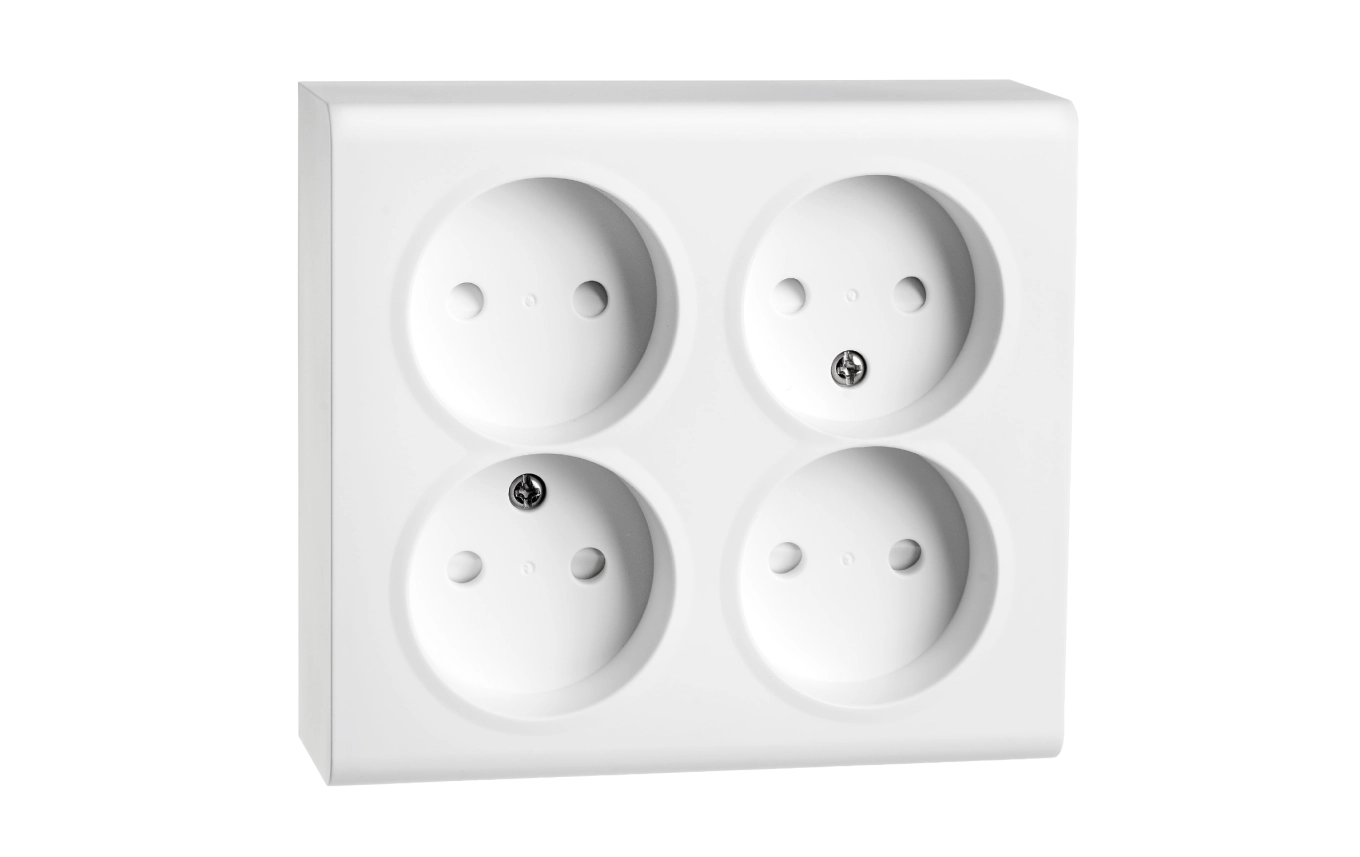

Outlet surface White 4-way without Earth

Article code
77522
EAN
7021987752211
Back to articlelist

Overview

IP Class
IP21
Mounting
Surface, Indoor
    5 years Warranty
  • indoor
  • ip21
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 77522 Mounting instruction Outlet without earth_User Manual EPD NEPD-12410-12463_4-way-Outlet-Surface-Mounted CE Declaration CE251015A_Surface schuko outlet

How to specify

Text copied to clipboard

Outlet surface White 4-way without Earth, Article code: 77522, EAN: 7021987752211, IP21, Electrical: Voltage: 250V, Nominal current: 16A, Max fuse size: 16A, Protection: IP Class: IP21, Energy and approvals: BVB: Yes, Sunda Hus: C+, Materials and finish: Housing: Polycarbonat (PC), Colour: White, Halogen free: Yes, Mounting/Connection: Extra blind connectors: No, Frame: complete, Mounting: Surface, Indoor, Max number of conductors: 4, Dimensions: Length (mm) L: 115, Width (mm) W: 104, Height (mm) H: 40, Weight (kg) gross/net: 0.23 / 0.195, Packaging: Packaging dimensions (mm): 115 x 104 x 40, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A
Max fuse size
16A

Protection

IP Class
IP21

Energy and approvals

BVB
Yes
Sunda Hus
C+

Materials and finish

Housing
Polycarbonat (PC)
Colour
White
Halogen free
Yes

Mounting/Connection

Extra blind connectors
No
Frame
complete
Mounting
Surface, Indoor
Max number of conductors
4

Dimensions

Length (mm) L
115
Width (mm) W
104
Height (mm) H
40
Weight (kg) gross/net
0.23 / 0.195

Packaging

Packaging dimensions (mm)
115 x 104 x 40
Number per pack
6
