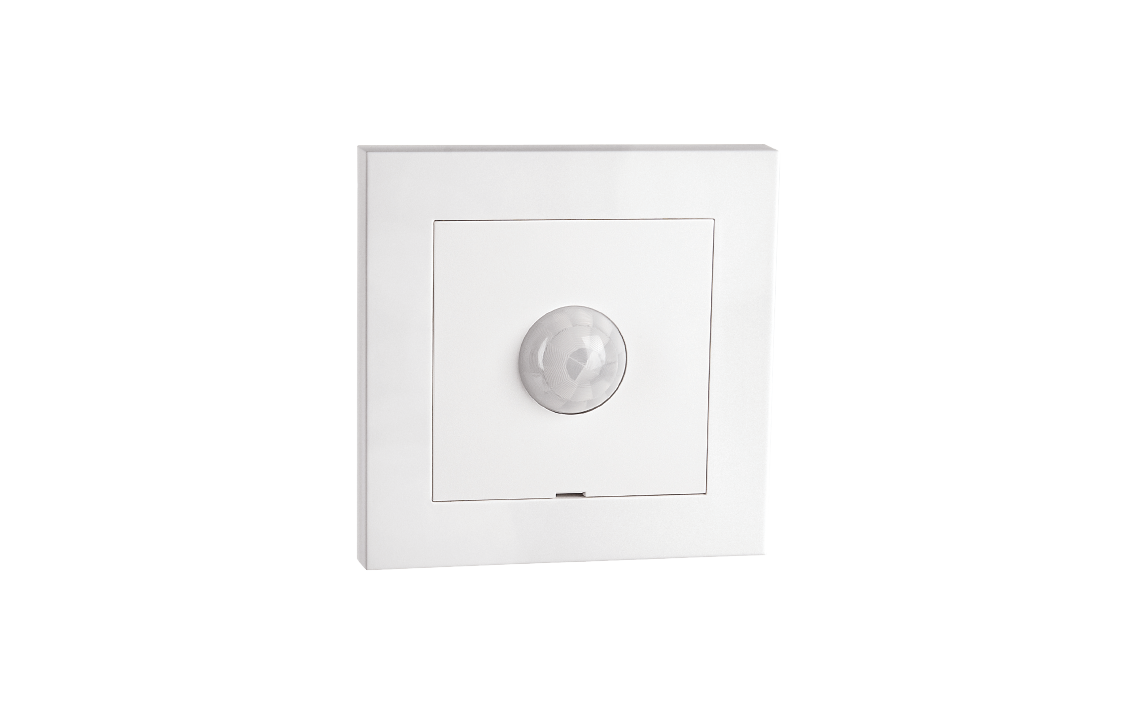

PIR Wall

PIR Wall White 200VA

SG code
820471
EAN
7021988204719

Overview

Wattage
200VA
IP Class
IP20
Mounting
Recessed, Indoor
    5 years Warranty
  • indoor
  • ip20
  • ce

Tools

How to specify

Text copied to clipboard

PIR Wall White 200VA, Article code: 820471, EAN: 7021988204719, IP20, Electrical: Wattage: 200VA, Voltage: 220-240V, Frequency (Hz): 50/60Hz, Control/Dimming: Type: PIR Sensor, Protection: IP Class: IP20, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Mounting/Connection: Mounting: Recessed, Indoor, Dimensions: Length (mm) L: 84, Width (mm) W: 84, Height (mm) H: 42, Weight (kg) gross/net: 0.074 / 0.07, Packaging: Packaging dimensions (mm): 90 x 50 x 90

Electrical

Wattage
200VA
Voltage
220-240V
Frequency (Hz)
50/60Hz

Control/Dimming

Type
PIR Sensor

Protection

IP Class
IP20

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)

Mounting/Connection

Mounting
Recessed, Indoor

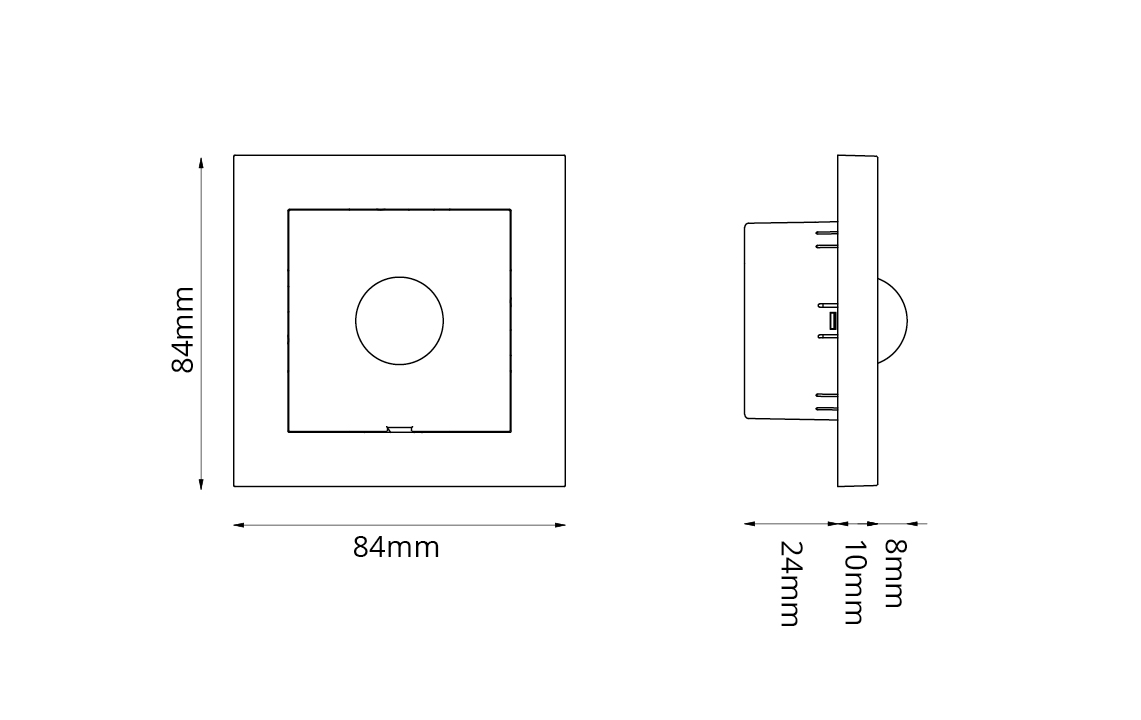

Dimensions

Length (mm) L
84
Width (mm) W
84
Height (mm) H
42
Weight (kg) gross/net
0.074 / 0.07

Packaging

Packaging dimensions (mm)
90 x 50 x 90
