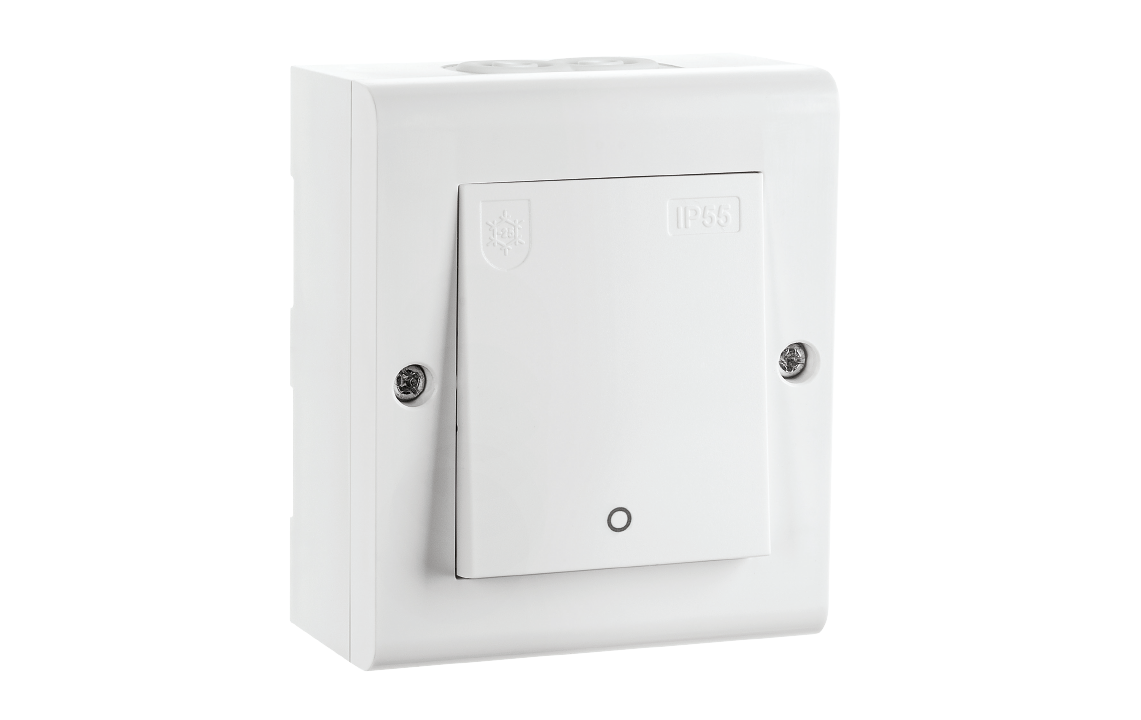

Switch, surface outdoor IP55

Switch surface White IP55

SG code
76580
EAN
7021987658018
Back to articlelist

Overview

IP Class
IP55
Mounting
Indoor / Outdoor
    5 years Warranty
  • indoor
  • outdoor
  • ip55
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 76580 Mounting instruction Switch IP55_User Manual EPD NEPD-11890-11844_Switch-surface-mounted-IP55 CE Declaration CE251103A_IP55 switch NO

How to specify

Text copied to clipboard

Switch surface White IP55, Article code: 76580, EAN: 7021987658018, IP55, Electrical: Voltage: 250V, Nominal current: 16A, Switching current for fluorescent lamps: 10A, Protection: IP Class: IP55, Materials and finish: Housing: Polycarbonat (PC), Colour: White (RAL 9003), Halogen free: Yes, Mounting/Connection: Frame: complete, Mounting: Indoor / Outdoor, Dimensions: Length (mm) L: 84, Width (mm) W: 71, Height (mm) H: 44, Weight (kg) gross/net: 0.116 / 0.115, Packaging: Packaging dimensions (mm): 84 x 71 x 44, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A
Switching current for fluorescent lamps
10A

Protection

IP Class
IP55

Materials and finish

Housing
Polycarbonat (PC)
Colour
White (RAL 9003)
Halogen free
Yes

Mounting/Connection

Frame
complete
Mounting
Indoor / Outdoor

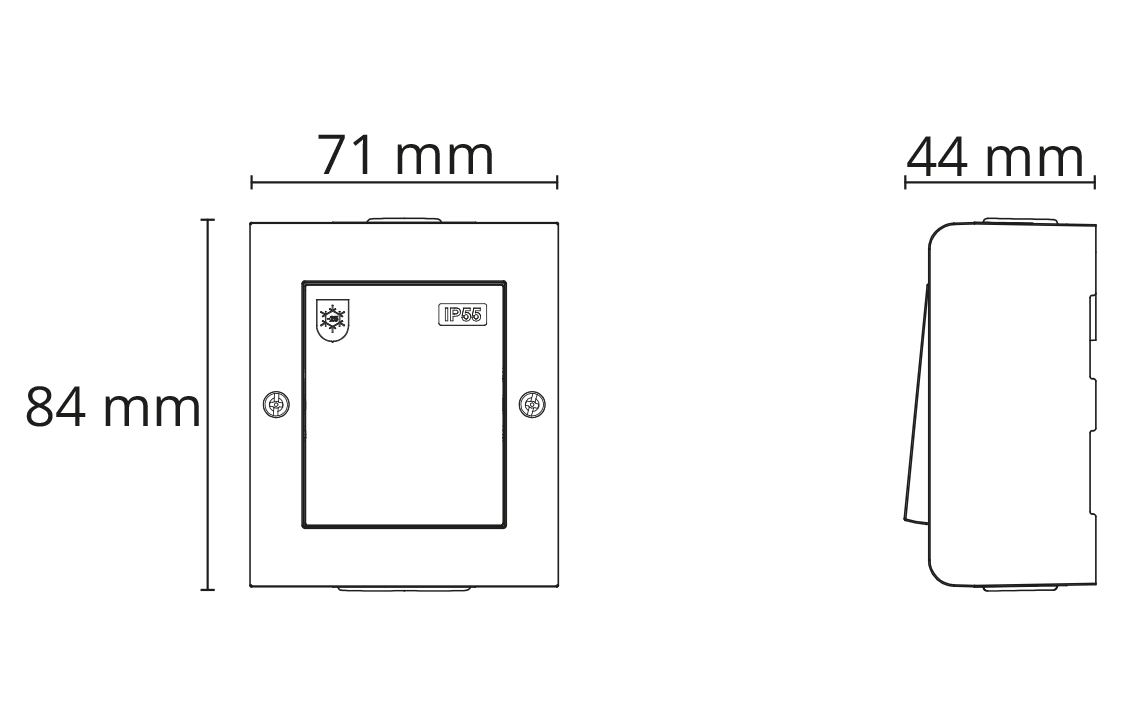

Dimensions

Length (mm) L
84
Width (mm) W
71
Height (mm) H
44
Weight (kg) gross/net
0.116 / 0.115

Packaging

Packaging dimensions (mm)
84 x 71 x 44
Number per pack
6
