Switch, surface outdoor IP55

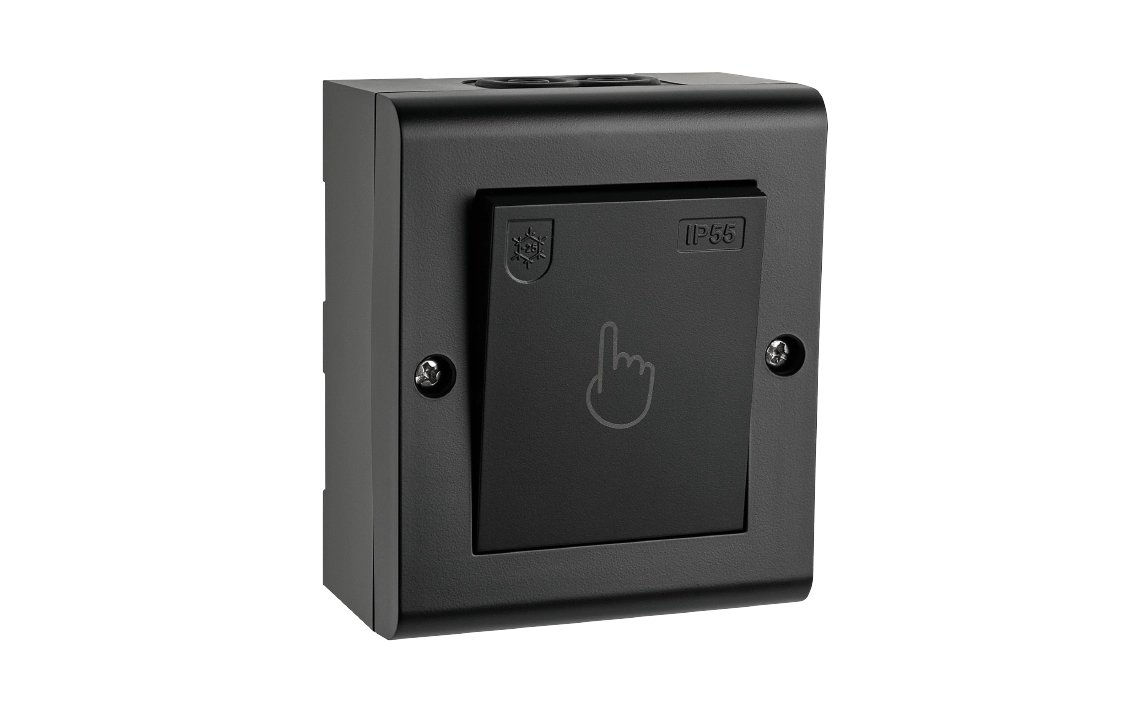

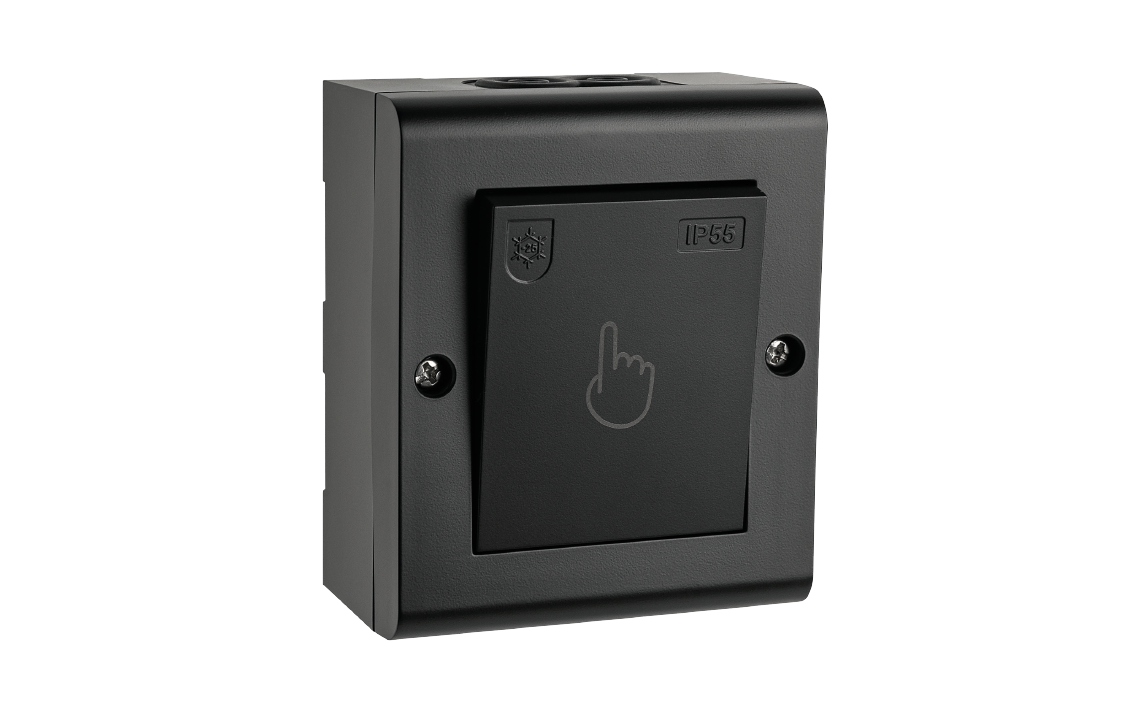

Switch surface Black IP55 Impulse

SG code
76691
EAN
7021987669113
Back to articlelist

Overview

IP Class
IP55
Mounting
Indoor / Outdoor
    5 years Warranty
  • indoor
  • outdoor
  • ip55
  • ce
  • nemko
  • semko
  • fimko

Tools

Downloads

Specification sheet 76691 Mounting instruction Switch IP55 Push_User Manual EPD NEPD-11890-11844_Switch-surface-mounted-IP55 CE Declaration CE251103A_IP55 switch NO

How to specify

Text copied to clipboard

Switch surface Black IP55 Impulse, Article code: 76691, EAN: 7021987669113, IP55, Electrical: Voltage: 250V, Nominal current: 16A, Protection: IP Class: IP55, Materials and finish: Housing: Polycarbonat (PC), Colour: Black (RAL 9004), Halogen free: Yes, Mounting/Connection: Mounting: Indoor / Outdoor, Dimensions: Length (mm) L: 84, Width (mm) W: 71, Height (mm) H: 44, Weight (kg) gross/net: 0.112 / 0.111, Packaging: Packaging dimensions (mm): 84 x 71 x 44, Number per pack: 6

Electrical

Voltage
250V
Nominal current
16A

Protection

IP Class
IP55

Materials and finish

Housing
Polycarbonat (PC)
Colour
Black (RAL 9004)
Halogen free
Yes

Mounting/Connection

Mounting
Indoor / Outdoor

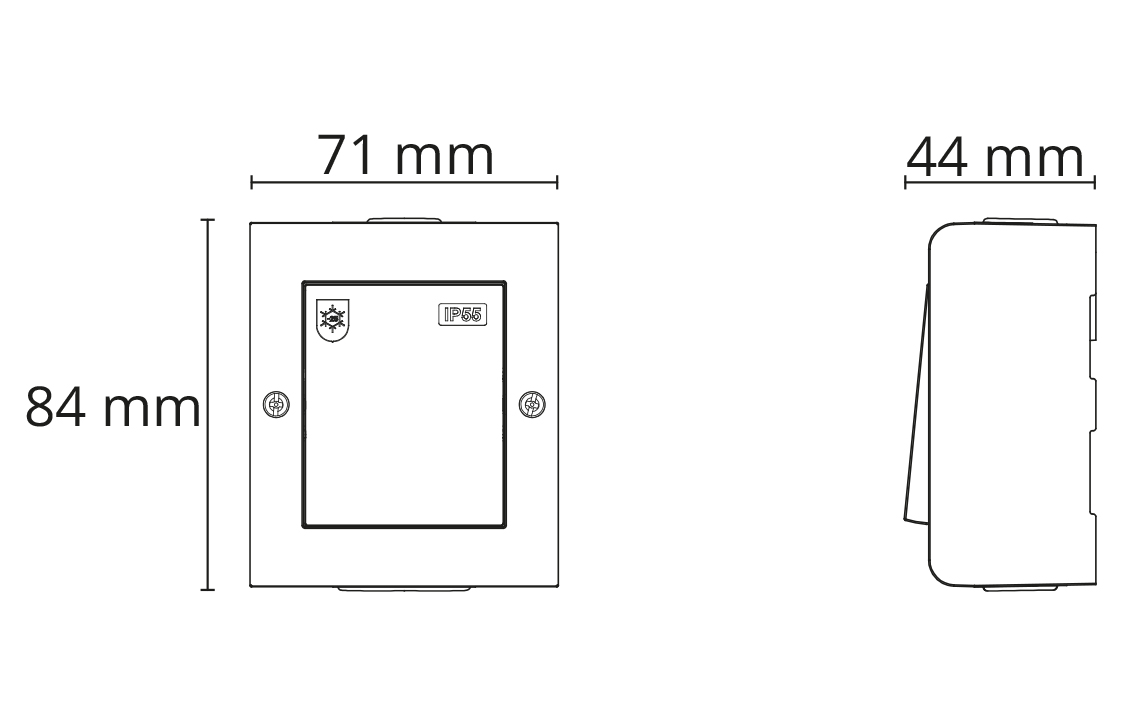

Dimensions

Length (mm) L
84
Width (mm) W
71
Height (mm) H
44
Weight (kg) gross/net
0.112 / 0.111

Packaging

Packaging dimensions (mm)
84 x 71 x 44
Number per pack
6
