Exclusive Midi

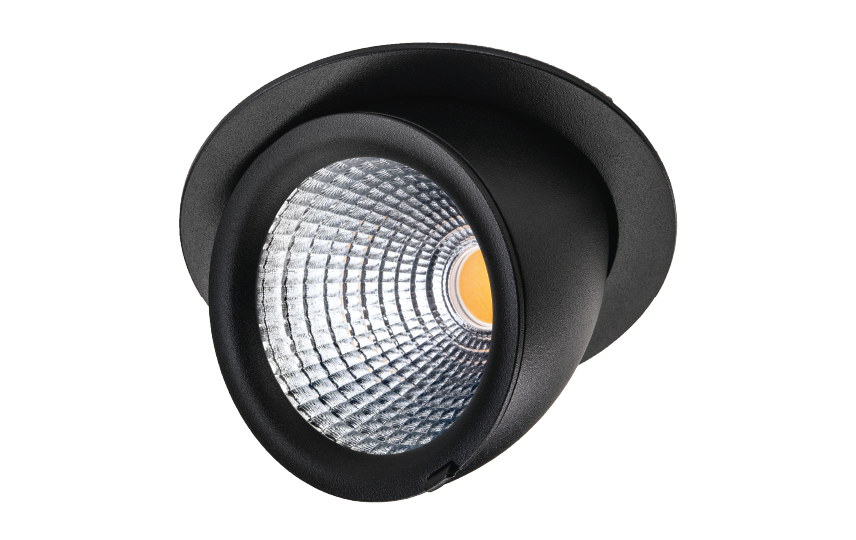

Exclusive Midi Black 2610lm 3000K Ra>90 Trailing edge

Article code
902628
EAN
7021989026280
Back to articlelist

Overview

Efficacy
100 lm/W
Lumen
2610lm
IP Class
IP44/IP20
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
Lifetime
100,000 L90/B10>
Mounting
Recessed, Indoor / Outdoor
    5 years corrosion warranty 5 years Warranty
  • indoor
  • outdoor
  • dipswitch
  • ip44ip20
  • tilt60
  • klasse_2
  • ce

Tools

Downloads

Specification sheet 902628 Mounting instruction Exclusive Midi_User manual EPD NEPD-11016-9969_Exclusive-Midi CE Declaration Exclusive Midi Relux file (rolf) 7021989026280_Exclusive_Midi_Black_2610lm_3000K_Ra_90_Trailing_edge_dimming Eulumdat file (ldt) 7021989026280_Exclusive Midi Black 2610lm 3000K Ra90-49274 Dialux file (uld) 7021989026280_Exclusive Midi Black 2610lm 3000K Ra90 Revit file - Generic Exclusive Midi - generic Revit file - Ceiling Based Exclusive Midi - ceiling based

How to specify

Text copied to clipboard

Exclusive Midi Black 2610lm 3000K Ra>90 Trailing edge, Article code: 902628, EAN: 7021989026280, IP44/IP20, Electrical: System wattage: 26W, Voltage: 220-240V, Max. luminaires per circuit breaker: B10: 25, B16: 41, C10: 25, C16: 41, Light technic: Type of light source: LED, Luminous flux: 2610lm, Efficacy: 100 lm/W, Colour temperature: 3000K, Colour rendering (Ra): Ra>90, MacAdams factor: SDCM: 2, Lifetime: L90/B10>100,000, Light distribution: Direct, Optic: Reflector, Beam angle: 40°, Control/Dimming: Type: Trailing edge, Protection: Luminaire class: Class II, IP Class: IP44/IP20, Energy and approvals: Contains light source of energy class: E, Breeam: Fulfils Hea 01 for flicker free lighting, BVB: Yes, Materials and finish: Housing: Aluminium, Colour: Black (RAL 9004), Optics: Tempered glass, Mounting/Connection: Mounting: Recessed, Indoor / Outdoor, Connection: Screwless terminal block, Dimensions: Height (mm) H: 88, Diameter (mm) D: 114, Cut-out (mm): 102, Weight (kg) gross/net: 0.98 / 0.801, Packaging: Packaging dimensions (mm): 175 x 142 x 100

Electrical

System wattage
26W
Voltage
220-240V
Max. luminaires per circuit breaker
B10: 25, B16: 41, C10: 25, C16: 41

Light technic

Type of light source
LED
Luminous flux
2610lm
Efficacy
100 lm/W
Colour temperature
3000K
Colour rendering (Ra)
Ra>90
MacAdams factor
SDCM: 2
Lifetime
L90/B10>100,000
Light distribution
Direct
Optic
Reflector
Beam angle
40°

Control/Dimming

Type
Trailing edge

Protection

Luminaire class
Class II
IP Class
IP44/IP20

Energy and approvals

Contains light source of energy class
E
Breeam
Fulfils Hea 01 for flicker free lighting
BVB
Yes

Materials and finish

Housing
Aluminium
Colour
Black (RAL 9004)
Optics
Tempered glass

Mounting/Connection

Mounting
Recessed, Indoor / Outdoor
Connection
Screwless terminal block

Dimensions

Height (mm) H
88
Diameter (mm) D
114
Cut-out (mm)
102
Weight (kg) gross/net
0.98 / 0.801

Packaging

Packaging dimensions (mm)
175 x 142 x 100
