Exclusive Midi

Exclusive Midi Black 2610lm 3000K Ra>90 DALI-2 / Push Dim

Article code: 902629
EAN: 7021989026297

Back to articlelist

Overview

Efficacy: 100 lm/W
Lumen: 2610lm
IP Class: IP44/IP20
Colour temperature: 3000K
Colour rendering (Ra): Ra>90

Lifetime: 100,000 L90/B10>
Mounting: Recessed, Indoor / Outdoor

5 years corrosion warranty

5 years Warranty

Tools

Downloads

Specification sheet Mounting instruction Eulumdat file (ldt)

See more

Dialux file (uld) Relux file (rolf) EPD Revit file - Generic Revit file - Ceiling Based CE Declaration

Electrical

System wattage: 26W
Voltage: 220-240V
Max. luminaires per circuit breaker: B10: 35, B16: 55, C10: 55, C16: 80

Light technic

Type of light source: LED
Luminous flux: 2610lm
Efficacy: 100 lm/W
Colour temperature: 3000K
Colour rendering (Ra): Ra>90
MacAdams factor: SDCM: 2
Lifetime: L90/B10>100,000

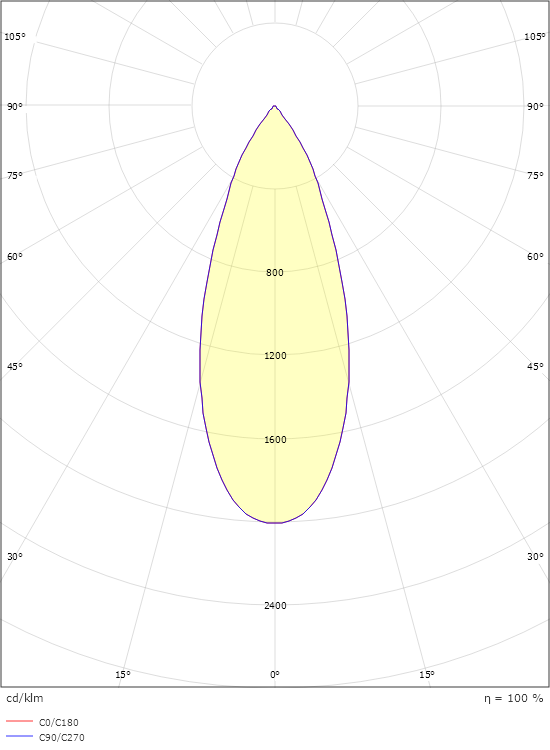

Light distribution: Direct
Optic: Reflector
Beam angle: 40°

Control/Dimming

Type: DALI-2 / Push Dim

Protection

Luminaire class: Class II
IP Class: IP44/IP20

Energy and approvals

Contains light source of energy class: E
Breeam: Fulfils Hea 01 for flicker free lighting
BVB: Yes

Materials and finish

Housing: Aluminium
Colour: Black (RAL 9004)
Optics: Tempered glass

Mounting/Connection

Mounting: Recessed, Indoor / Outdoor
Connection: 5 pol Linect / screwless terminal block

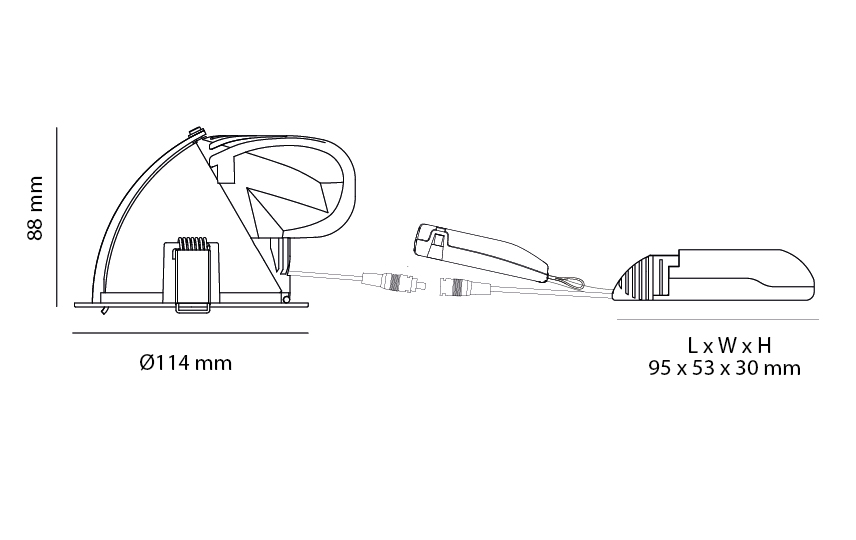

Dimensions

Height (mm) H: 88
Diameter (mm) D: 114
Cut-out (mm): 102
Weight (kg) gross/net: 0.98 / 0.859

Packaging

Packaging dimensions (mm): 142 x 142 x 140
